· Equipped with a reliable StageV/EPA4 engine
· European hydrostatic transmission system (HST + 2 axles)
· Quick hitch for fast attachment changes
Engine Power
18.4kWMax. loading capacity
1500kgNet Weight
2665kg

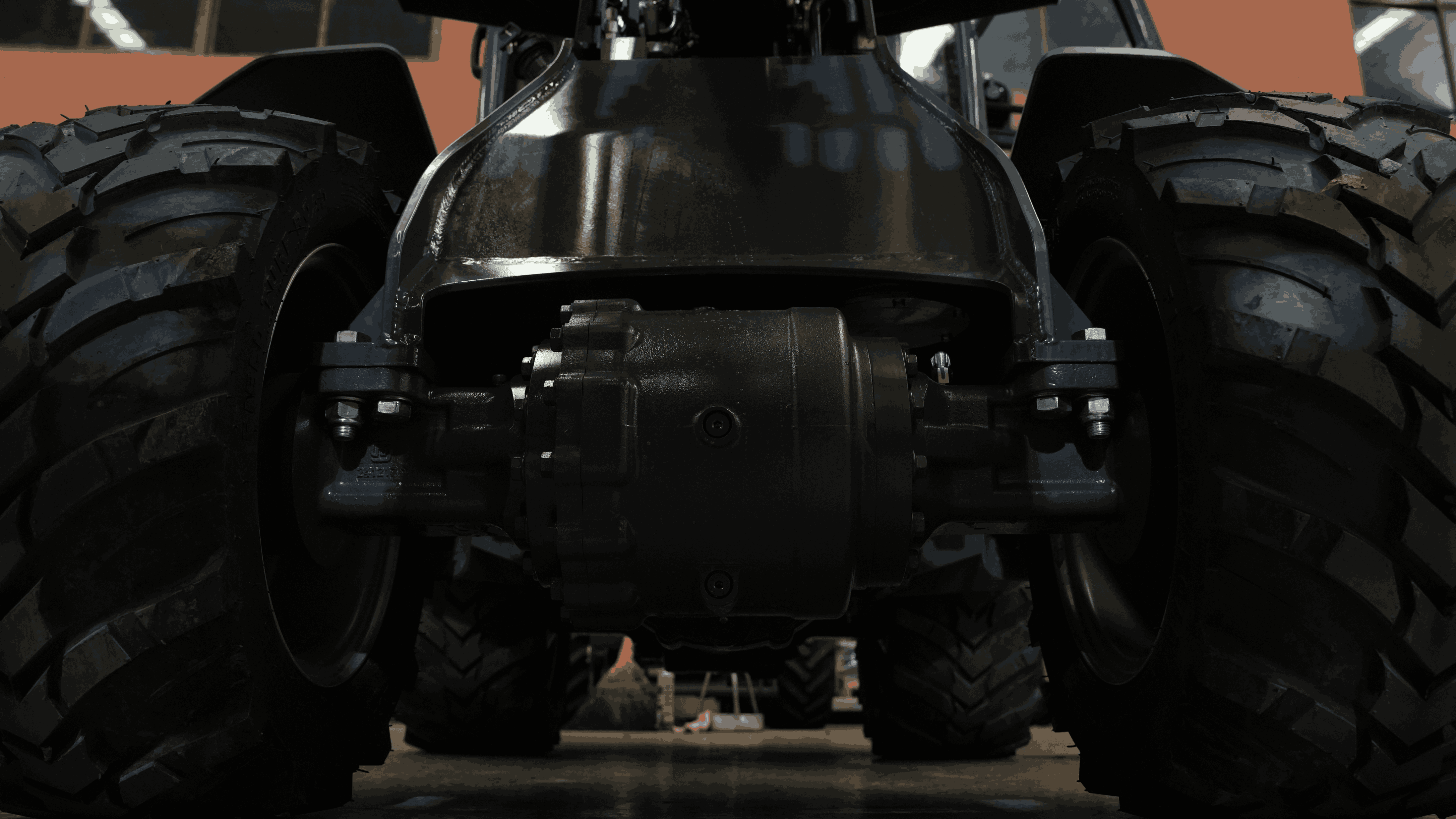

1. Integrated Wet Axle Service & Parking Brake

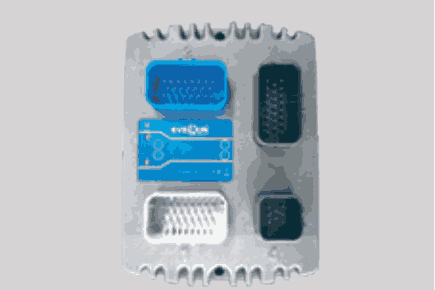

2. Central controller VCU
3. Loader cab tipping device

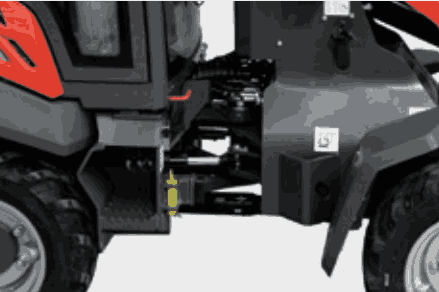

4. Articulated pendulum joint

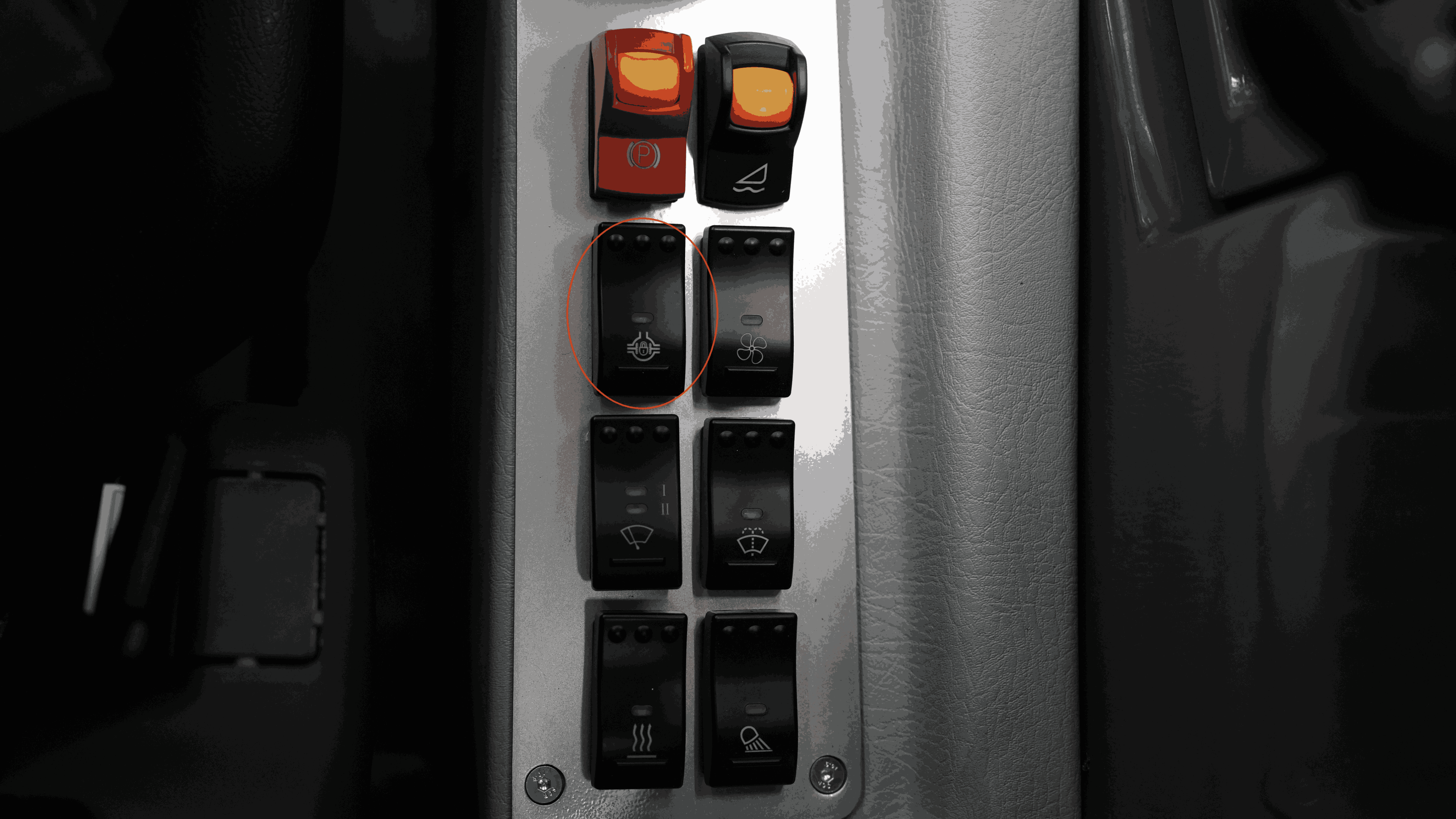

5. Front & Rear Axles Differential Locks

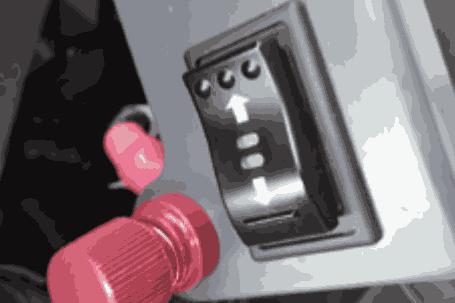

6. Electronic parking brake

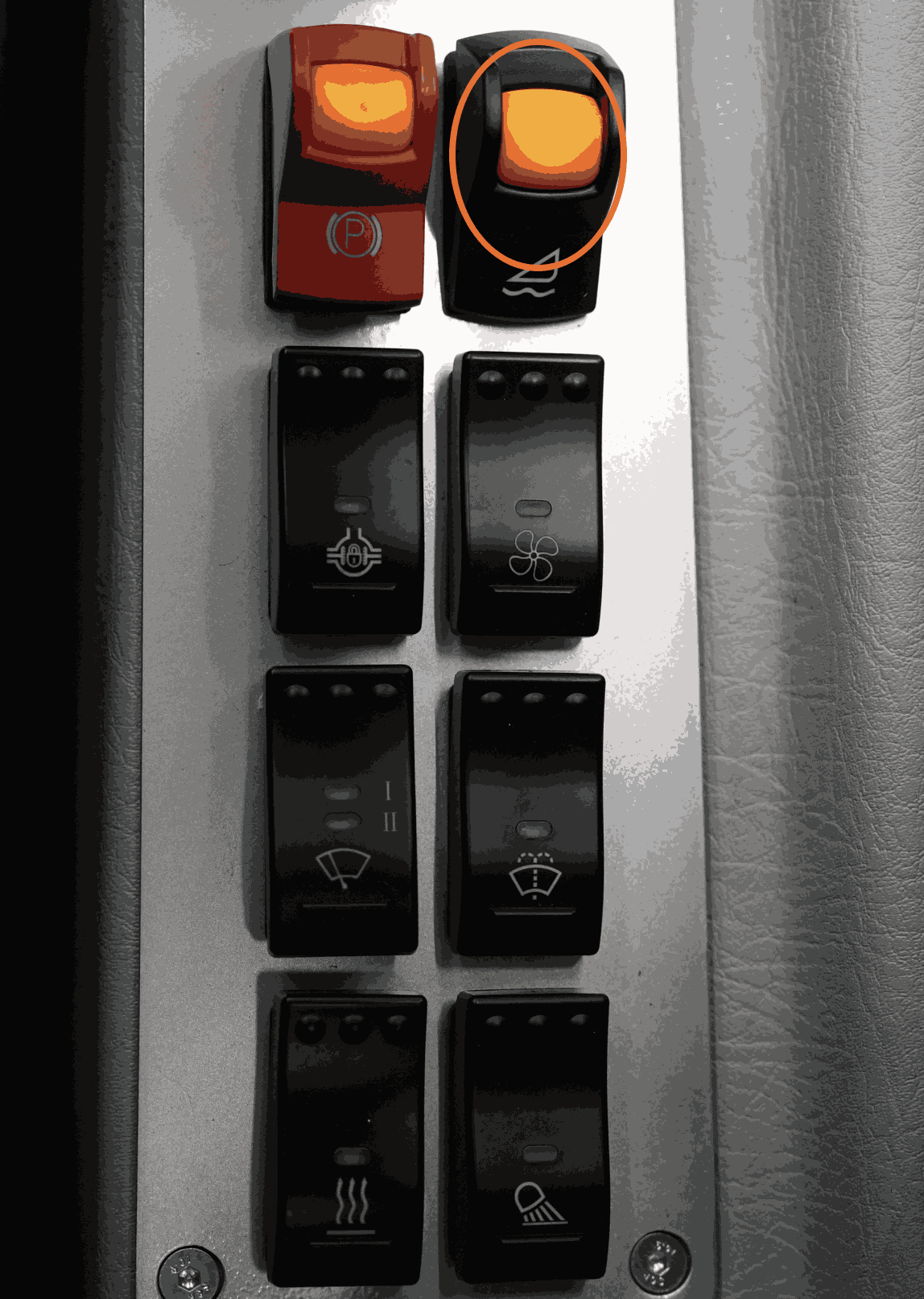

7. ELectric floating function

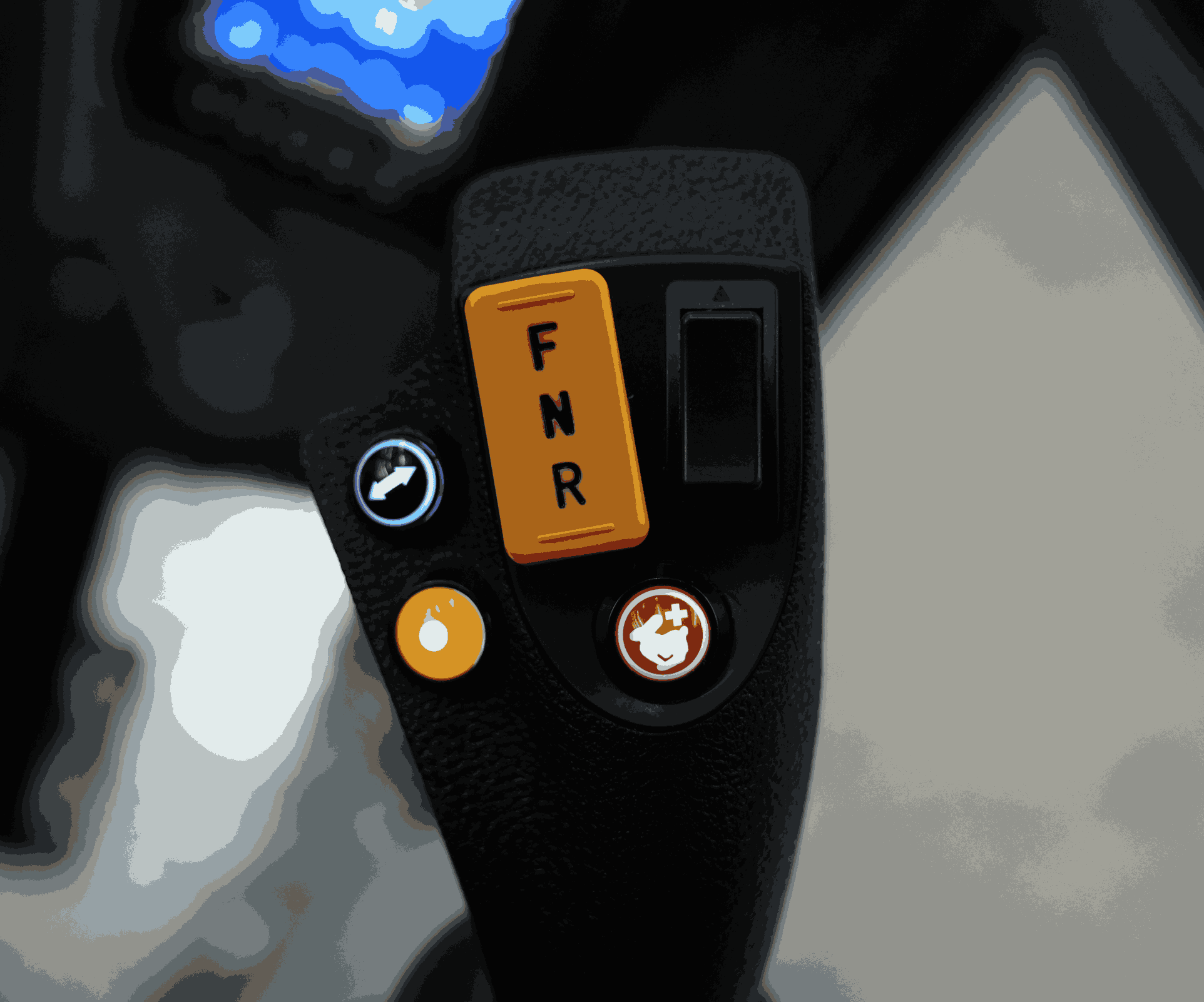

8. Hydraulic Joystick

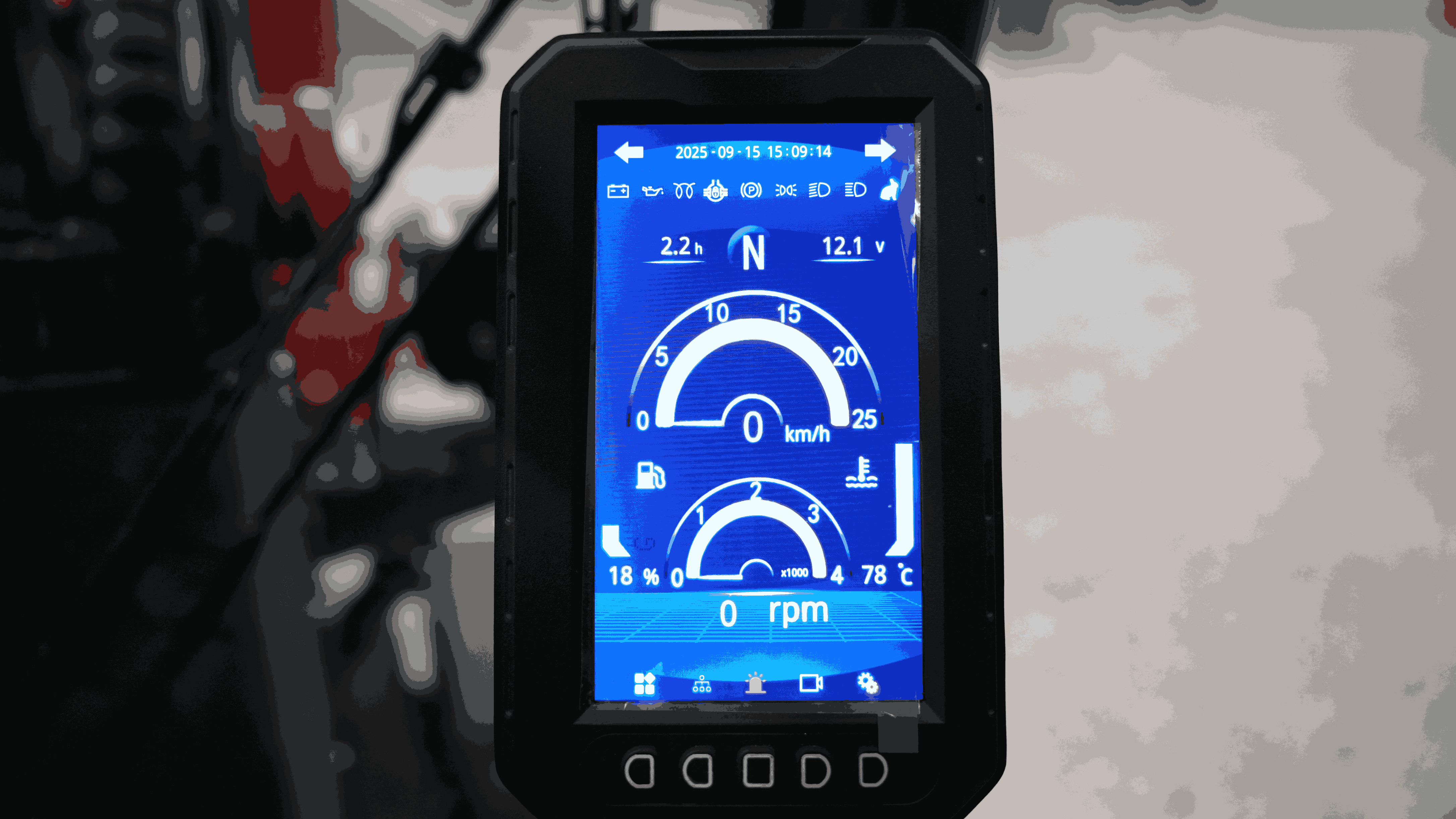

9. HD LED Display
| Net Weight | 2665/2785kg |
| Max. Loading Capcity (tipping load) | 1500kg |
| Overall Dimension (L×W×H) | 3900×1215×2380mm |
| Max. Lifting Height of shovel pivot pin | 2730mm |
| Wheelbase | 1460mm |
| Min. Turning Radius(Outside) | 1150mm/2400(without bucket) |
| Engine Manufacturer | Perkins |
| Engine Model | 403J-11T |
| Displacement | 1131ccm |
| Engine Power | 18.4（25）kW(HP) |
| Type of Coolant | Water Cooling |
| Number of Cylinders | 3 |
| Rated Speed | 3000r/min |
| Gear Shift | Electric |
| Max Driving speed | 16km/h |
| Drive Pump Rated Pressure | 400bar |
| Working Pump Rated Flow | 36L/min |
| Working Pump Rated Pressure | 230bar |
| Steering Type | Articulated Steering |
| Steering Cylinder | 2 |
| Max. Turning Angle | 45° |
| Min. Turning Radius(Inner/Outer) | 1100/2610(without bucket)mm |
| Service Brake | Wet brake |
| Parking Brake | Electric parking brake |
| Tire Specifications | 25×11.50-14 |
