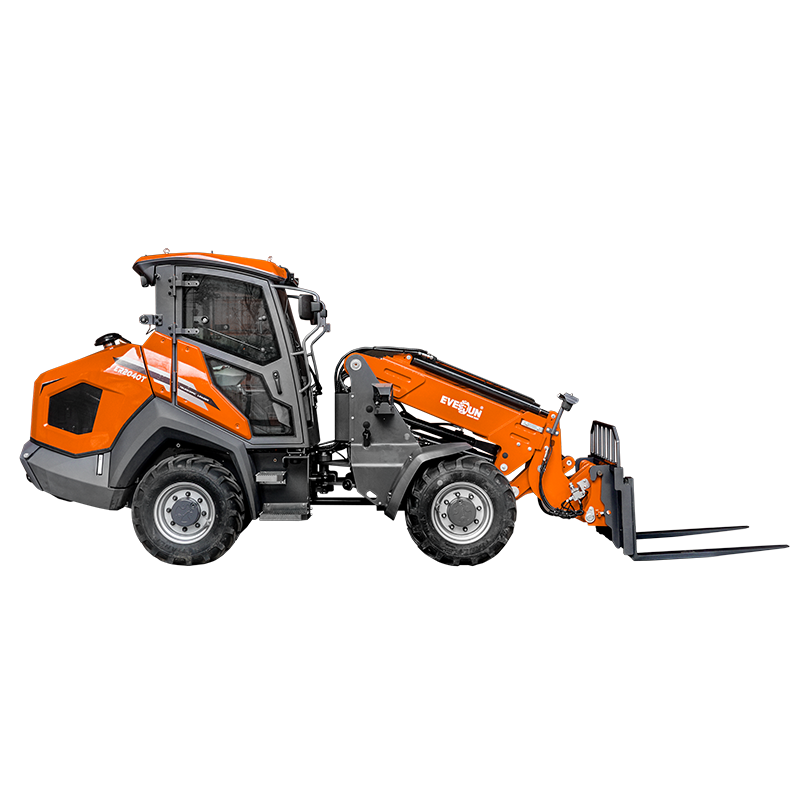

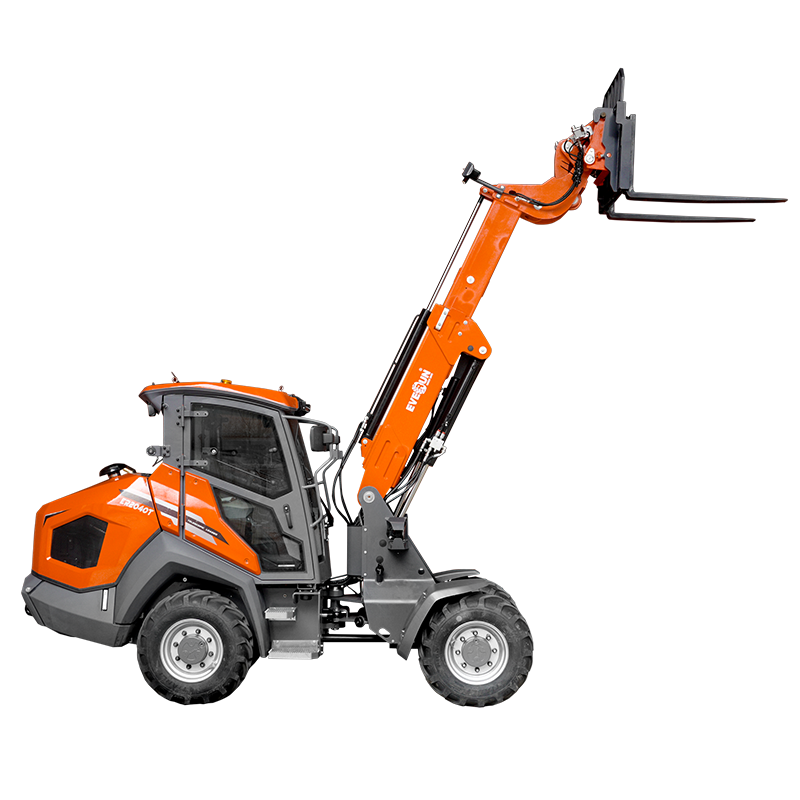

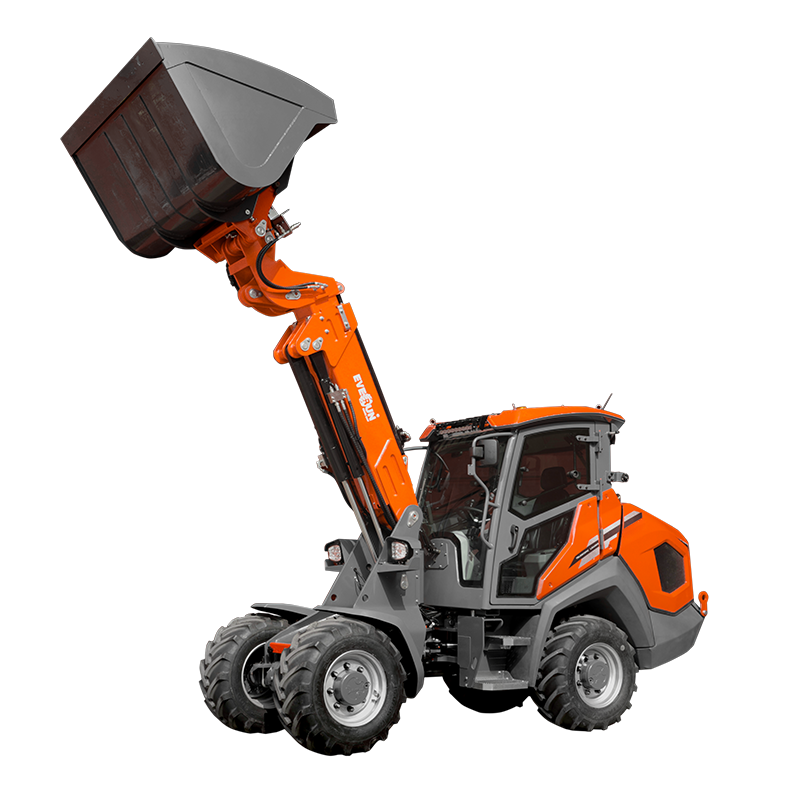

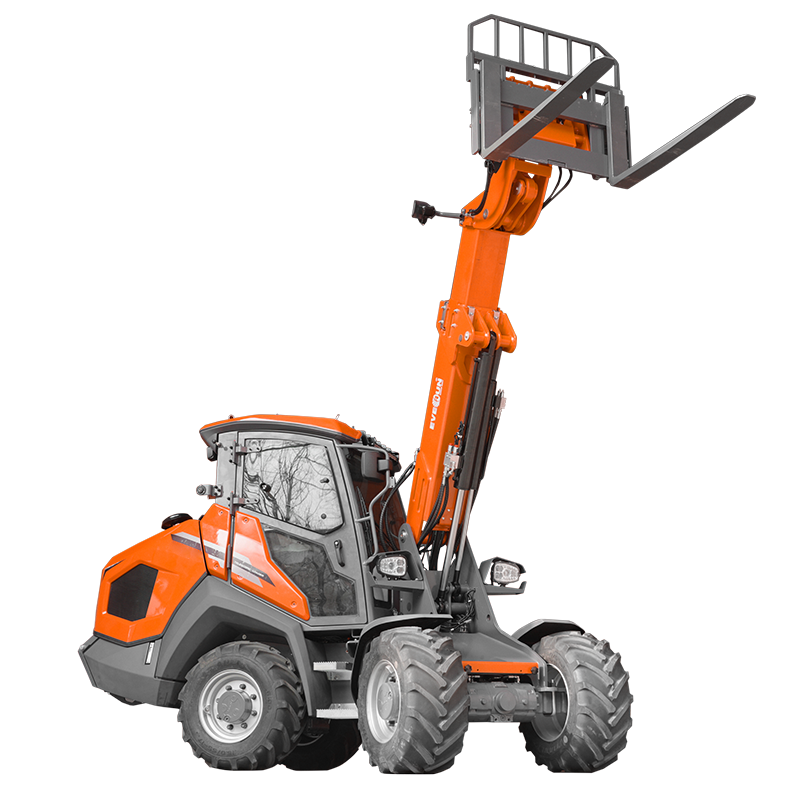

ERW2640T is a robust telescopic loader with a 2600kg lifting capacity and a 4220mm lifting height. It offers high maneuverability, excellent stability, and powerful lifting force. It is designed for demanding applications in both the agricultural and construction sectors.
Engine Rated Power
45 kWMax. Loading Capcity (tipping load)
2600kgMax.Lifting Height (pivot)
4220 mm
1. Standard Perkins Engine which meets Stage V & EPA Tier 4F emission standards.
2. European brand hydrostatic system ensures smooth, precise power transmission.
3. Intergrated overload alarm system protects both the machine and the operator.
4. Wet brake axle for stable braking performance.
5. Electric Proportional Joystick leads to smoother and more precise operation.
6. Articulated pendulum joint ensure excellent oscillation angles.
7. Max. driving speed:36 km/h boosts productivity.
8. Differential Lock.
9. Electric Floating Function.
10. Hand Throttle.
11. Hydraulic Inching Function.
12. Button Start, Bluetooth Key.
13. The vertical lifting cabin is more convenient for maintenance.
14. The joystick is mounted on the armrest that moves with the seat, this design is more comfortable and easier to operate.
| Max. Loading Capcity (tipping load) | 2600kg |
| Net Weight | 4300kg |
| Overall Dimension (L×W×H) | 4755×1520×2434mm |
| Max. Lifting Height of shovel pivot pin | 4220mm |
| Wheelbase | 2140mm |
| Min. Turning Radius(Outside) | 3618mm |
| Engine Manufacturer | Perkins |
| Engine Model | 404J-E22T |
| Engine Power | 45(61.2)kW(HP) |
| Type of Coolant | Water Cooling |
| Number of Cylinders | 4 |
| Rated Speed | 2800r/min |
| Transmission Type | HST+2 Axles |
| Gear Shift | Electric |
| Max Driving speed | 32km/h |
| Drive Pump Rated Pressure | 350bar |
| Working Pump Rated Flow | 52 |
| Working Pump Rated Pressure | 215bar |
| Steering Type | Articulated Steering |
| Steering Cylinder | 2 |
| Max. Turning Angle | 45° |
| Min. Turning Radius(Inner/Outer) | 1823/3618(without bucket)mm |
| Service Brake | Wet brake |
| Parking Brake | Electric parking brake |
| Tire Specifications | 15.0/55-17 |
