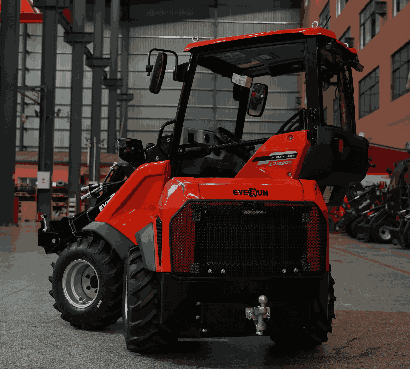

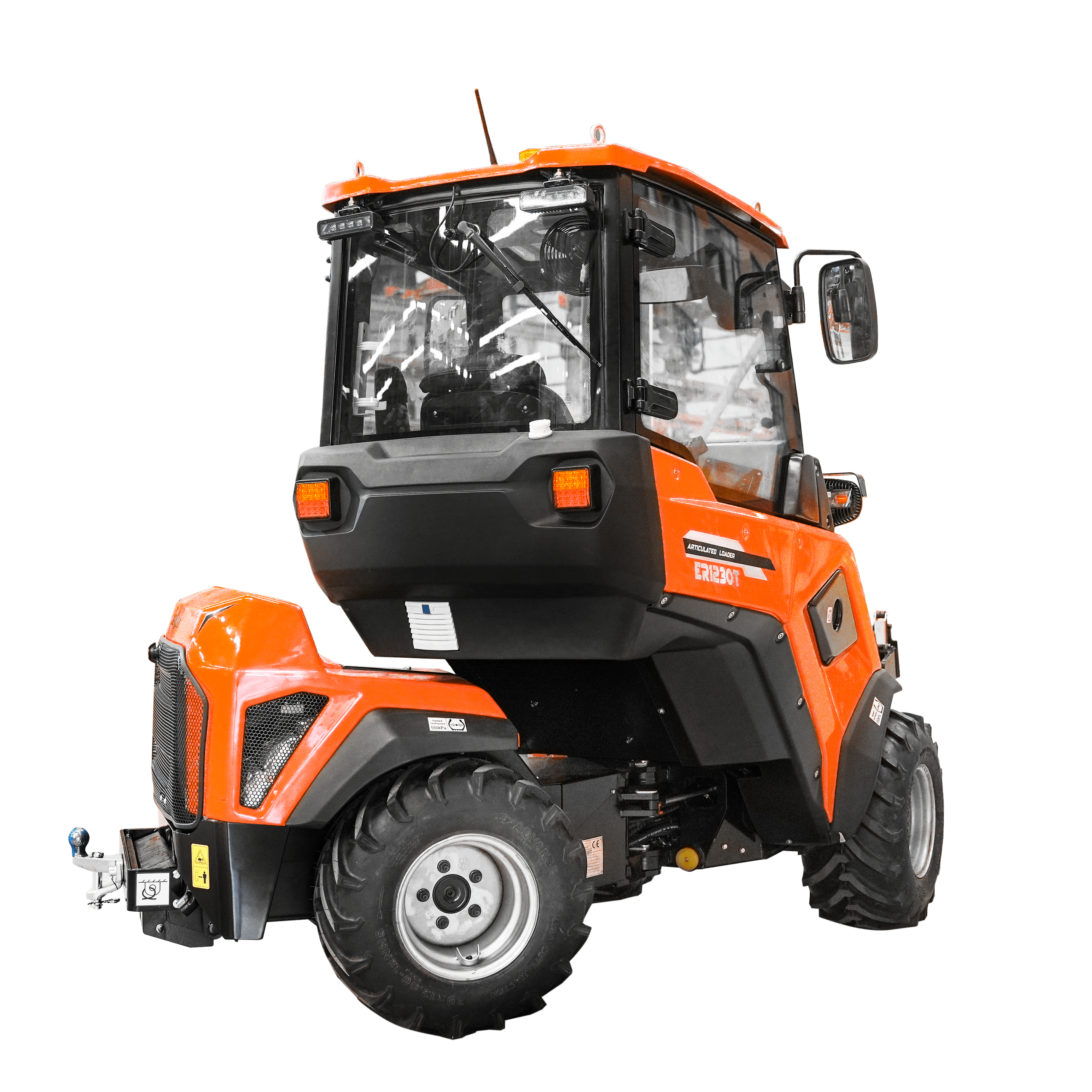

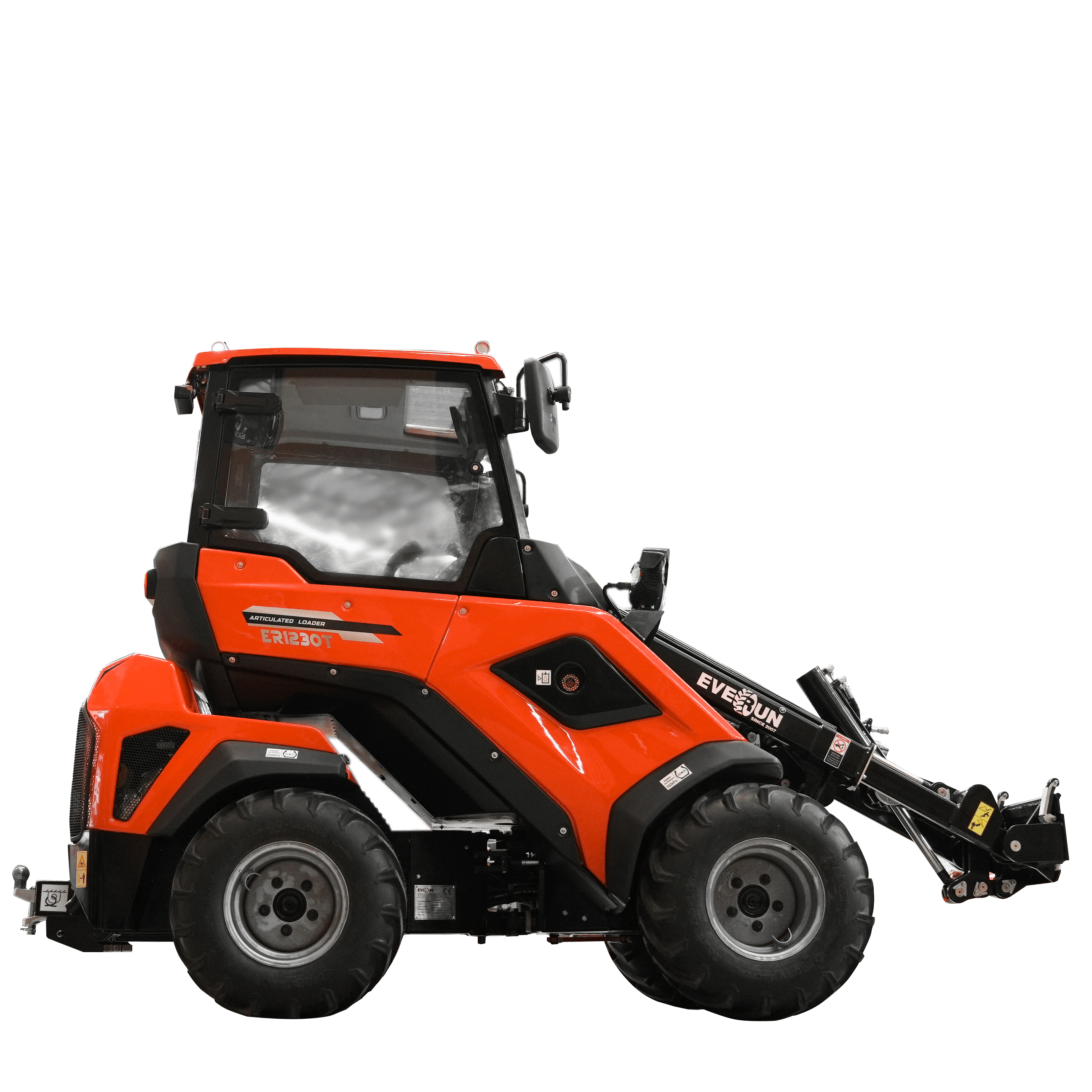

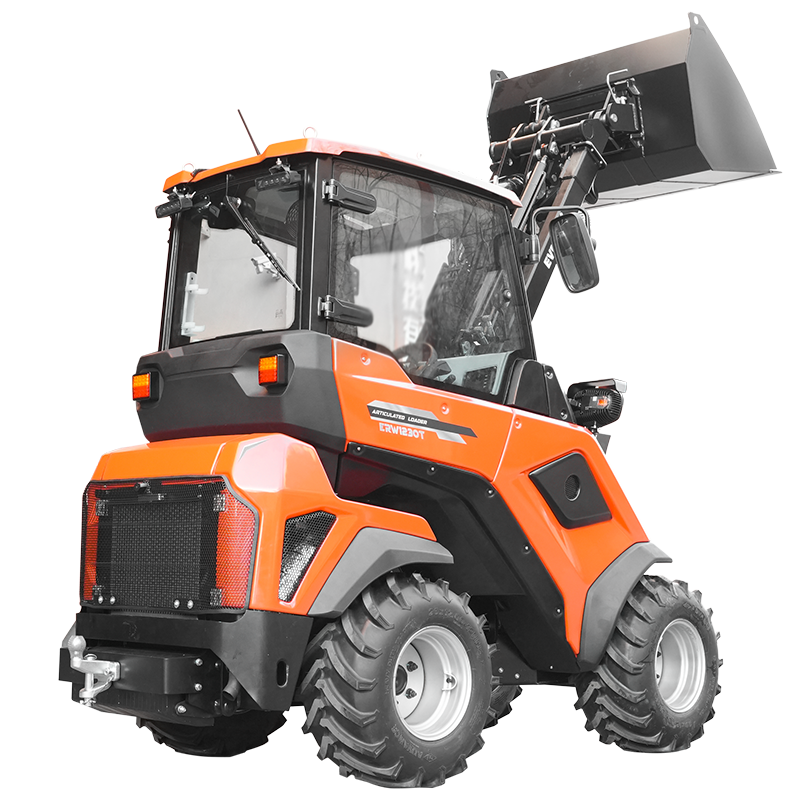

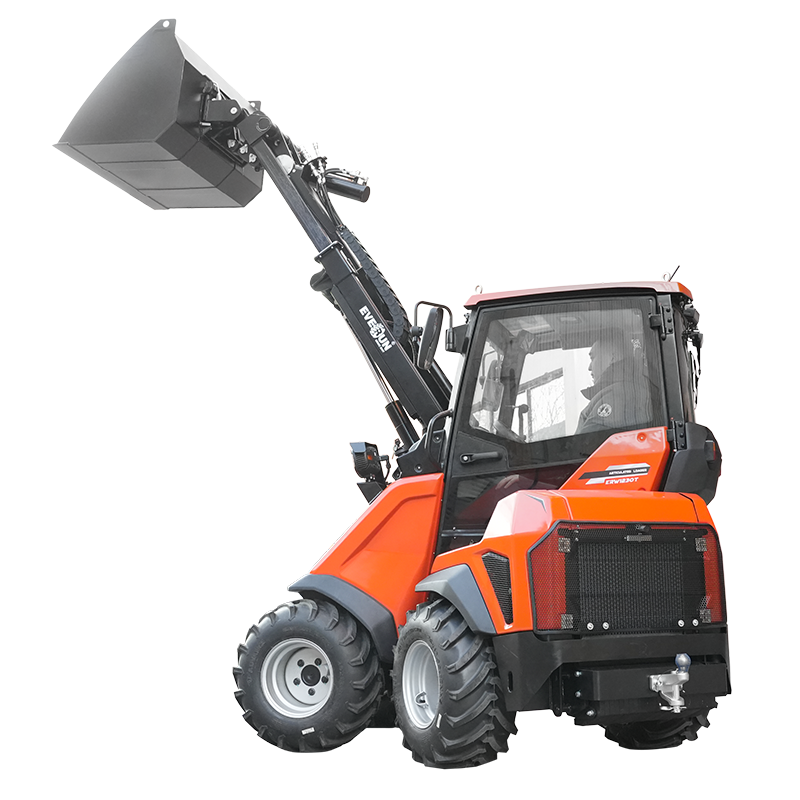

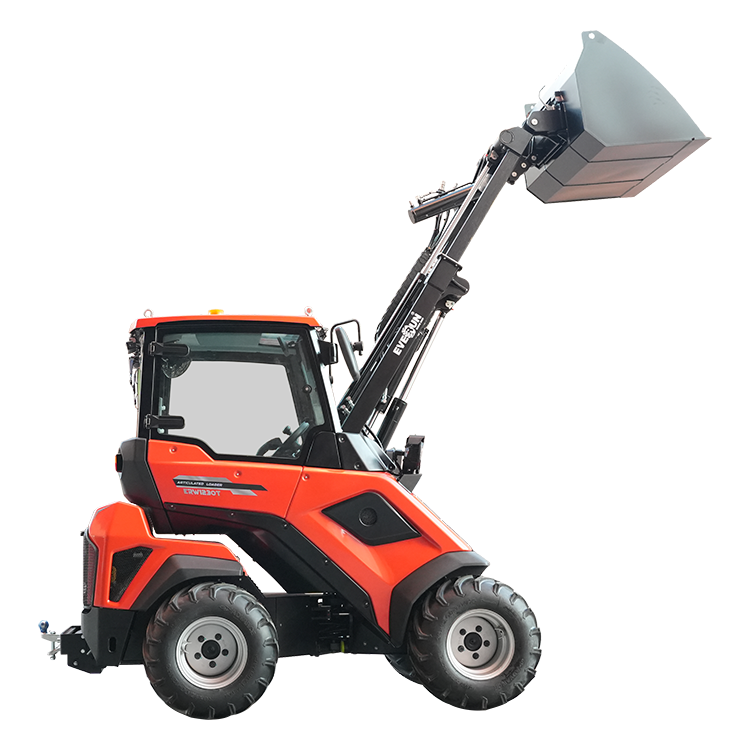

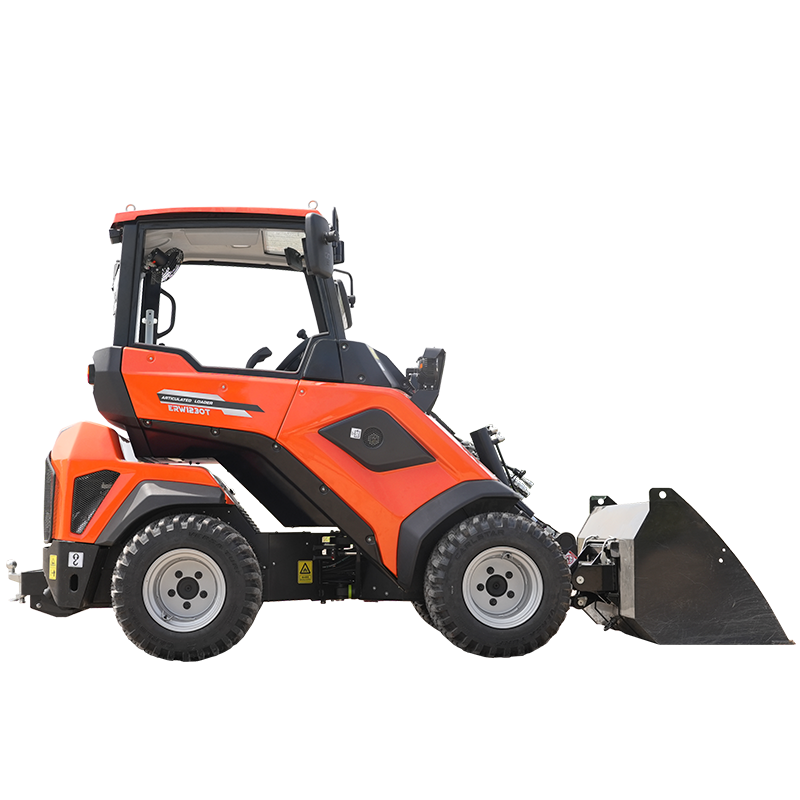

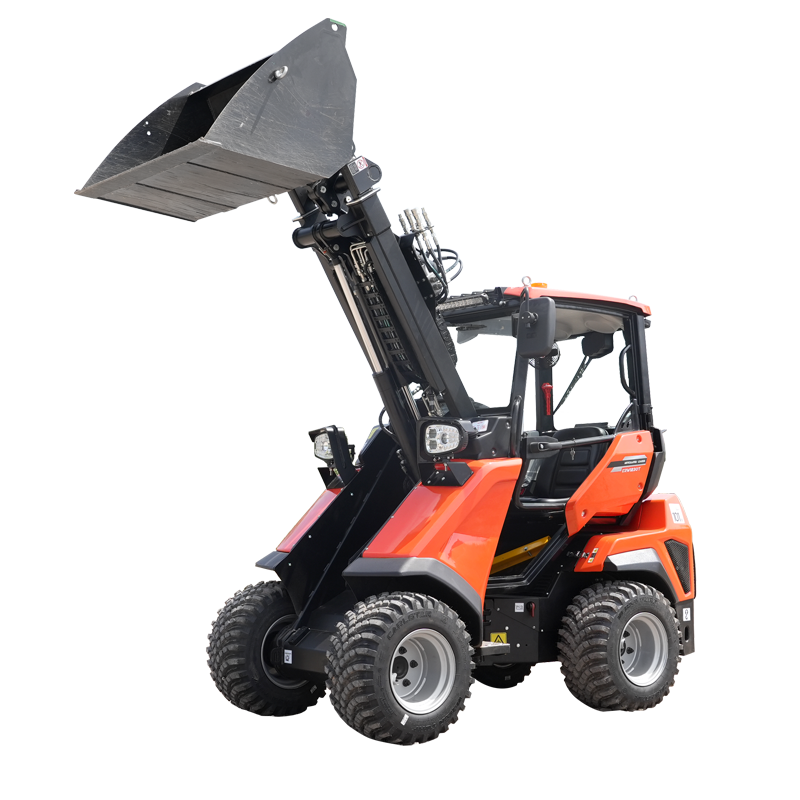

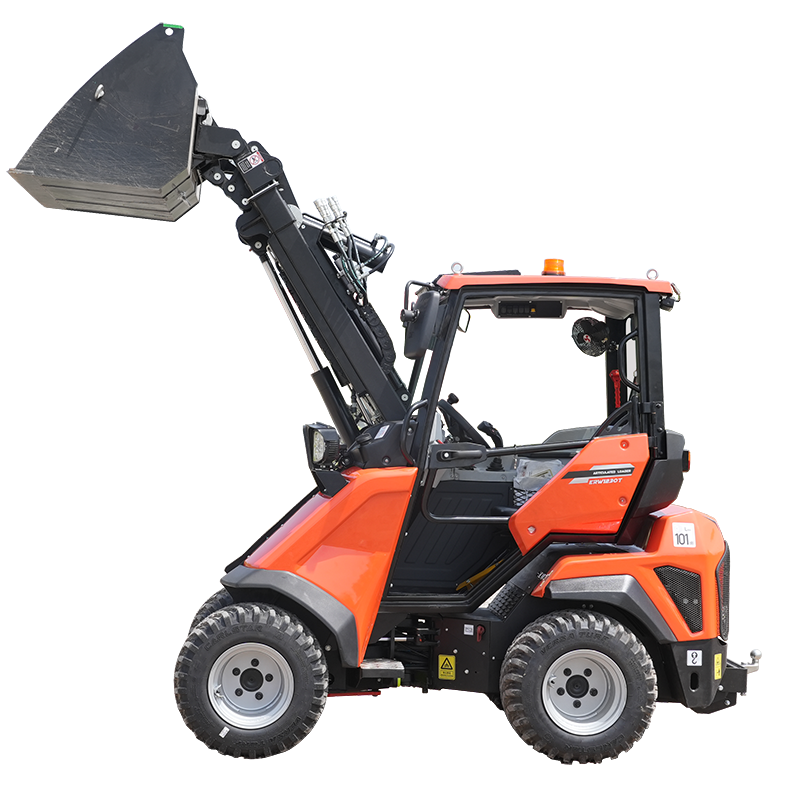

Everun Telescopic wheel loader ERW1230T

Specifications | Descriptions | Technical Parameters

ERW1230T is a compact wheel loader with a 1200kg maximum loading capacity, demonstrating excellent performance in applications such as farms, gardens, stock farms, warehouses, factories, small engineering projects, construction sites, and environments with rough terrain.

This model has a strong market presence in Europe, North America, Australia, South America, and other regions. It features higher manoeuvrability, enhanced safety, greater power, lower noise, improved comfort, and superior stability.

Specifications

Engine Rated Power

18.2kW

Rated Load

1200kg

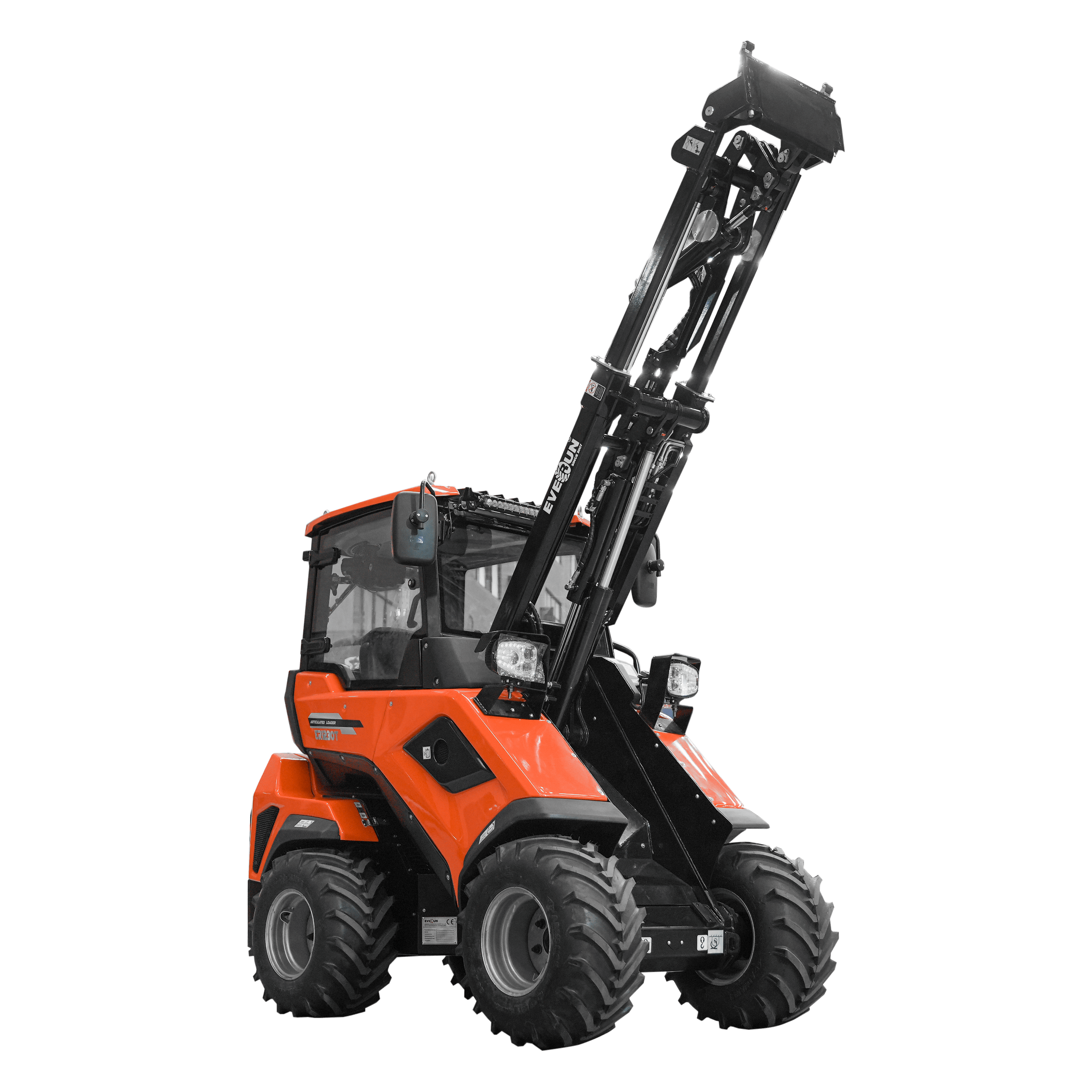

Max. Lifting Height

3060mm

Descriptions

ERW1230T-C With Closed Cabin, Standard Bucket, Kubota D1105 Engine(Stage V/EPA4), Quick Hitch, European Hydrostatic Transmission System, Electric Gear Shift, LED Working Lights, Electric Parking Brake, Hand Throttle,  Floating Function, 26×12-12 Tyre.

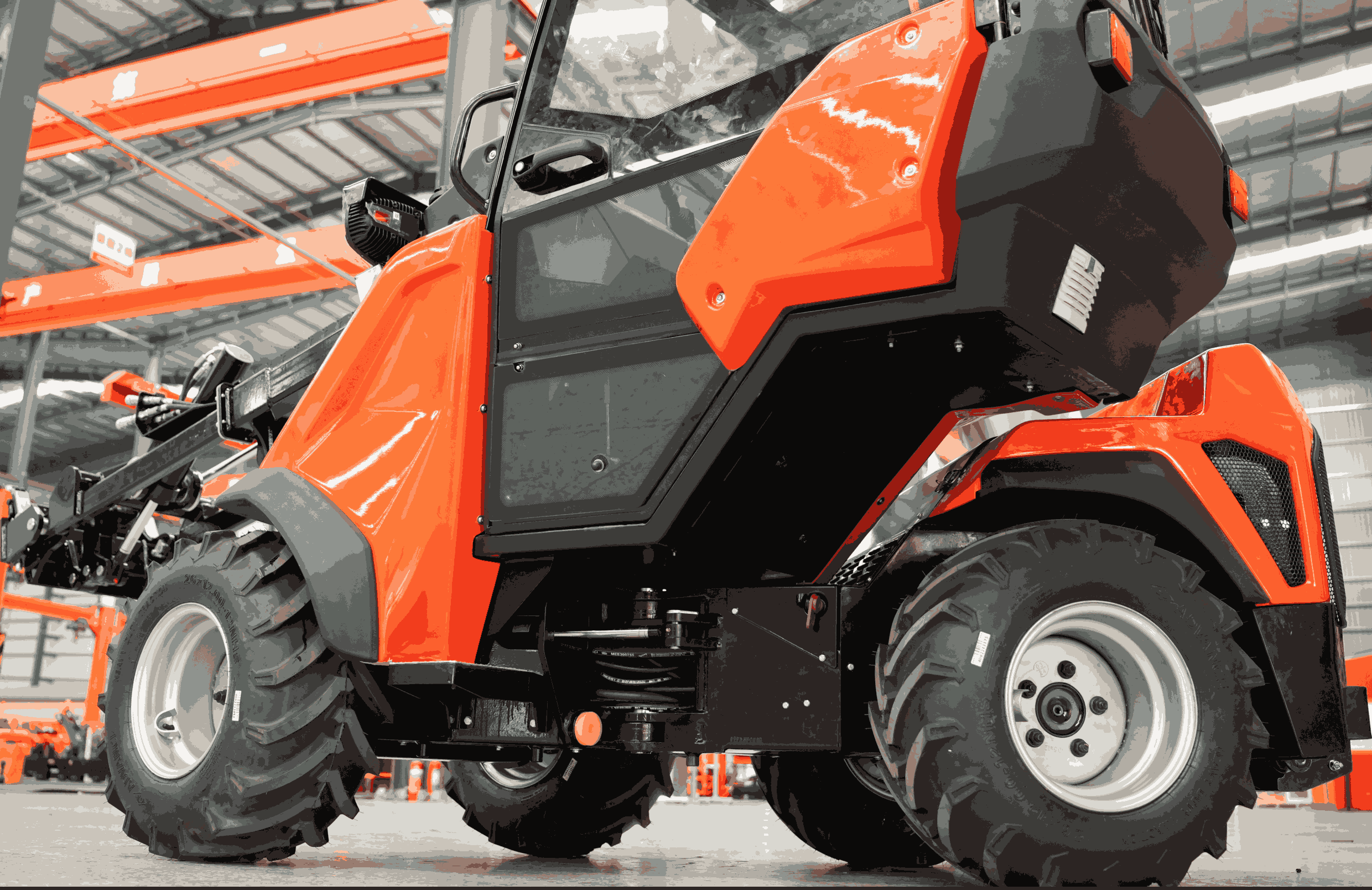

1. Central Articulation Joint Structure
This structure allows for a much tighter turning radius, providing unmatched agility in tight spaces.
2. Dual-Pump Flow Sharing
This system utilizes two gear pumps. One is on standby under normal conditions, but both can be combined to provide high hydraulic flow on demand. This is particularly effective for high-flow attachments like rotary sweepers or breakrs.
3. Quiet, Low-Vibration Cab
The engine is remotely mounted, separating it from the cab to significantly reduce noise and vibration. This ensures a quieter and more comfortable working environment for the operator.

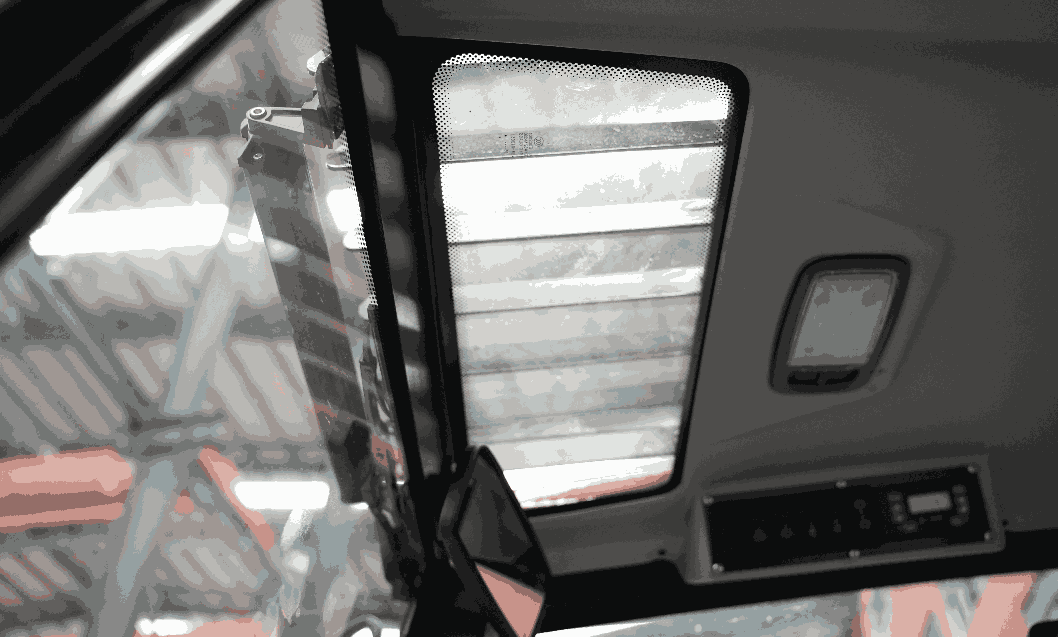

4. Optimized Cab Visibility
The cab is aligned with the forks or bucket, providing the operator with a clear, unobstructed view of the attachment and the work area for improved precision."
5. Integrated Service and Parking Brake
The integrated design of the service and parking brakes ensures exceptional braking reliability, providing a high level of safety and control.
6. Anti-Stall Hydrostatic Drive
The hydrostatic travel system features an anti-stall function that prevents the engine from stalling under load. This simpli-fies operation, improves the overall driving experience, and enhances machine stabiliy.

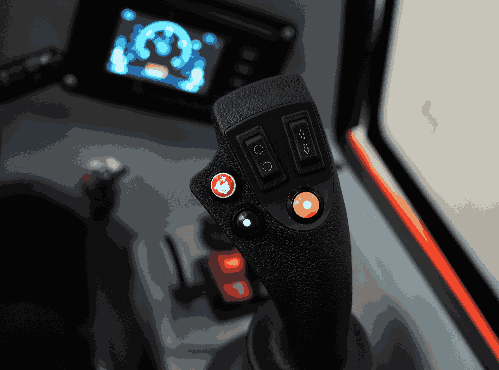

7. Premium Electric Joystick
The premium electric joystick provides easy and smooth control, making operation more sensitive and accurate while also significantly reducing operator fatigue.

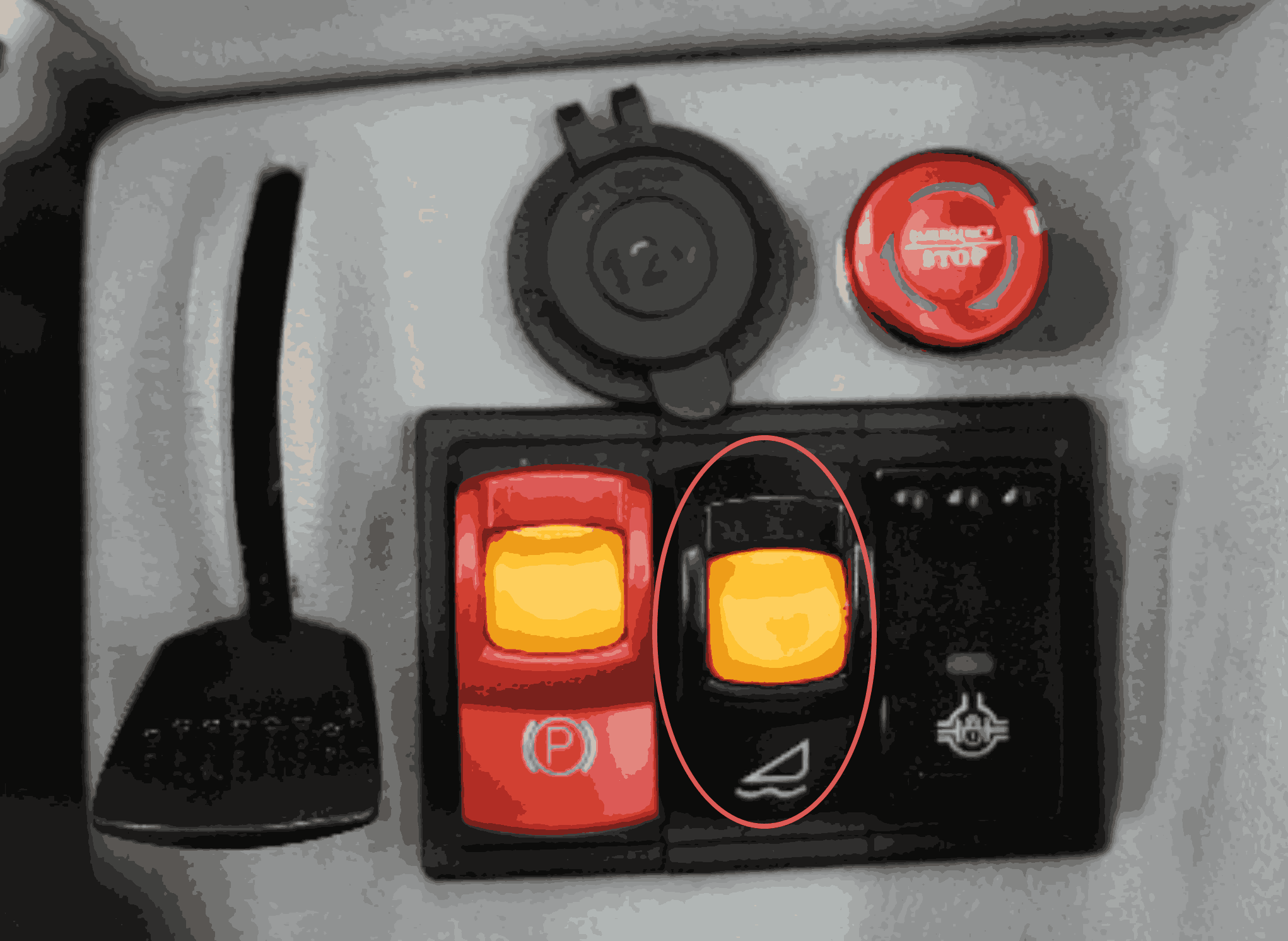

8. Electric Floating Function
It allows the attachment to automatically follow the contours of the ground, which significantly reduces operator fatigue and ensures a consistent, high-quality result. By preventing the attachment from digging into the surface, this function also minimizes ground damage and extends the service life of both the implement and the machine.
9. Anti-Slip Valve
The Anti-Slip Valve effecitvely monitors the drive system to prevent same side wheel spins, ensuring maximum traction on challenging and slippery surfaces.
10. Electric Hand Brake
The electric hand brake provides enhanced safety and convenience by replacing the manual lever with a simple push-button control. This system automatically engages when the machine is turned off and requires less maintenance, ensuring reliable holding.

Technical Parameters

FEATURE

SIZE / DETAILS

Max. Loading Capcity (tipping load) 1200kg
Net Weight 1660kg
Overall Dimension (L×W×H) 2630×1250×2000mm
Max. Lifting Height of shovel pivot pin 3060mm
Wheelbase 1312mm
Min. Turning Radius(Outside) 2050mm
Engine Manufacturer KUBOTA
Engine Model D1105-E4B-CWL-1
Displacement 1123ccm
Engine Power 18.2(24.8)kW(HP)
Type of Coolant Water Cooling
Number of Cylinders 3
Rated Speed 3000r/min
Transmission Type Hydrostatic
Gear Shift Electric
Max Driving speed 13km/h
Drive Pump Rated Pressure 320bar
Working Pump Rated Flow 50L/min
Working Pump Rated Pressure 18bar
Steering Type Articulated Steering
Steering Cylinder 2
Max. Turning Angle 50°
Min. Turning Radius(Inner/Outer) 800/2050(without bucket)mm
Service Brake Hydrostatic brake
Parking Brake Electric parking brake

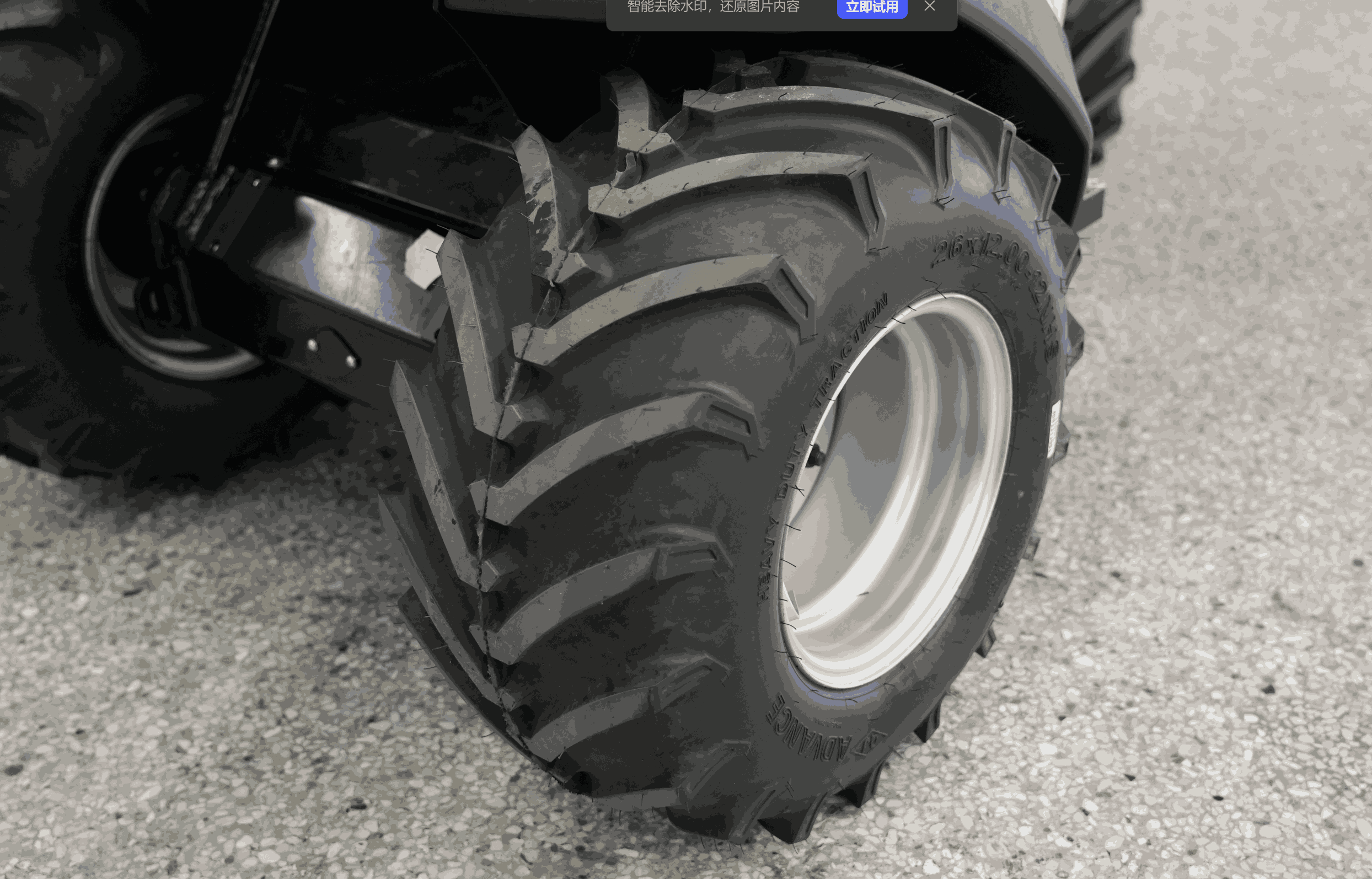

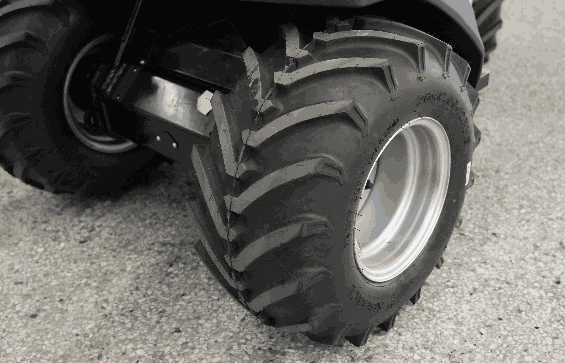

Tire Specifications 26×12-12
