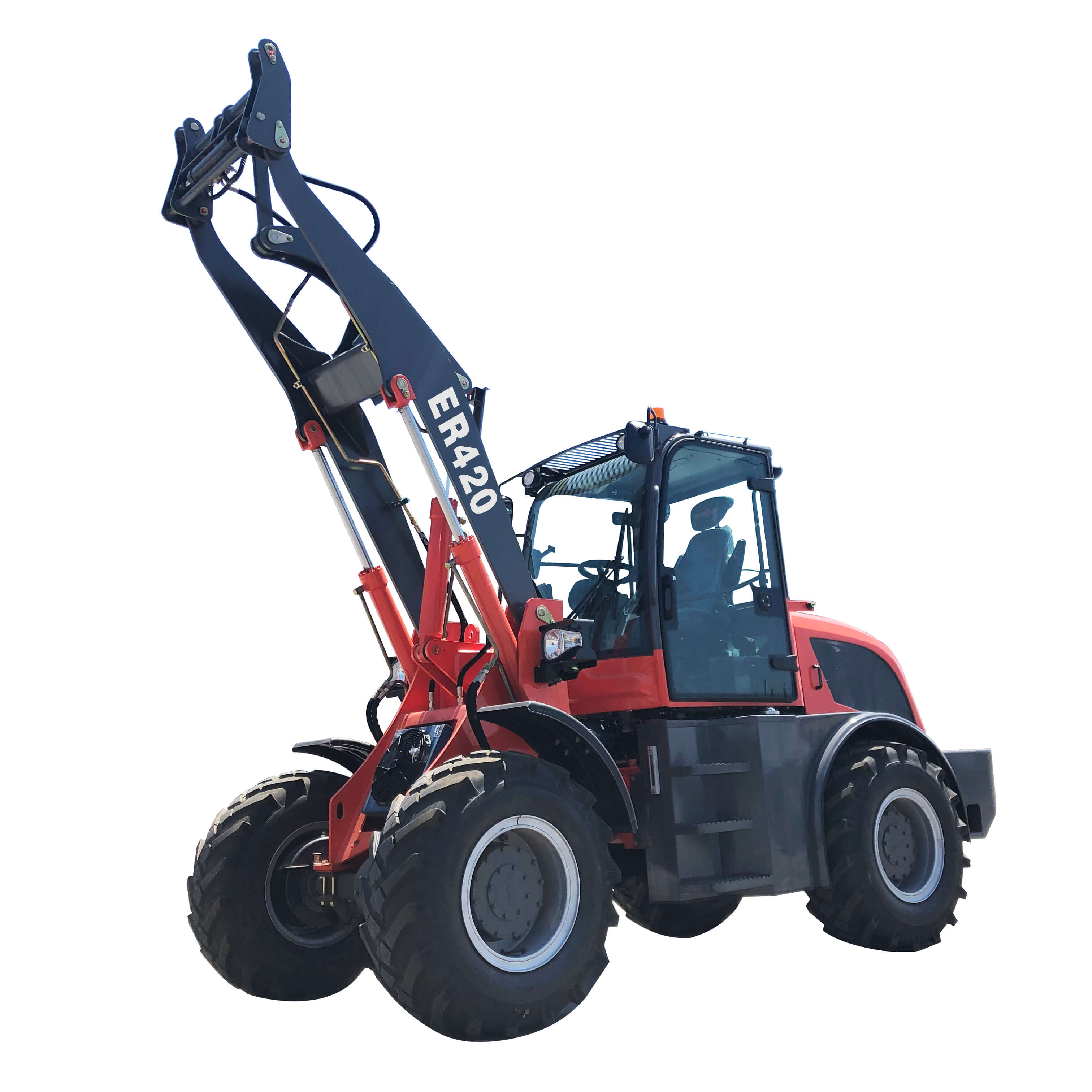

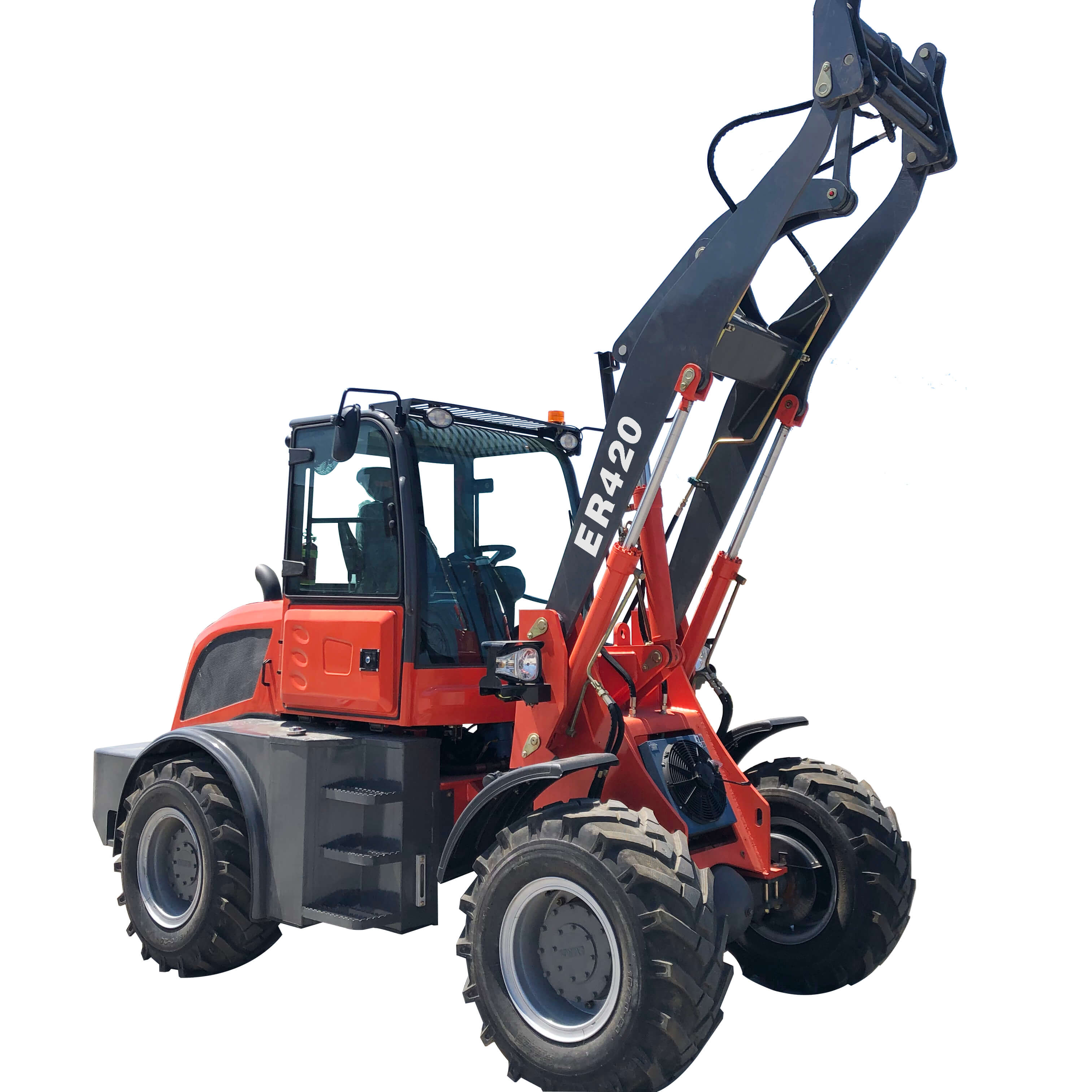

Small Wheel Loaders—ER420

Specifications | Descriptions | Technical Parameters

Everun ER4 series wheel loaders are products for both agricultural use but also works well in construction. Thanks to 4 New designs: New swing articulation, new cabin, new oil cylinder, and the new operation weight, the ER420 machine are not only have superior performance in agricultural and garden application, but also advanced for small constructions and terrain field application.

Specifications

Maximum Engine Power

70kW

Overall Weight

5500kg

Standard Bucket Capacity

0.67m³

Descriptions

Everun ER4 series wheel loaders are products for both agricultural use but also works well in construction. Thanks to 4 New designs: New swing articulation, new cabin, new oil cylinder, and the new operation weight, the ER420 machine are not only have superior performance in agricultural and garden application, but also advanced for small constructions and terrain field application.

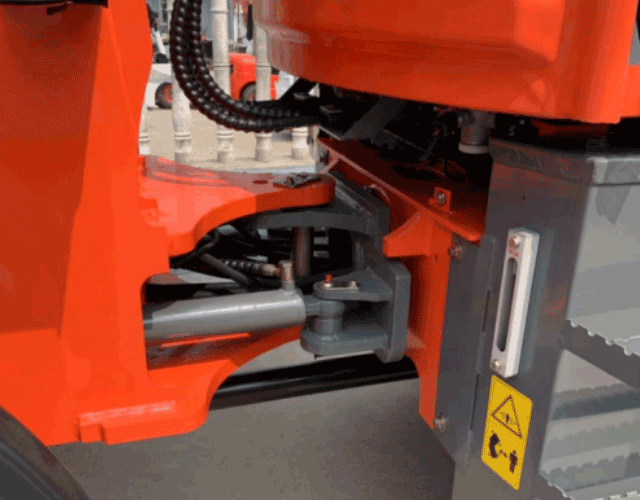

1-Everun articulated oscillating floating joint
The backbone of the Everun ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

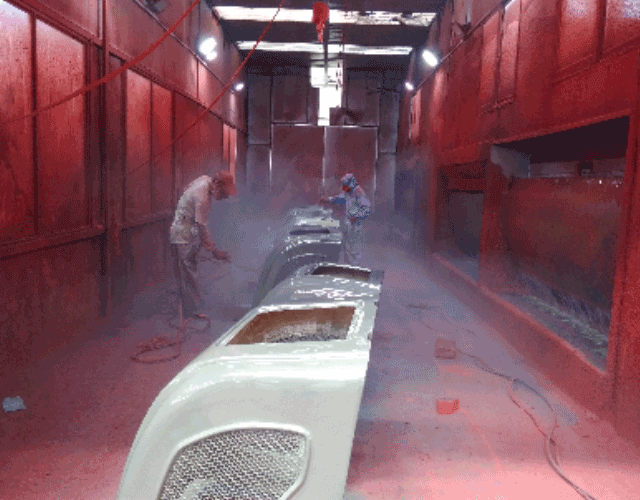

2-High quality powder coating
Quality creates added value. The powder coating is a key feature of the Everun quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

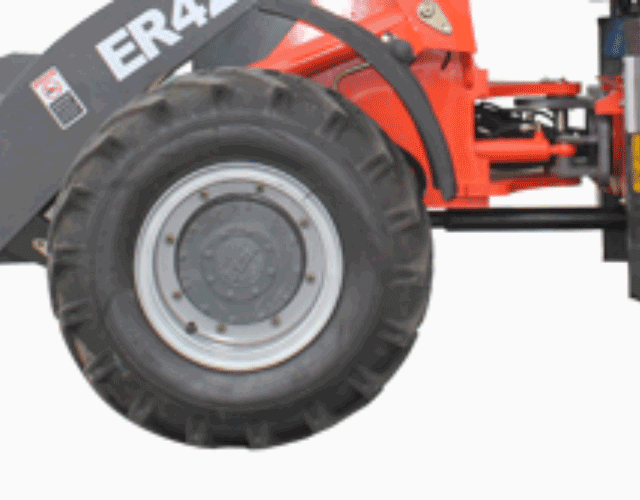

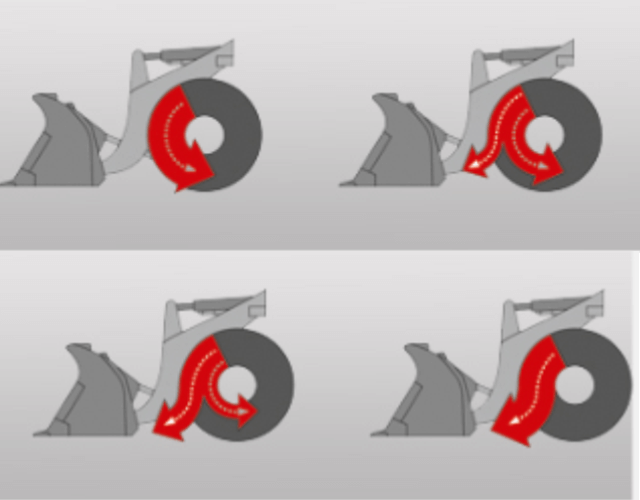

3-High shear forces from planetary axle
The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

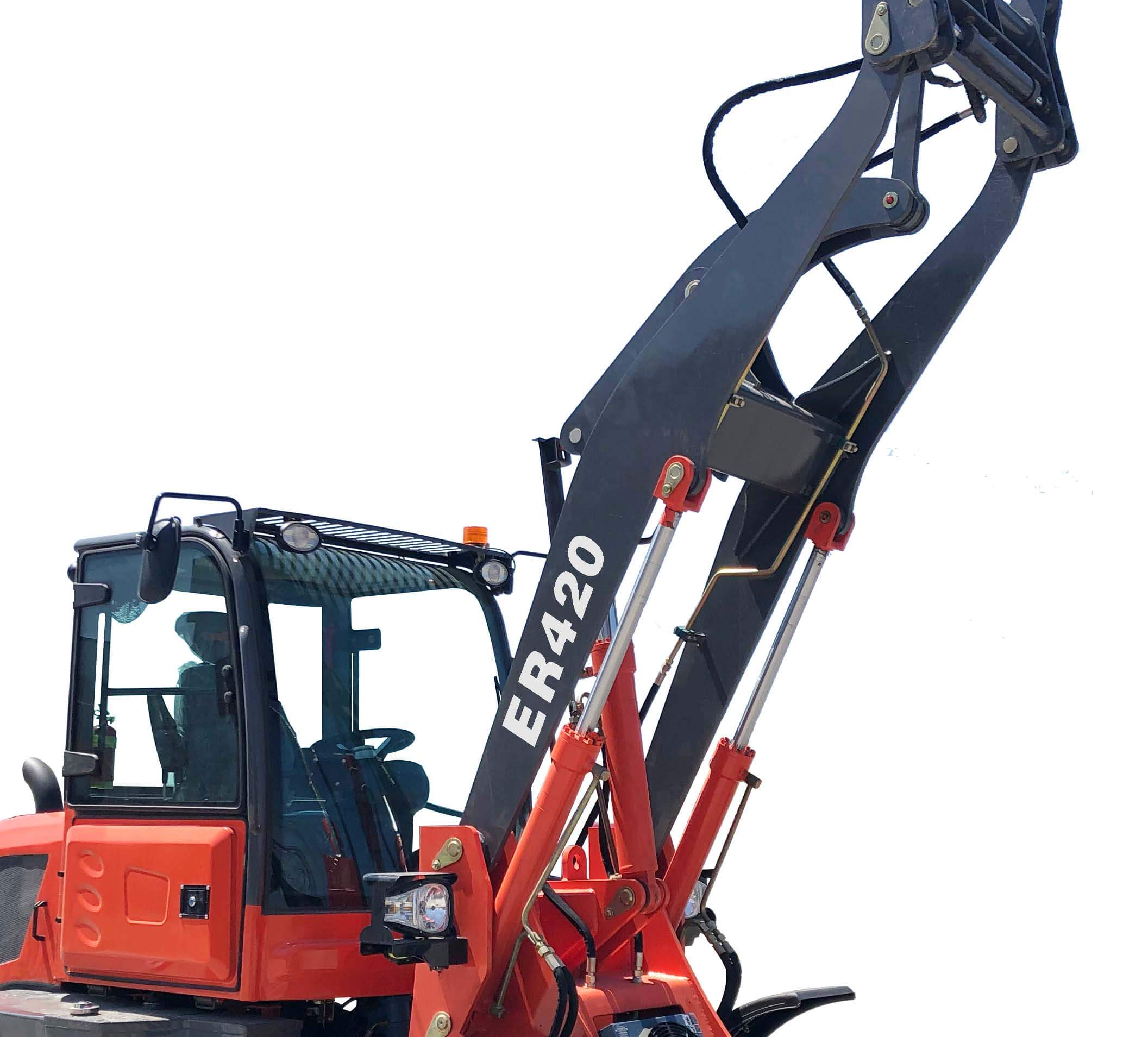

4-One bigger and stronger lift cylinder
Everun always installs strong lift cylinder in all ER4T series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

5-Stainless steel steering stops
At a full steering stop, the front and rear carriage of the machine touch. With Everun, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion. This provides for value preservation!

6-Large selection of attachments
Use your machine as a multi-tool: you have a wide selection of attachments available for your Everun machine.

7-Large selection of tyres
The optimal tyres for every subgrade: you have a wide selection of different tyres available for your Everun machine.

8-Easily accessible lubrication points

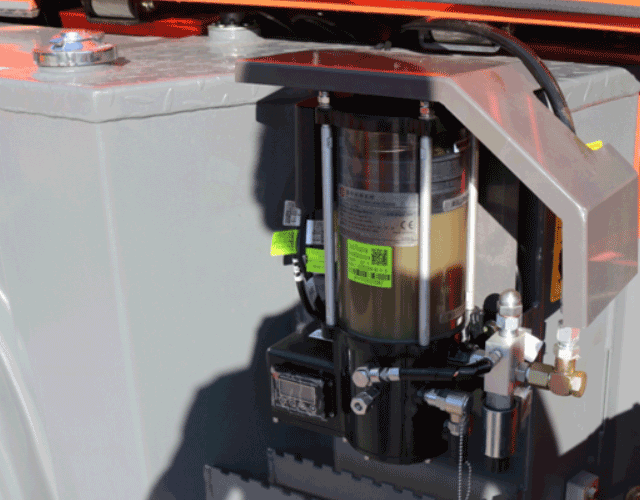

Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Everun. Optionally, a central lubrication system is available that takes over the lubrication for you.

9-Short hydraulic hose lengths
Everun machines have short hydraulic hose lengths; the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

10-working Area that motivates.

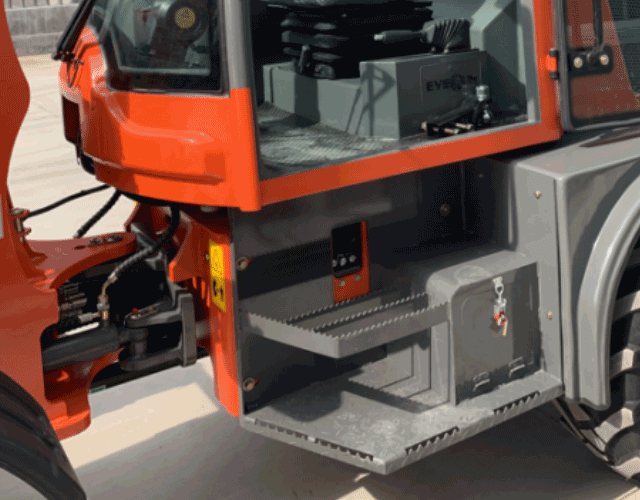

10-1 ROPS & FOPS cabin with maintenance port
With Everun new designed ER4T Rops& Fops cabin, There is maintenance port left in the cabin, and it provide optimum ease of service.

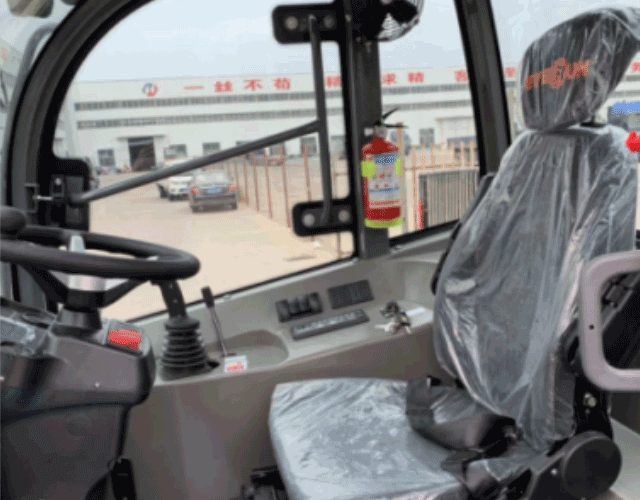

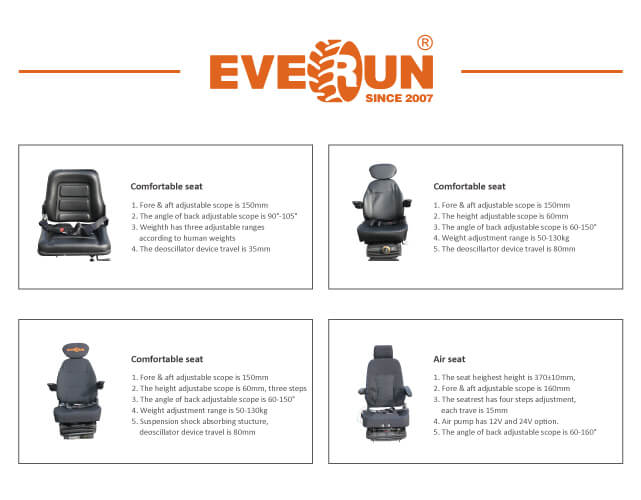

10-2- Comfortable Seat

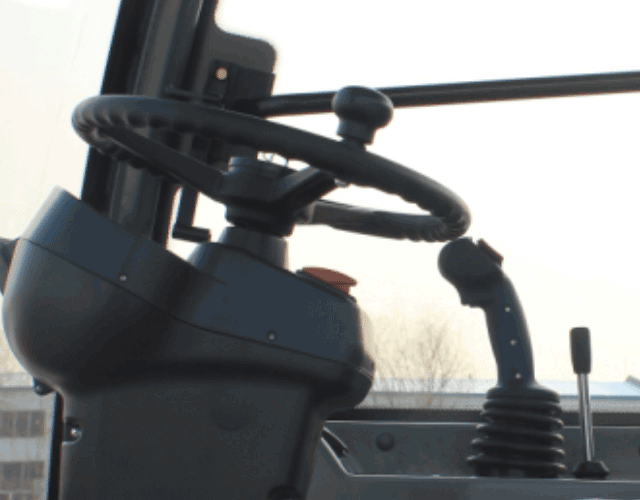

10-3 Adjustable steering column
The steering column can be individually adjusted according to the operator’s request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

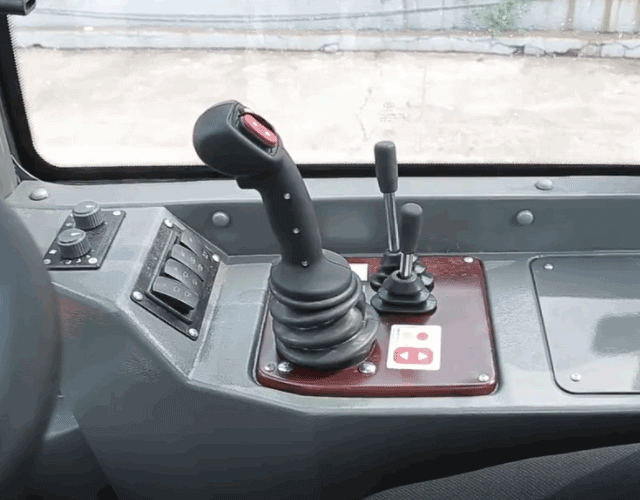

10-4 Ergonomic joystick
The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. In this way, you always have the machine and its key functions under control.

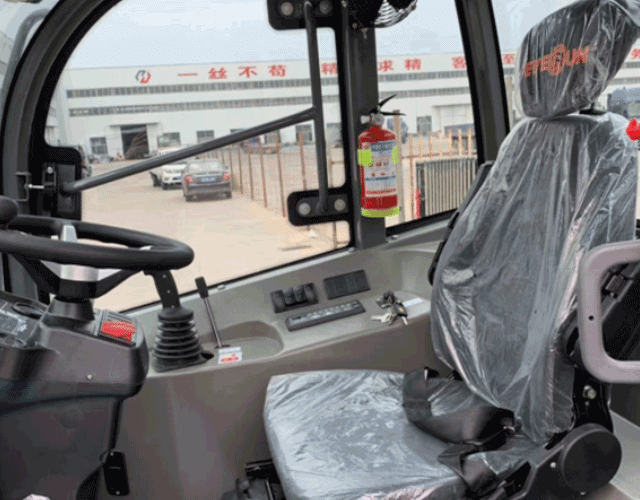

10-5 Good all-round visibility — ergonomic workplace
Plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal visibility of the attachment. A working area that motivates and fully supports the operator.
The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles. With the comfort cab, air conditioning is available as an option.

11-Vibration-damped working area
Vibrations and impacts are absorbed by the machine. Your body is very well-protected and you also work for a longer time, relaxed and fatigue-free, and are therefore simply more focused.
12-Brake pedal and torque converter transmission system
In Everun machines, the applied traditional torque converter transmission system, not only provides a steady working operation, but also enables much easier and lower on repair and maintenance.

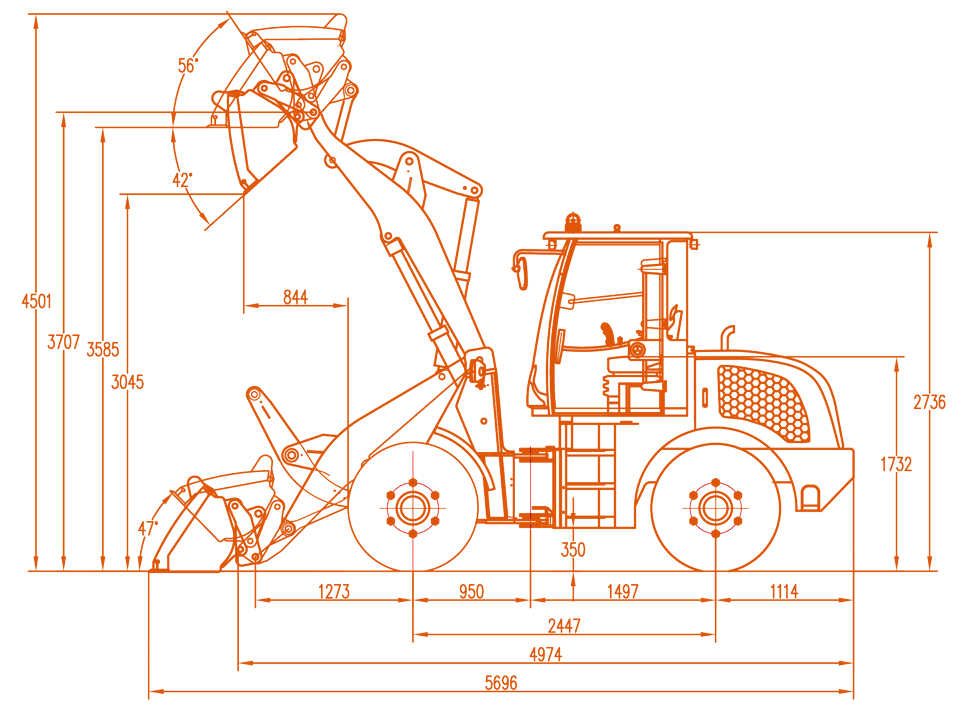

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ER420
Engine Model Xichai 4DX21-72
In-line Arrangement,Water-cooled,Four-cycle Diesel Engine 94L
Rated Power 53kW
Rated Speed 2400 r/min(rpm)
Max Torque 330N.M
Shift Gear Control Oil Pressure 1.3±0,2
Bucket Capacity 0.67 m³
Bucket Type Heavy-duty Bolt On Teeth
Rated Load 2000kg
Overall Length(bucket on ground) 5710mm
Overall Height 2800mm
Overall Width 2040mm
Steering System Articulated Frame With Hydraulic Power Steering

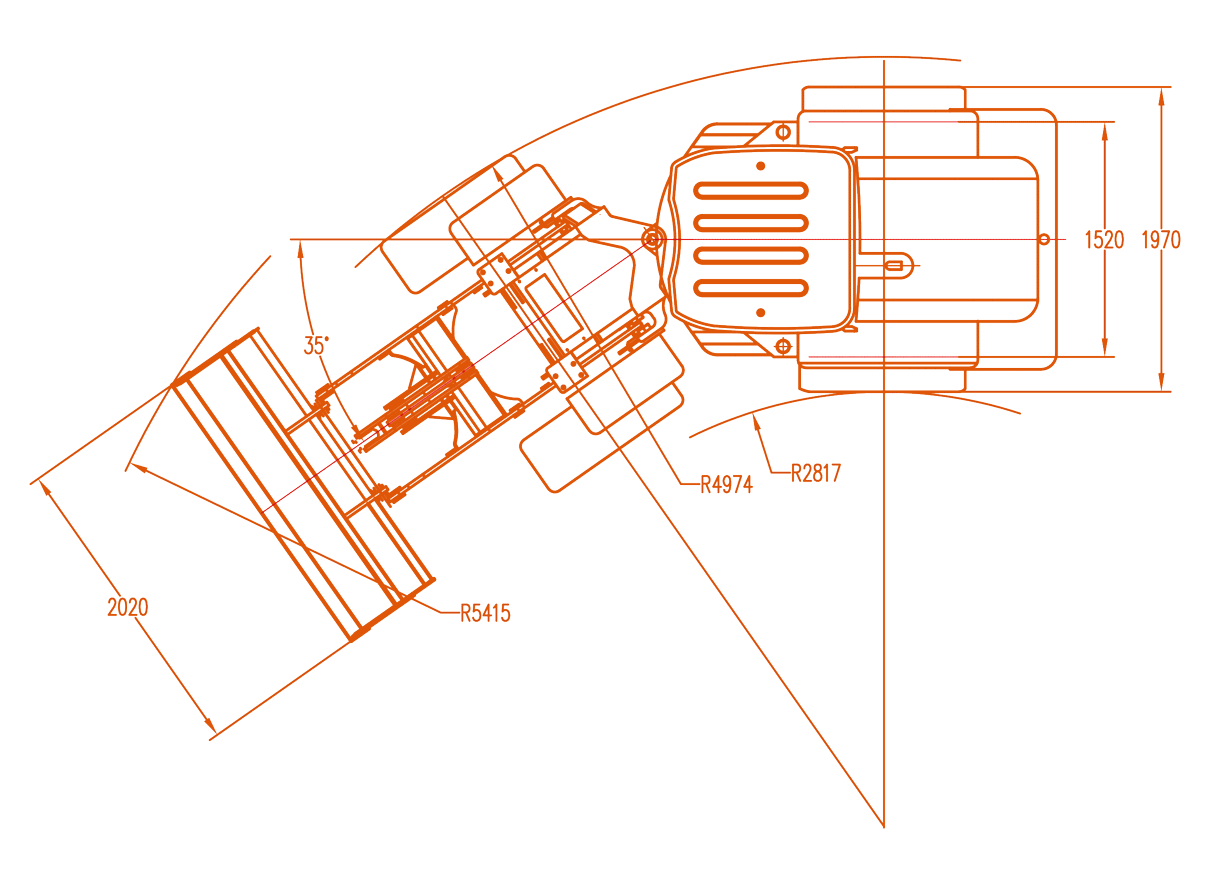

Min.turning Radius 5460mm
Driving System Hydraulic Converter
Overall Weight 5500kg
Parking Brake Hand operated
Service Brake Four Wheel Hydraulic Spread-shoed Brake
Tyre 16/70-20
