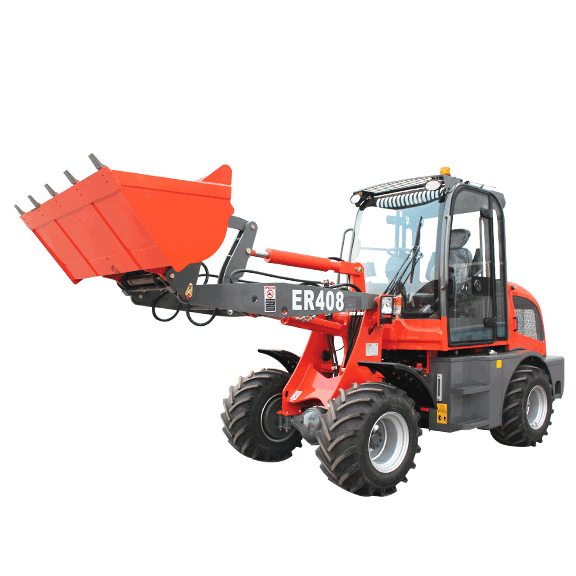

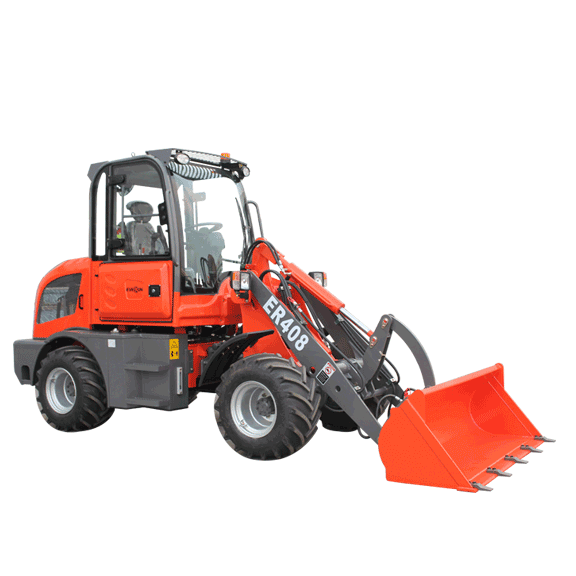

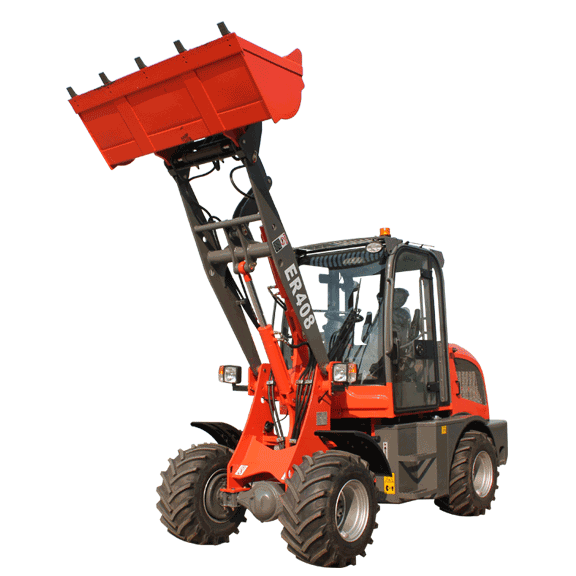

ER408 can working in both agricultural environment and construction environment depending to its special heavy duty design especially the articulation.
The main market are European,Australia and north America.Beautiful color and design making it conform to people's aesthetic taste.
Comfortable, safe and powerful are the features of ER408.
Maximum Rated Engine Power
25kWOperating Weight
3100kgStandard Bucket Capacity
0.38m3ER408 can working in both agricultural environment and construction environment depending to its special heavy duty design especially the articulation.
The main market are European,Australia and north America.Beautiful color and design making it conform to people's aesthetic taste.
Comfortable,safe and powerful are the features of ER408.

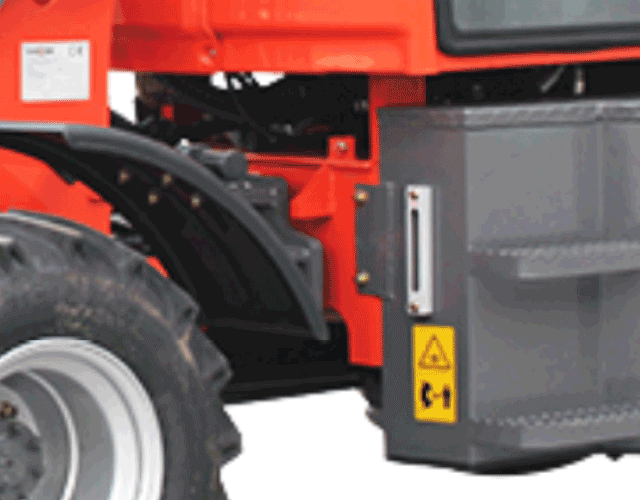

Everun articulated pendulum joint
The backbone of the Everun design: The legendary articulated pendulum joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.
High quality powder coating
Quality creates added value. The powder coating is a key feature of the Everun quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.
High shear forces from planetary axle
The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

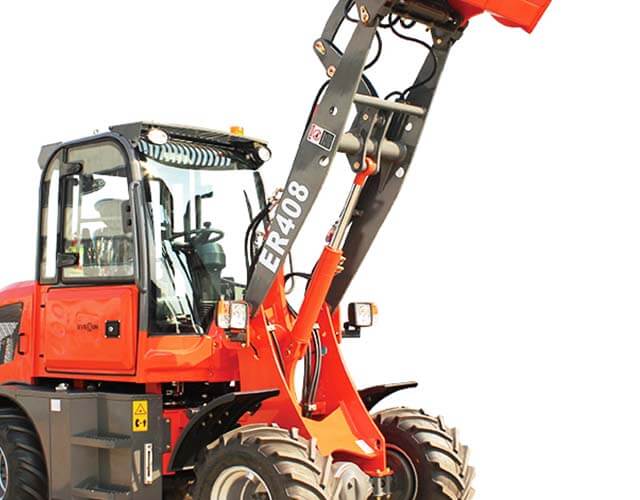

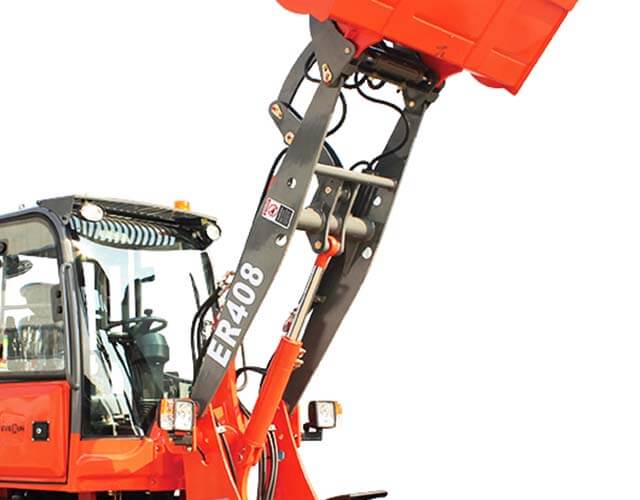

One strong lift cylinders
Everun always installs two lift cylinders in all Hoftrac and wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.
Perfectly matched P-Z-kinematics
The angled loading arm is designed to be particularly sturdy and torsion resistant. At Everun, the kinematics are adjusted to the size of the machine: this ensures optimal balances of power for every machine. The P-Z kinematics is a combination of P-kinematics and Z-kinematics. It allows significant lifting and shearing forces and has a finely co-ordinated parallel motion in the process.
Stainless steel steering stops
At a full steering stop, the front and rear carriage of the machine touch. With Everun, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion. This provides for value preservation!
Large selection of attachments
Use your machine as a multi-tool: you have a wide selection of attachments available for your Everun.

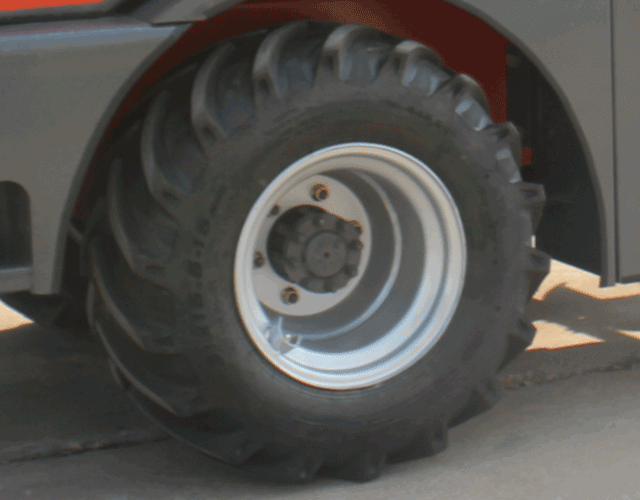

Large selection of tyres
The optimal tyres for every subgrade: you have a wide selection of different tyres available for your Everun.
ROPS&FOPS Cabin and Maintenance
Quick and easy tool change
Thanks to the hydraulic quick-change system, attachments can be easily and conveniently exchanged. In this way, your machine is again ready for application at once. This increases productivity and profitability. The exchange of the tool takes place through 2-hand operation, which makes an unwanted change impossible — safety always comes first at Everun!
Good maintenance accessibility for all models
The driver’s seat can be removed and the engine hood can be opened backward widely. This makes the engine, hydraulic system and electrical system easily accessible for our models.

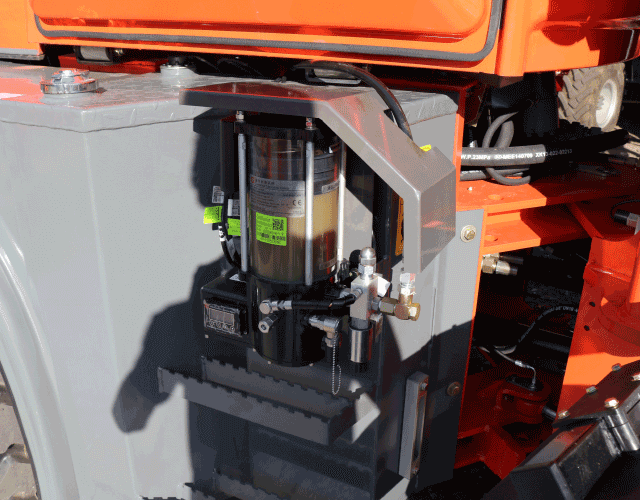

Easily accessible lubrication points
Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Everun. Optionally, a central lubrication system is available that takes over the lubrication for you.
Short hydraulic hose lengths
Everun machines have short hydraulic hose lengths; the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

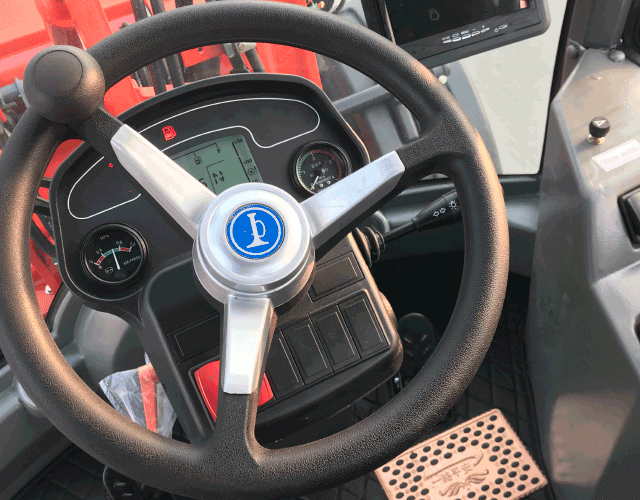

Adjustable steering column
The steering column can be individually adjusted according to the operator’s request. This ensures that every operator can work with the machine ergonomically and fatigue-free.
Ergonomic joystick
The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. In this way, you always have the machine and its key functions under control.
Good all-round visibility — ergonomic workplace
Plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal visibility of the attachment. A working area that motivates and fully supports the operator.
Pleasant working environment
The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles. With the comfort cab, air conditioning is available as an option.

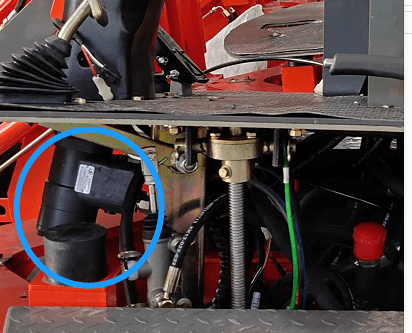

Vibration-damped working area
Vibrations and impacts are absorbed by the machine. Your body is very well-protected and you also work for a longer time, relaxed and fatigue-free, and are therefore simply more focused.
New exhaust emission standard stage V — new engine technology
At Everun, we have already completed stages I to IV for pollutant reduction in the past few years. However, new and stricter limits in level V and subsequent levels still need to be met. However, because we would like to adapt our machines to the new legal situation and continue to develop our machines, we have put a great deal of developmental work and know-how into the new machine types.
Digital display
With the digital display, you obtain an overview of your machine. In addition to standard displays like temperature, tank filling, or operating hours, active functions are also displayed in the cab, like activated electrical functions, the continuous operation of the 3rd control circuit, or the activated differential lock.
Trailer operation
Thanks to the optional trailer coupling, all Everun wheel and telescopic wheel loaders can pull a trailer with a total weight up to 18 t – depending on the model. An automatic trailer coupling is available (fixed or height adjustable), as are a height-adjustable ball trailer coupling and a “hitch” trailer coupling.
Engine Model | Changchai ZN390Q |
Engine Rated Power | 25kW |
Rated Speed | 2400r/min |
Maximum torque N.m @speed | 109 @ 1680 r/min |
Bucket Capacity | 0.38m3 |
Loading Capacity | 800kg |
Net Weight | 3100kg |
Lifting Time | ≤8.0s |
Maximum Speed | 23km/h |

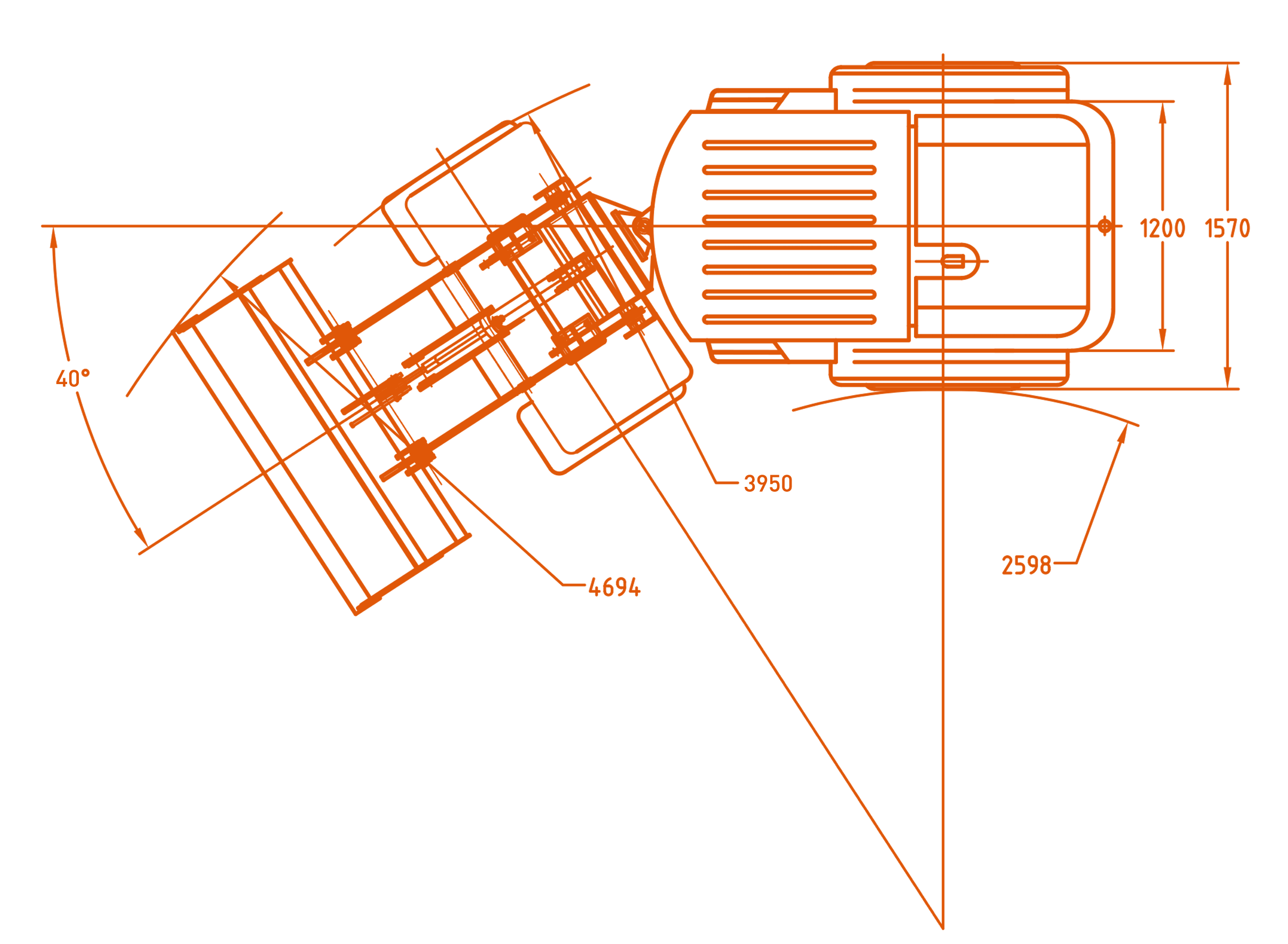

Min.Turning Radius | 3905mm |
Maximum Steering Angle | 40° |

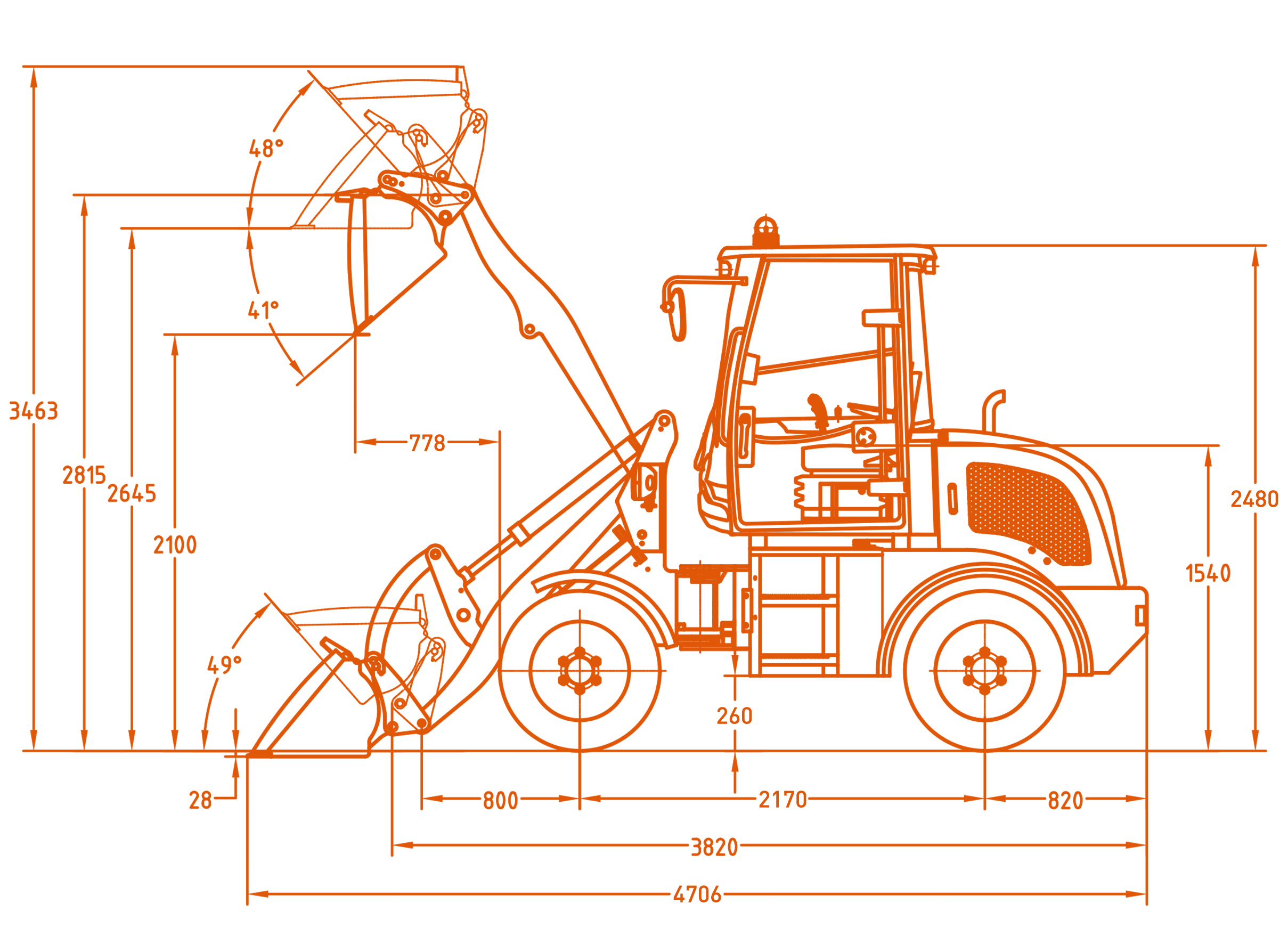

Maximum Dump Reach | 778mm |
Wheel Base | 2070mm |
Wheel Tread | 1200mm |
Service Brake | Mechanical, Drum Brake |
Parking Brake | Manual disk Brake |
System Working Pressure | 18Mpa |
Boom Lifting time | 3s |
Tyre | 31*15.5-15 |
Fuel Tank Capacity | 70L |
Front Tyre Pressure | 310kPa |
Rear Tyre Pressure | 310kPa |
