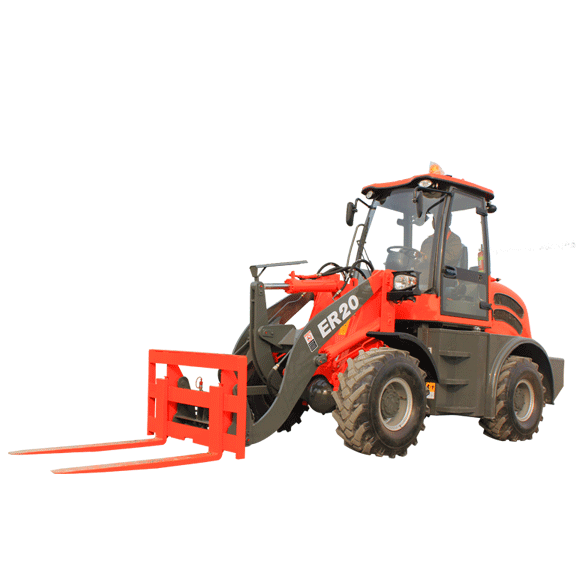

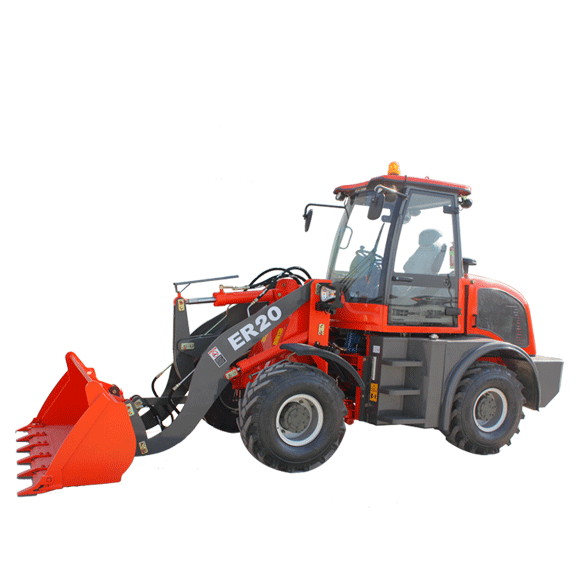

Small Wheel Loaders ER20

Specifications | Descriptions | Technical Parameters

The ER20 wheel loader is a perfect addition for your life. With 2ton loading capacity, not only suit for agricultural operation, but also fit in small construction work, it is the quick and easy solution to all of your day job.



Specifications

Rated Power

57kW

Operating Weight

5000kg

Standard Bucket Capacity

0.67m³

Descriptions

The ER20 wheel loader is a perfect addition for your life. With 2ton loading capacity, not only suit for agricultural operation, but also fit in small construction work, it is the quick and easy solution to all of your day job.

1- Everun unique meter design. Easy command of all working signal.

2- The user-friendly design of the dashboard makes efficient and convenient.

3- E-mark seat for operator comfort and safety.

4- Multiple selection of engines to meet different emission standard.

5- Easy-to-open engine hood making the maintenance.

6- Easy-to-open engine hood.

7- The patented Everun cabin with tiltable design meet Rops and Fops standard.

8- Hydraulic quick hitch to exchange attachments easily and conveniently.

9- Everun hydraulic pressure checking system for trouble shooting.

10- Strong axle to meet diverse terrains and traction requirements.

11- Hydraulic transmission system offers superior power and high efficiency.

12- Optional tires for every surface, there are a large selection of different tires available for your machine.

13- Many comfortable seat for your choose, meet different working conditions driving requirements.

14- Various optional attachments make your loader be multifunctional machine.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ER20
Engine Model Xichai 4DX21-72 Engine
Rated Power 57kW
Rated Speed 2400 r/min(rpm)
Transmission Type Fixed-Spindle Power Shift
Shift Gear Control Oil Pressure 1.2-1.5 MPa
Rated Input Speed 2500rpm
Bucket Capacity 0.67m³
Bucket Width 2040mm
Bucket Type Heavy-Duty Bolt On Teeth
Loading Capacity 2000kg
Overall Length(bucket on ground) 5710mm
Overall Height 2800mm
Overall Width 2040mm

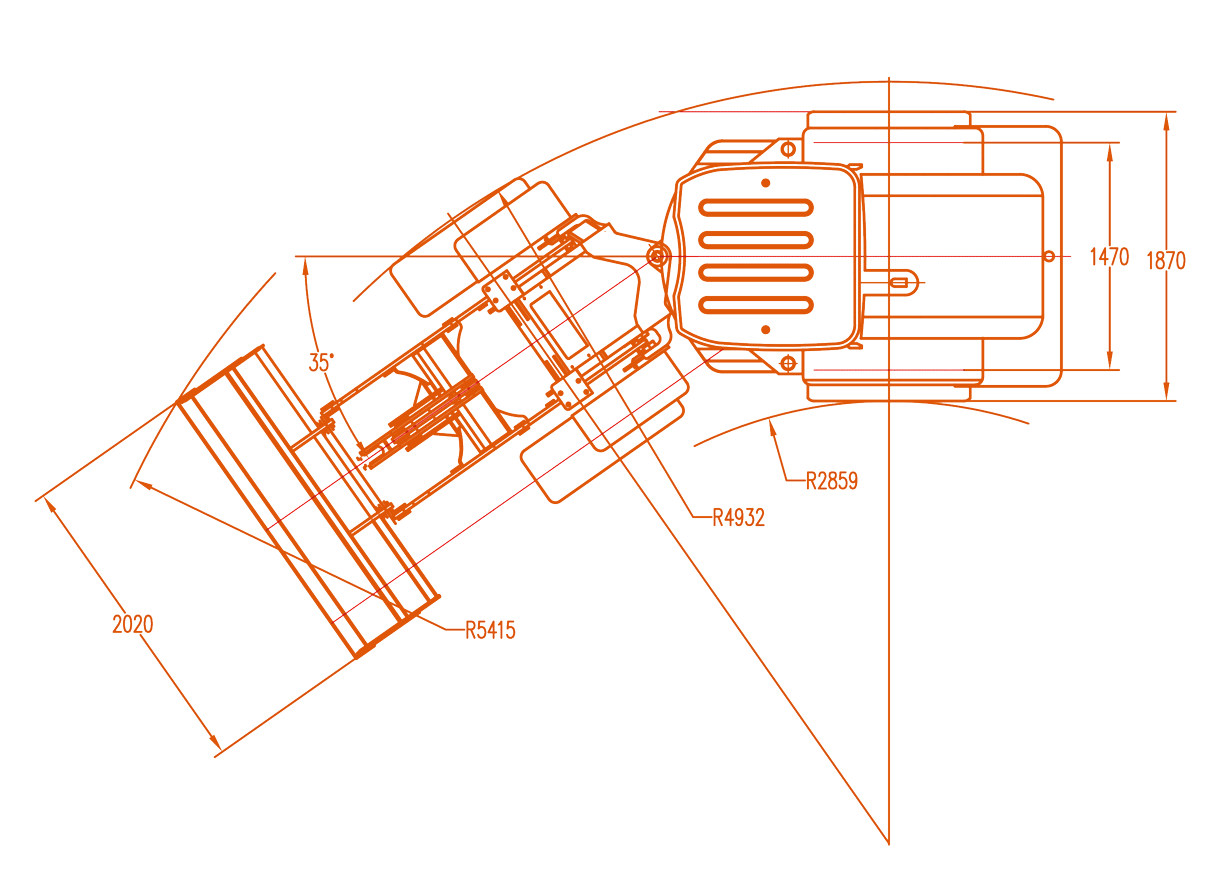

Steering System Articulated Frame With Hydraulic Power Steering
Net Weight 5000kg
Engine Power 53kw
Braekout Force 55kn
Service Brake Four Wheel Hydraulic Spread-Shoed Brake
Parking Brake Hand Operated
Tyre 16/70-20
