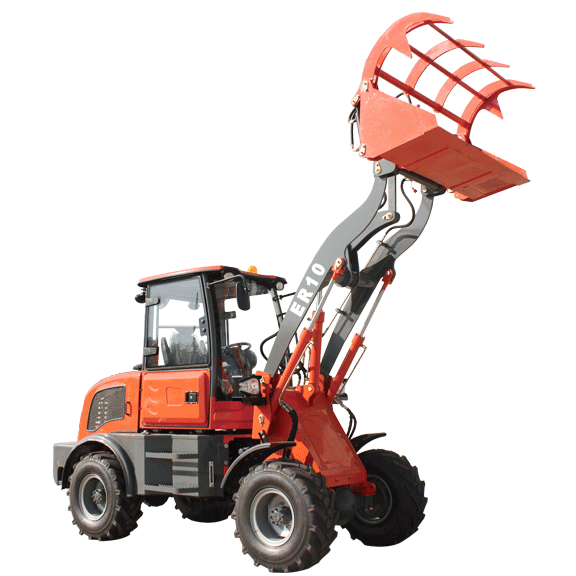

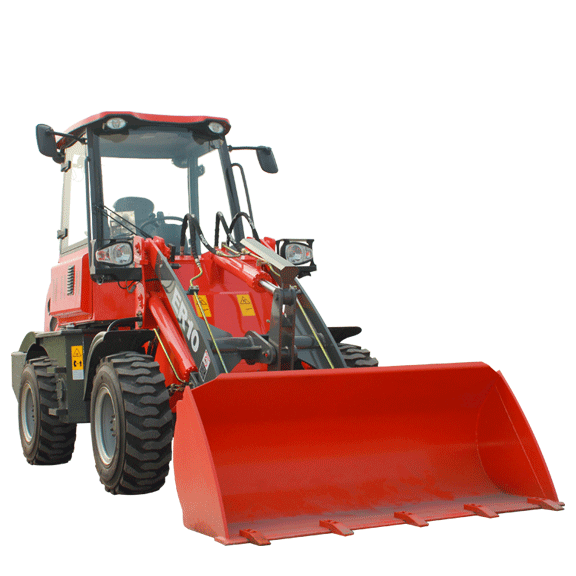

The ER10 provide 1000kg loading capacity, with different
attachments which can meet your different work requirements. Strong comprehensive ability, able to handle most small operations. Ideally suited for small farm, warehouse and garden.
Rated Power
33kWOperating Weight
3300kgStandard Bucket Capacity
0.52m³The ER10 provide 1000kg loading capacity, with different attachments which can meet your different work requirements. Strong comprehensive ability, able to handle most small operations. Ideally suited for small farm, warehouse and garden.
1- Everun unique meter design. Easy command of all working signal.
2- The user-friendly design of the dashboard makes efficient and convenient.
3- E-mark seat for operator comfort and safety.
4- Multiple selection of engines to meet different emission standard.
5- Easy-to-open engine hood making the maintenance.
6- Easy-to-open engine hood.
7- The patented Everun cabin with tiltable design meet Rops and Fops standard.
8- Hydraulic quick hitch to exchange attachments easily and conveniently.
9- Everun hydraulic pressure checking system for trouble shooting.
10- Strong axle to meet diverse terrains and traction requirements.
11- Hydraulic transmission system offers superior power and high efficiency.
12- Optional tires for every surface, there are a large selection of different tires available for your machine.
13- Many comfortable seat for your choose, meet different working conditions driving requirements.
14- Various optional attachments make your loader be multifunctional machine.
Term No. | ER10 |
Engine Model | XICHAI 4DW91-45G2 |
Net Weight | 3300kg |
Rated Power | 33kW |
Loading Capacity | 1000kg |
Displacement | 2.54L |
Maximum Speed | 22km/h |
Bucket Capacity | 0.52m³ |
Bucket Type | Heavy-Duty Bolt On Teeth |
Rated Load | 1000kg |
Overall Length(bucket on ground) | 5049mm |
Ground To Cab Top | 2530mm |
Maximum Dump Height | 2547mm |
Maximum Dump Reach | 1004mm |
Overall Width | 1720mm |
Steering System | Articulated Frame With Hydraulic Power Steering |
Min.turning Radius | 5126mm |
Driving System | Hydraulic Converter |
Service Brake | Foot, Drum Brake |
Parking Brake | Manual Disc Brake |
Tyre | 20.5/70-15 |
Front Tyre Pressure | 320kPa |
Rear Tyre Pressure | 320kPa |
