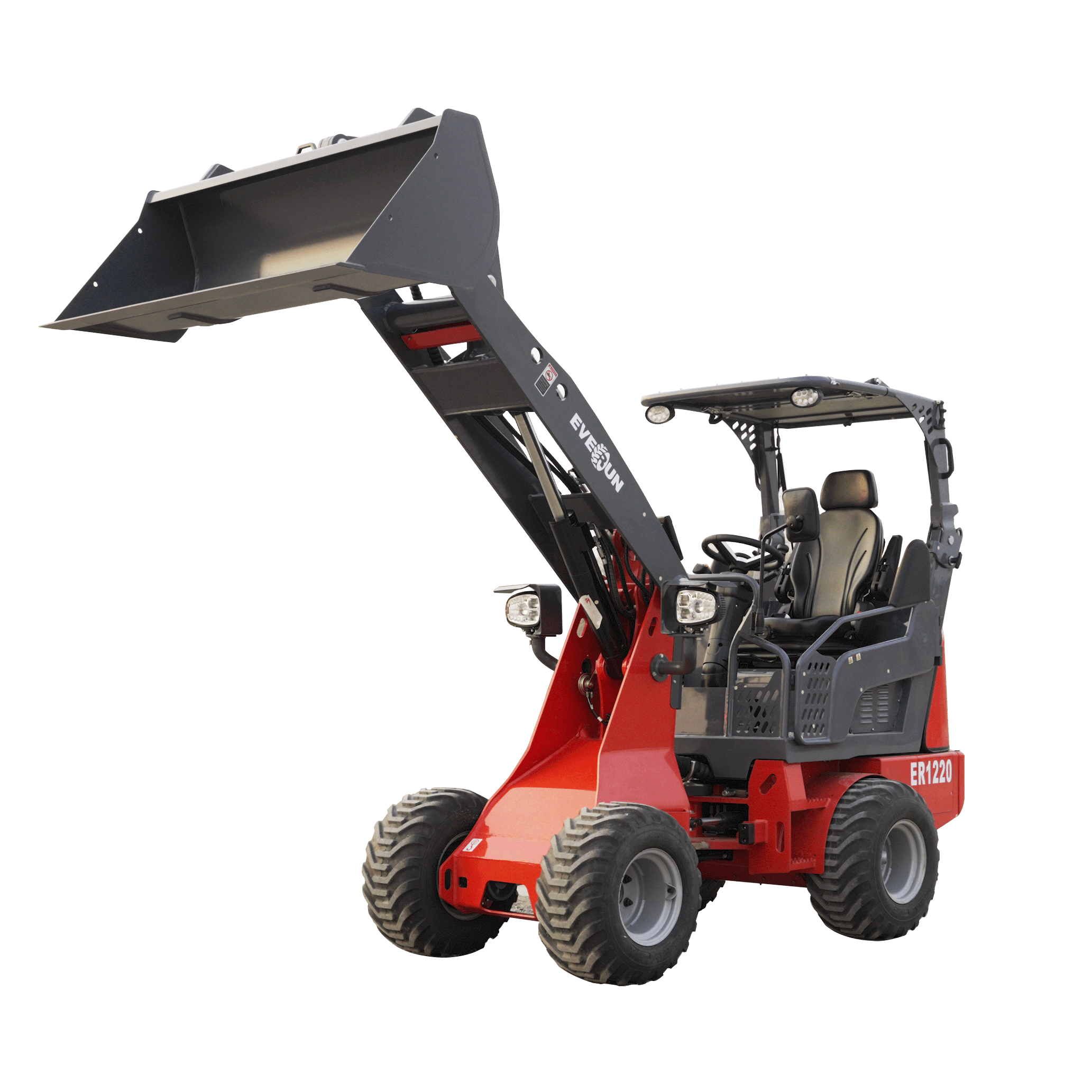

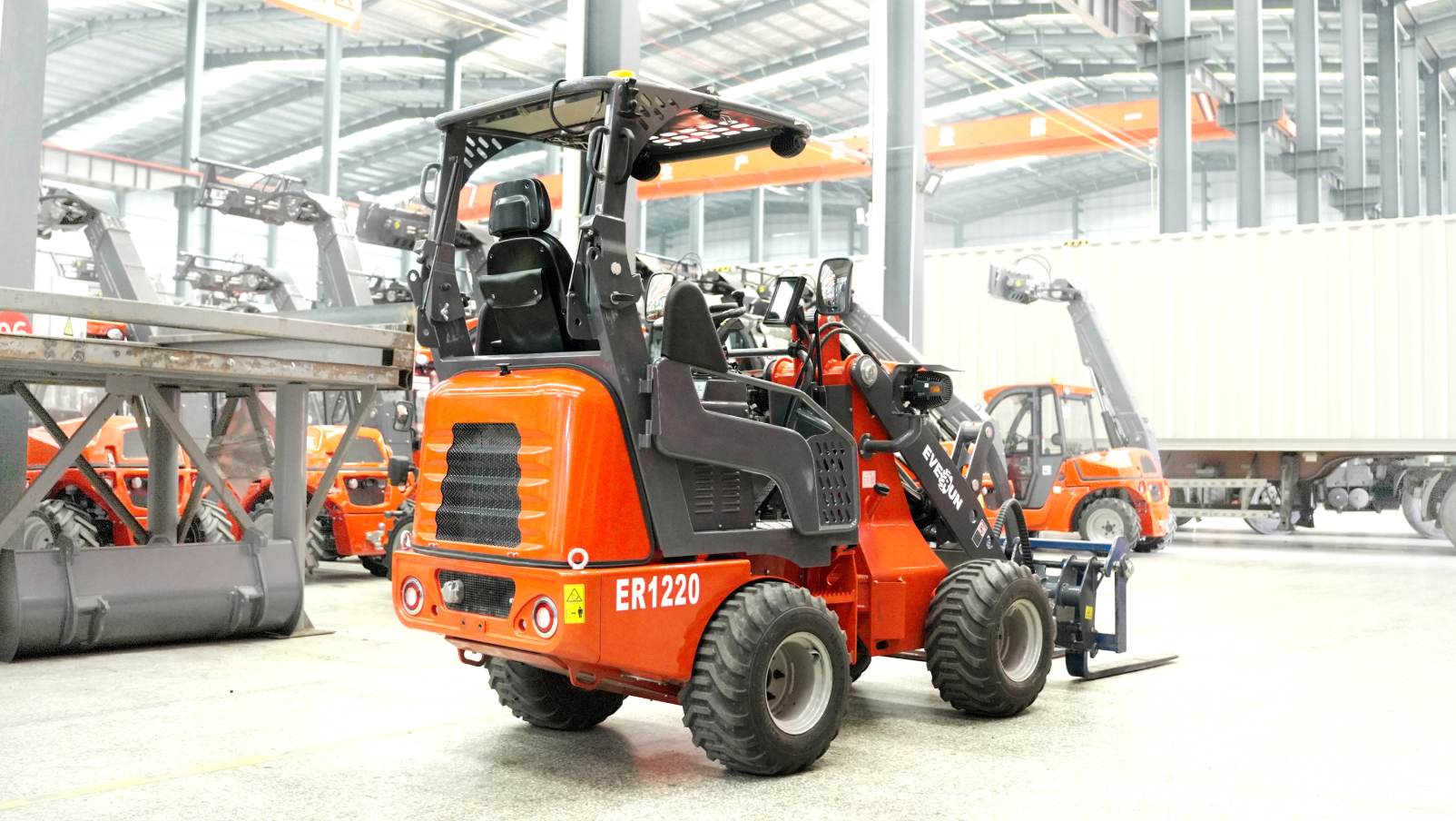

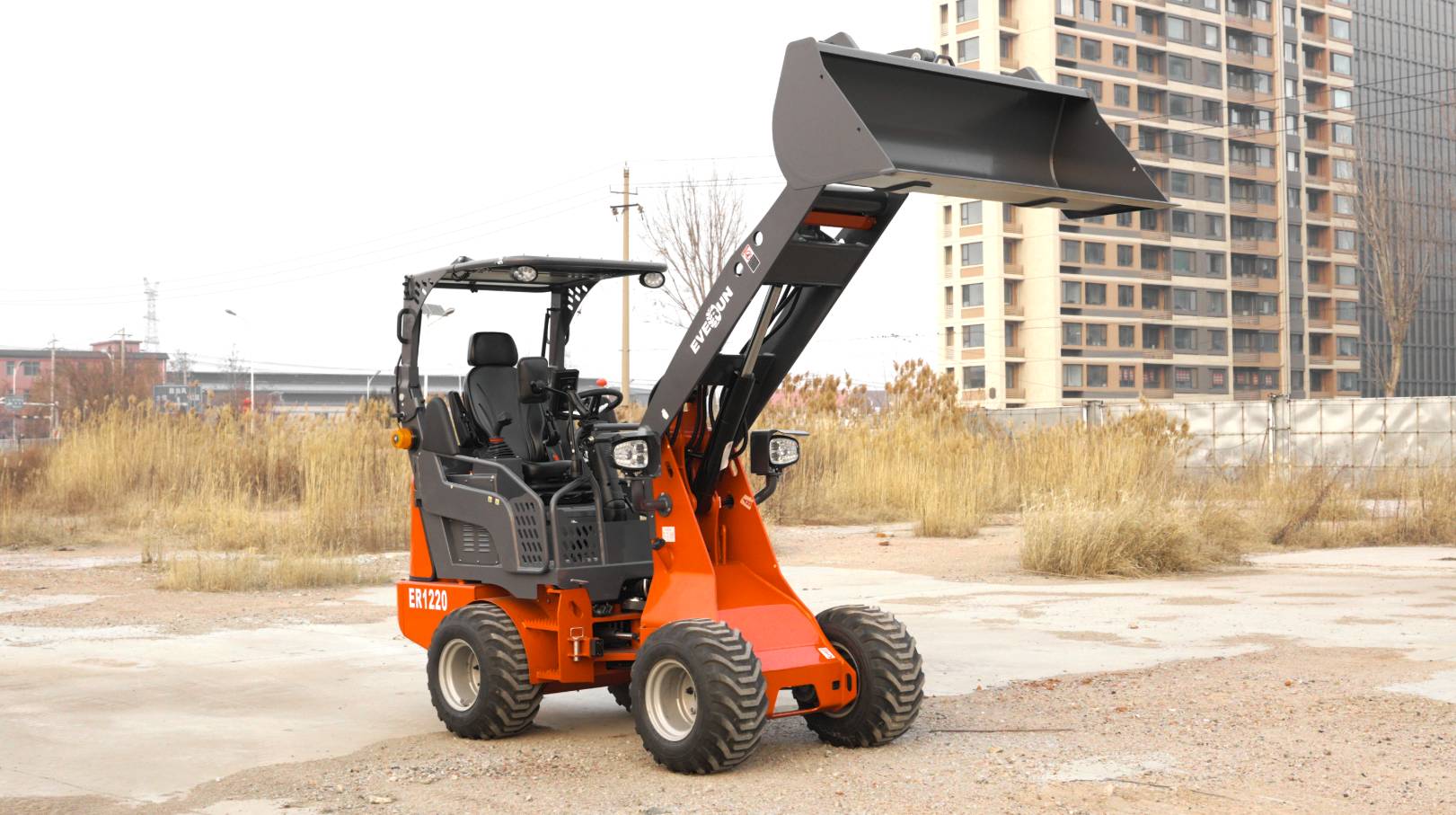

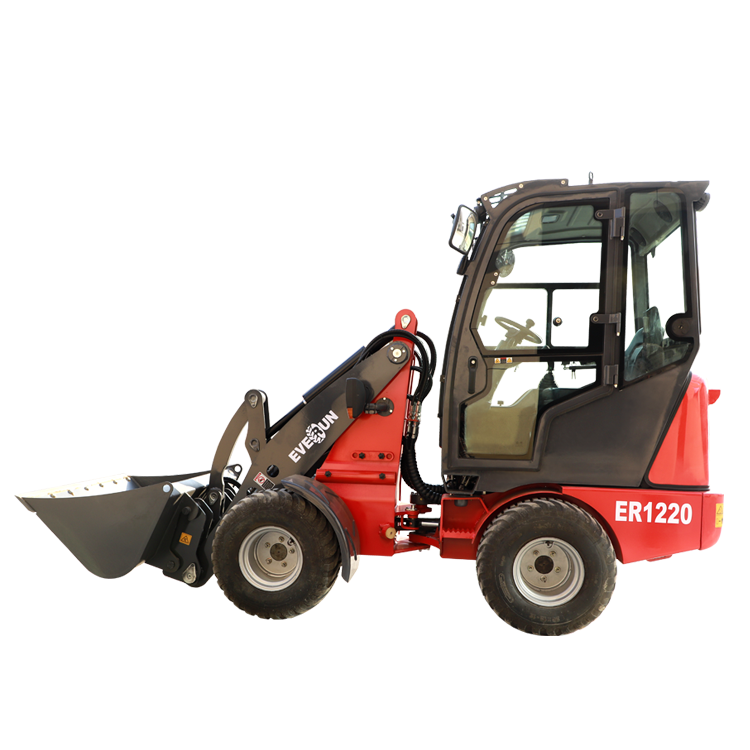

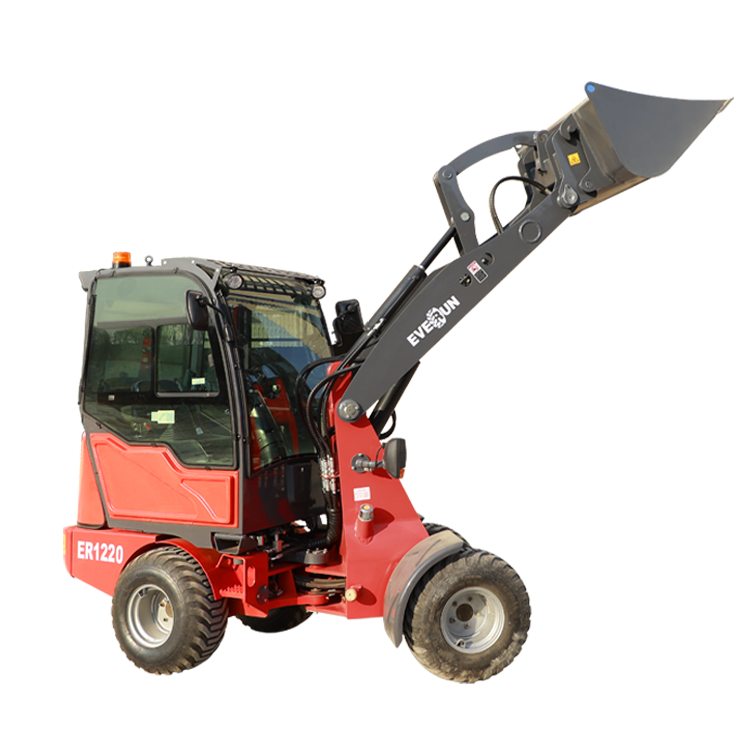

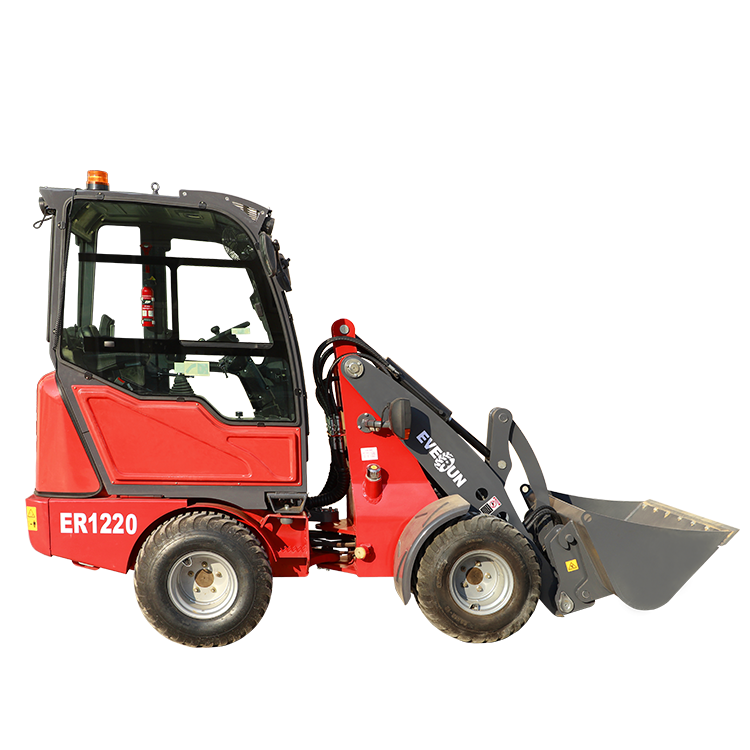

Small Wheel Loaders—ER1220

Specifications | Descriptions | Technical Parameters

Ø  Kubota EuroV/ EPA4 Engine
Ø  Italy Brand hydrostatic system
Ø  Italy Brand 4 wheel driving motor
Ø  Quick hitch
Ø  Electric hand brake, inch function
Ø  Folded canopy, or luxury cab,electric tipping cabin
Ø  Front 2 wheel of the driving motor with service brake

Specifications

Rated Load

1200kg

Overall Weight

1800kg

Standard Bucket Capacity

0.26m³

Descriptions

Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterised the ER series for years and still determine the immense success of the machines. The ER series effortlessly fulfil any work task and work quickly, flexibly and safely – a ER model is simply always ready for use.

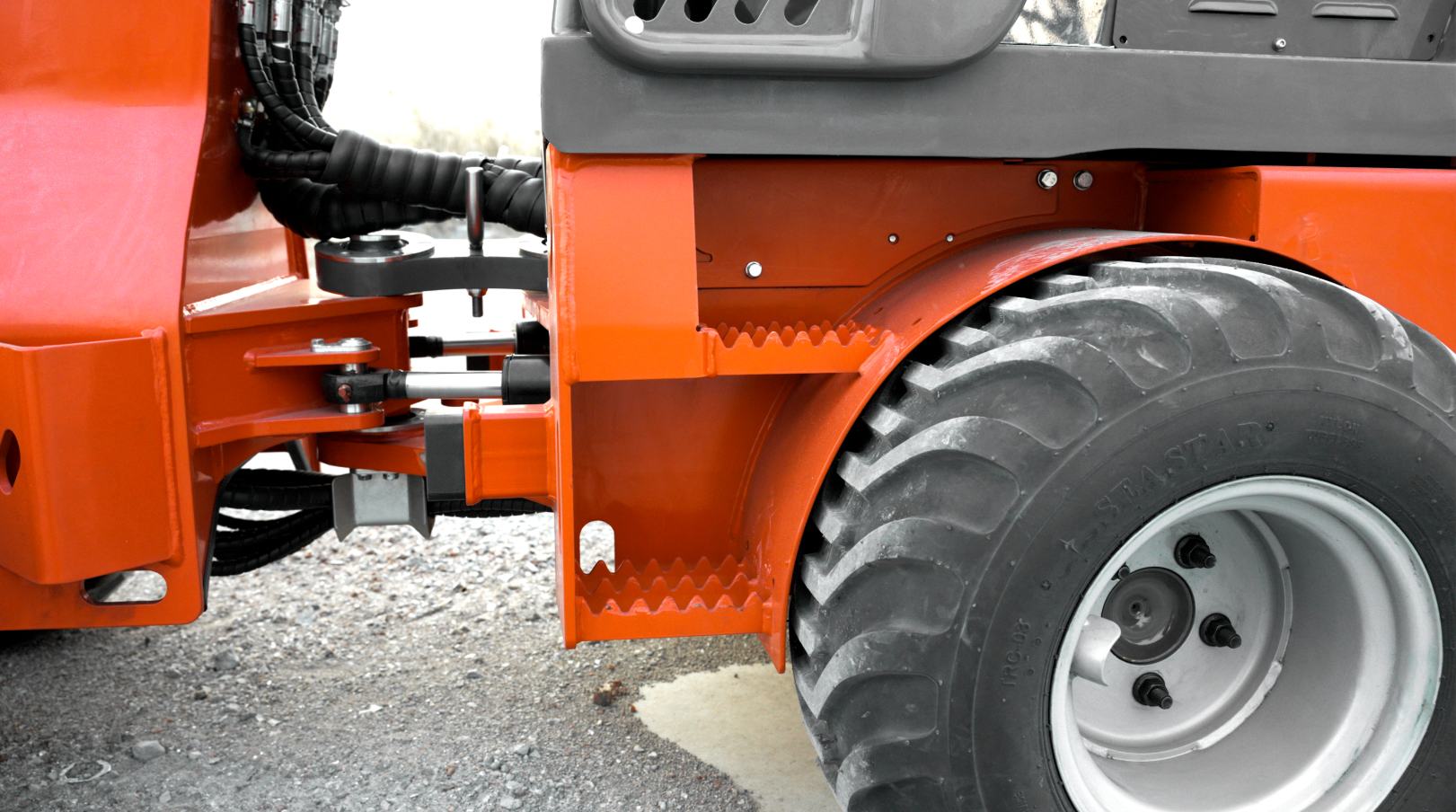

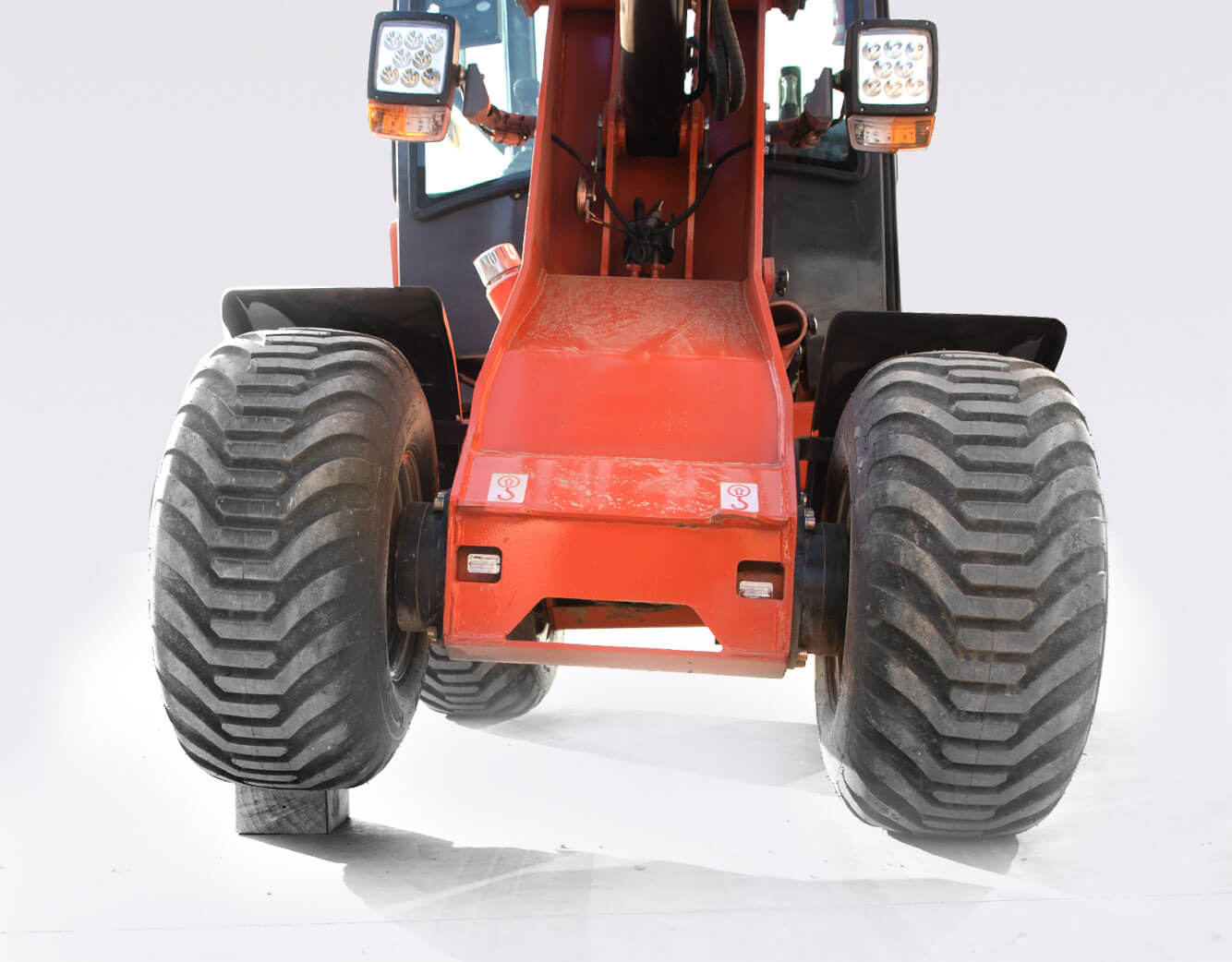

· Articulated pendulum joint

The backbone of the ER series design: the legendary articulated swing joint. All four wheels are in constant contact with the ground and the machine moves with maximum traction. It also makes the machine uniquely manoeuvrable.

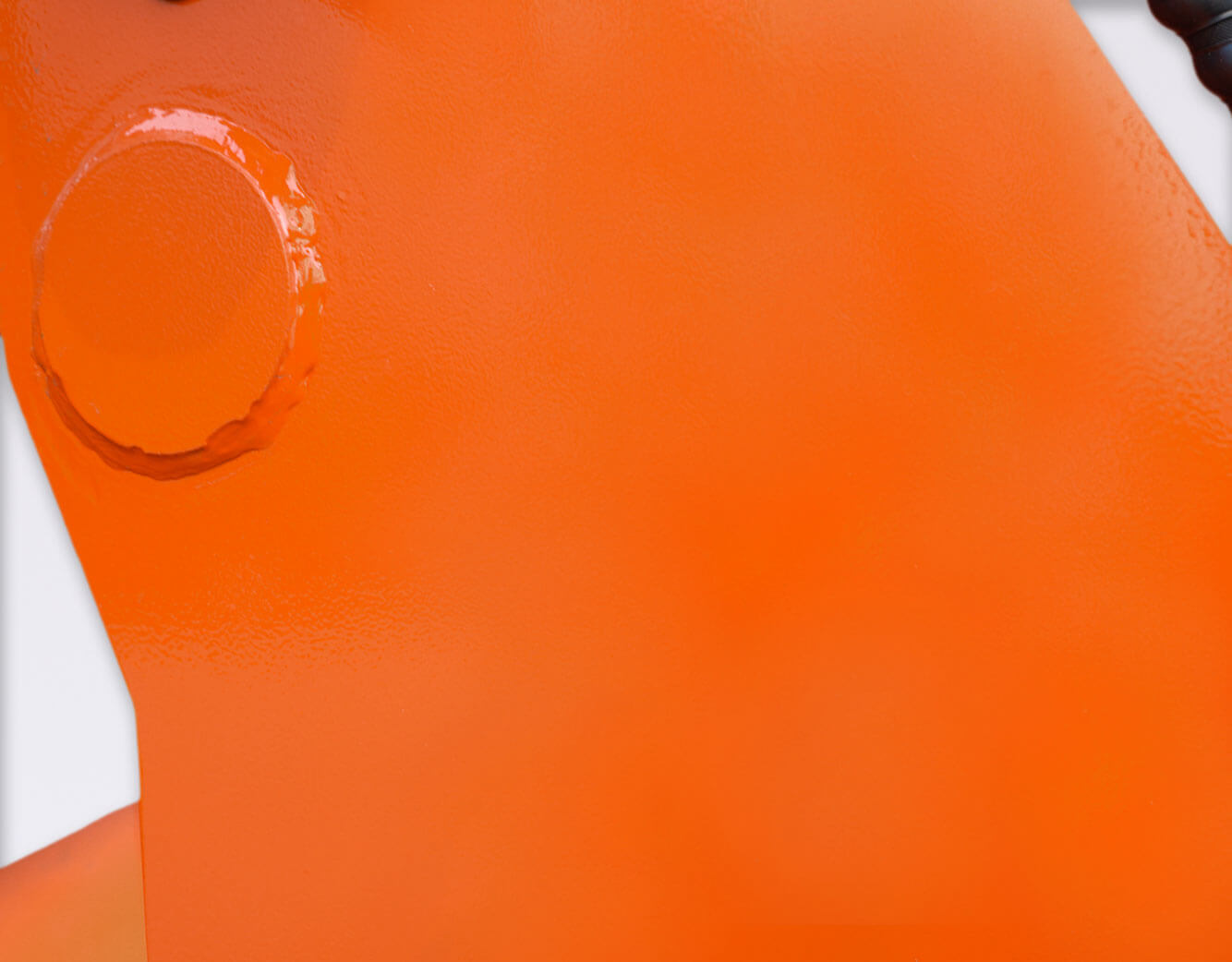

·High quality powder coating

Quality creates added value. A key feature of the EVERUN quality standard is the powder coating, which offers excellent corrosion protection. In contrast to the conventional wet painting, it greatly increases the service life of the machine and is therefore more efficient and also environmentally friendly.

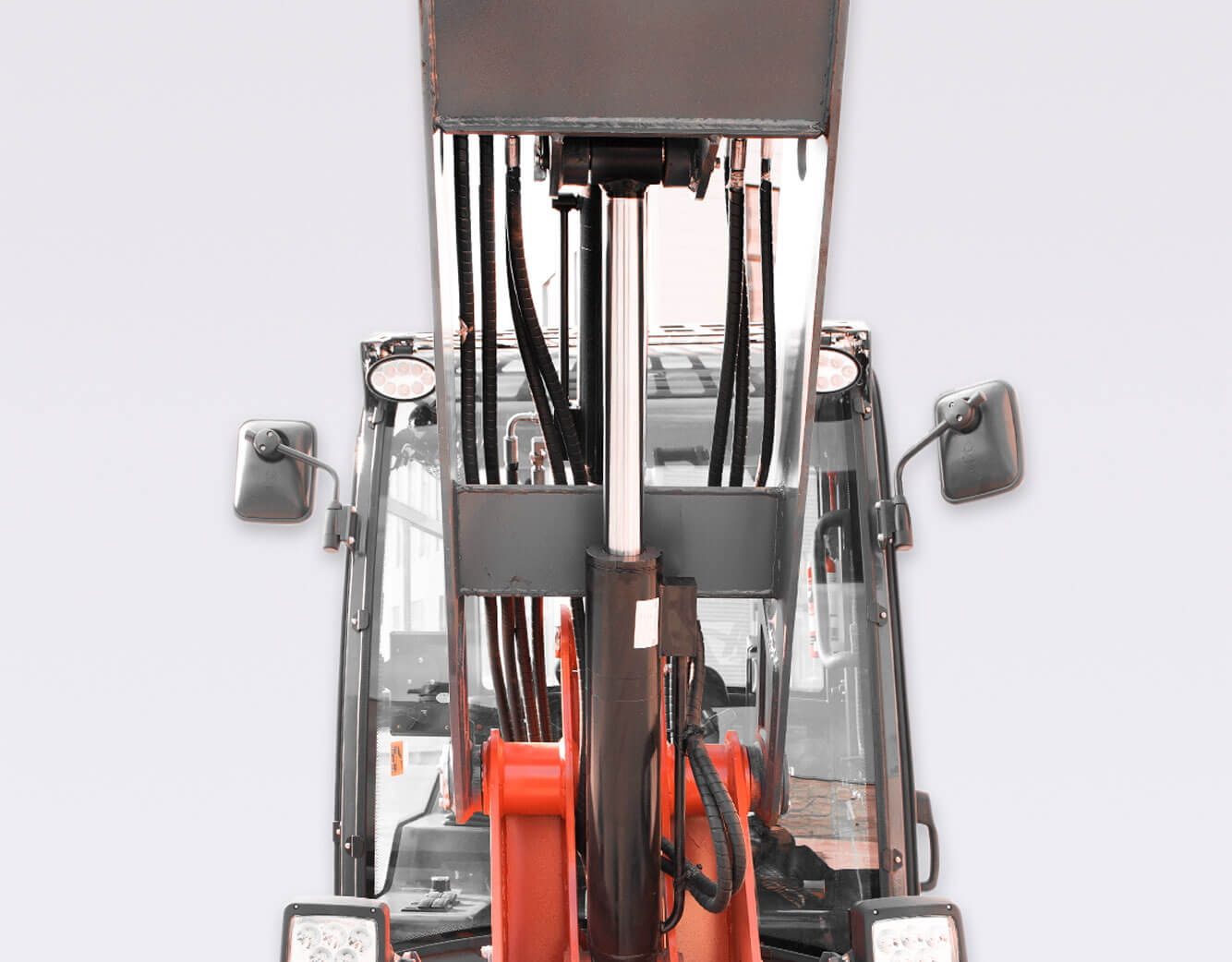

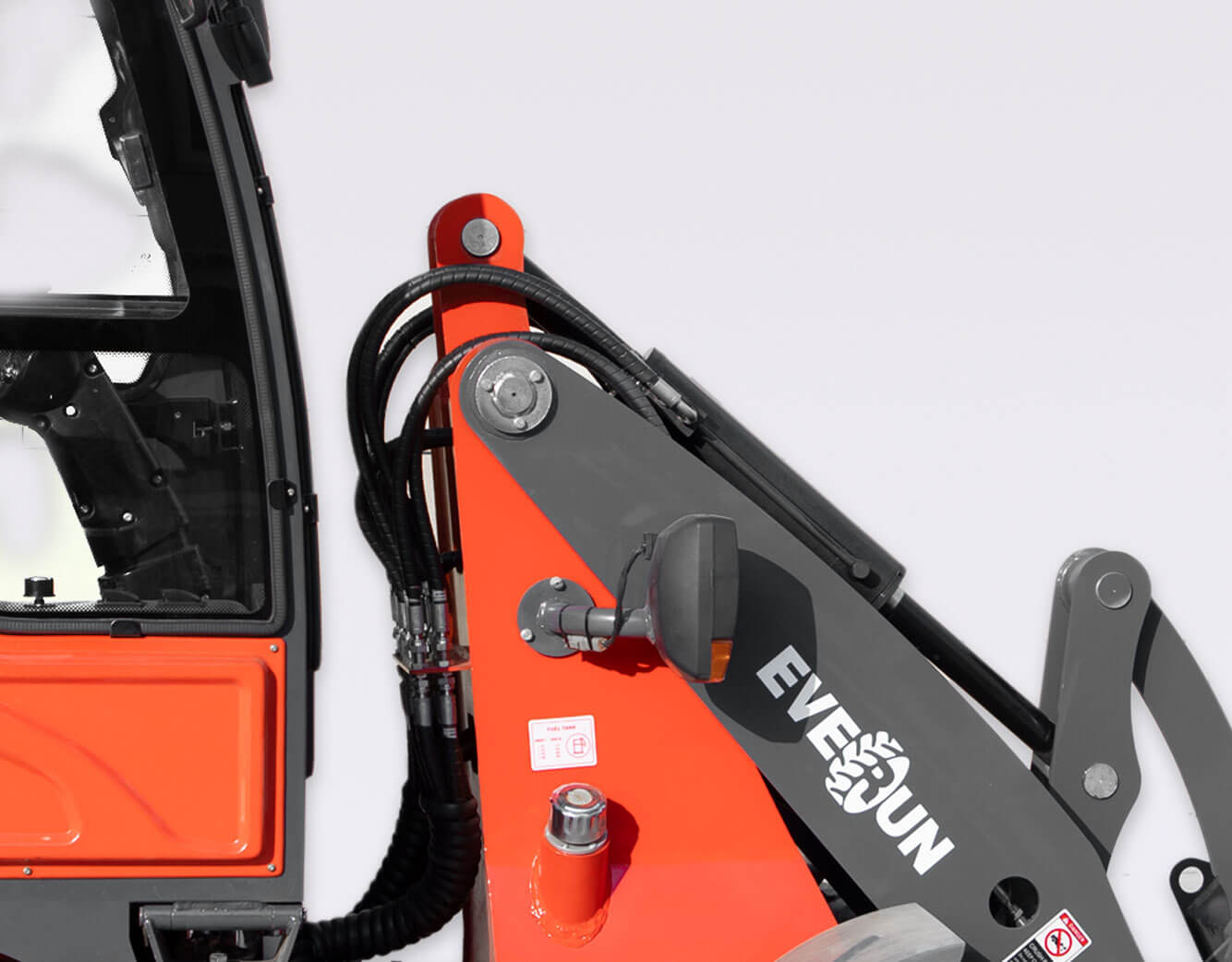

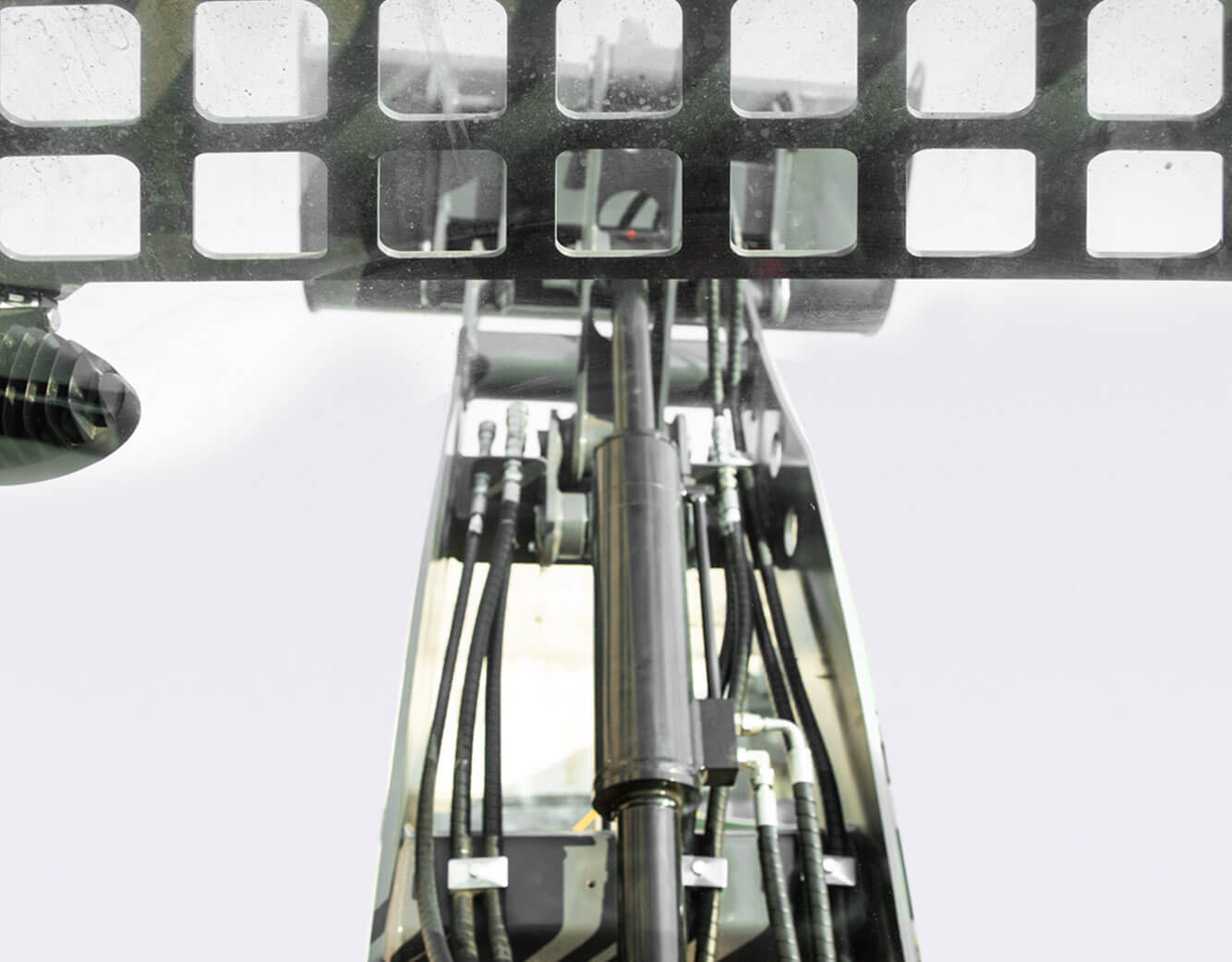

·One strong lift cylinder

Everun always installs one lift cylinder in all wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entyre loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

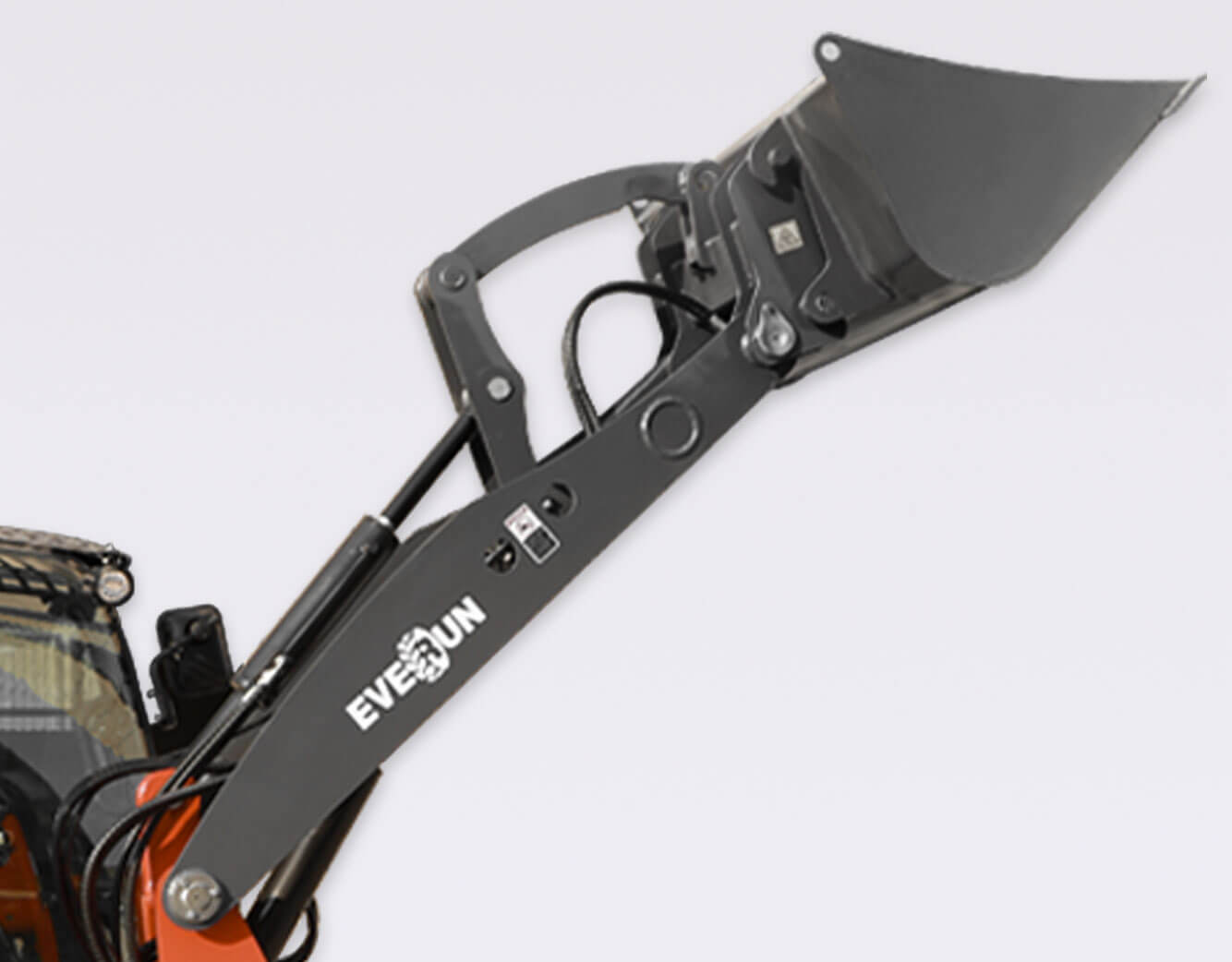

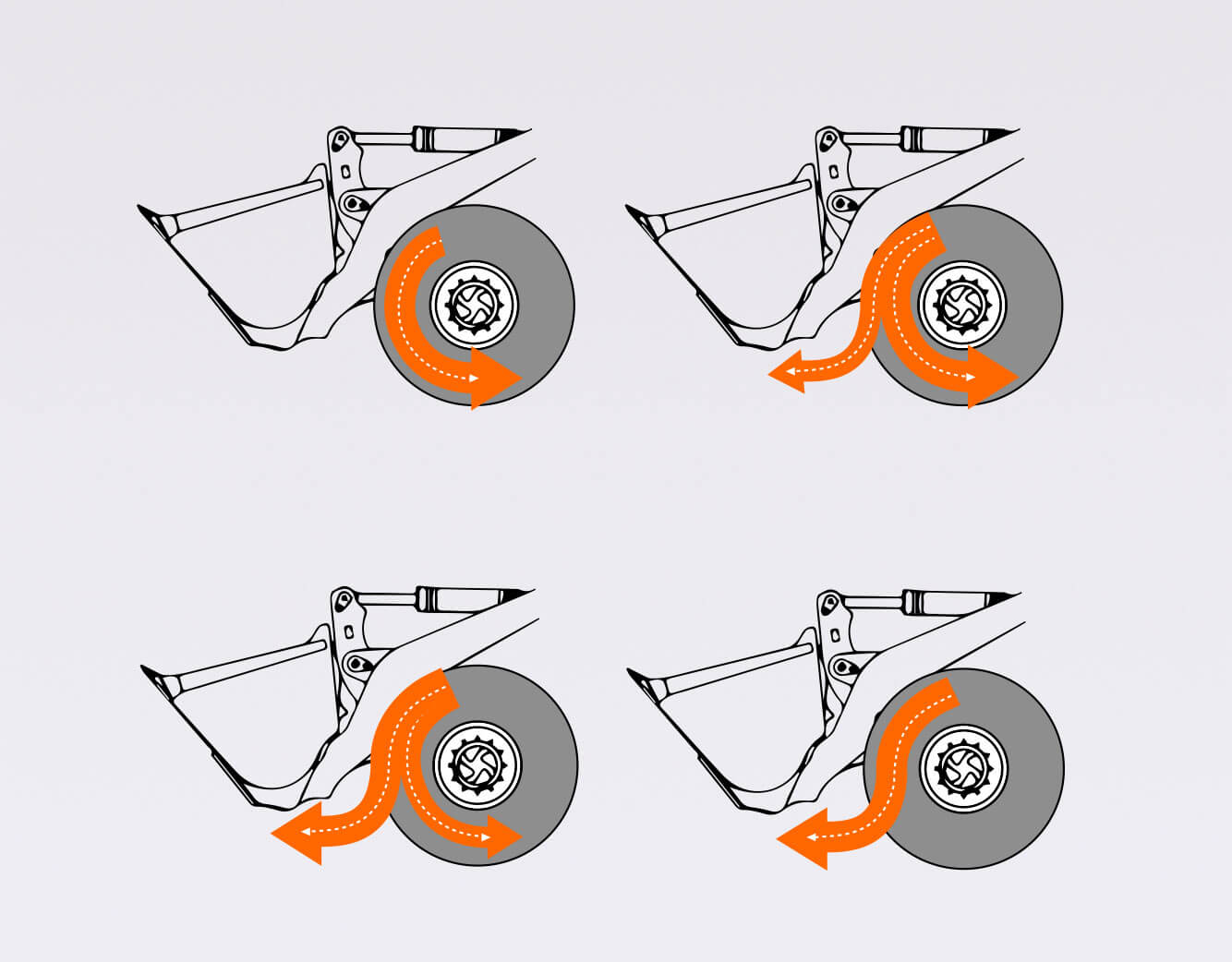

·Perfectly matched P-kinematics

The angled loading arm is designed to be particularly sturdy and torsion resistant. At Everun, the kinematics are adjusted to the size of the machine - this ensures optimal balances of power for every machine. The advantage of P-kinematics lies in the exact parallel motion across the entyre lifting area.

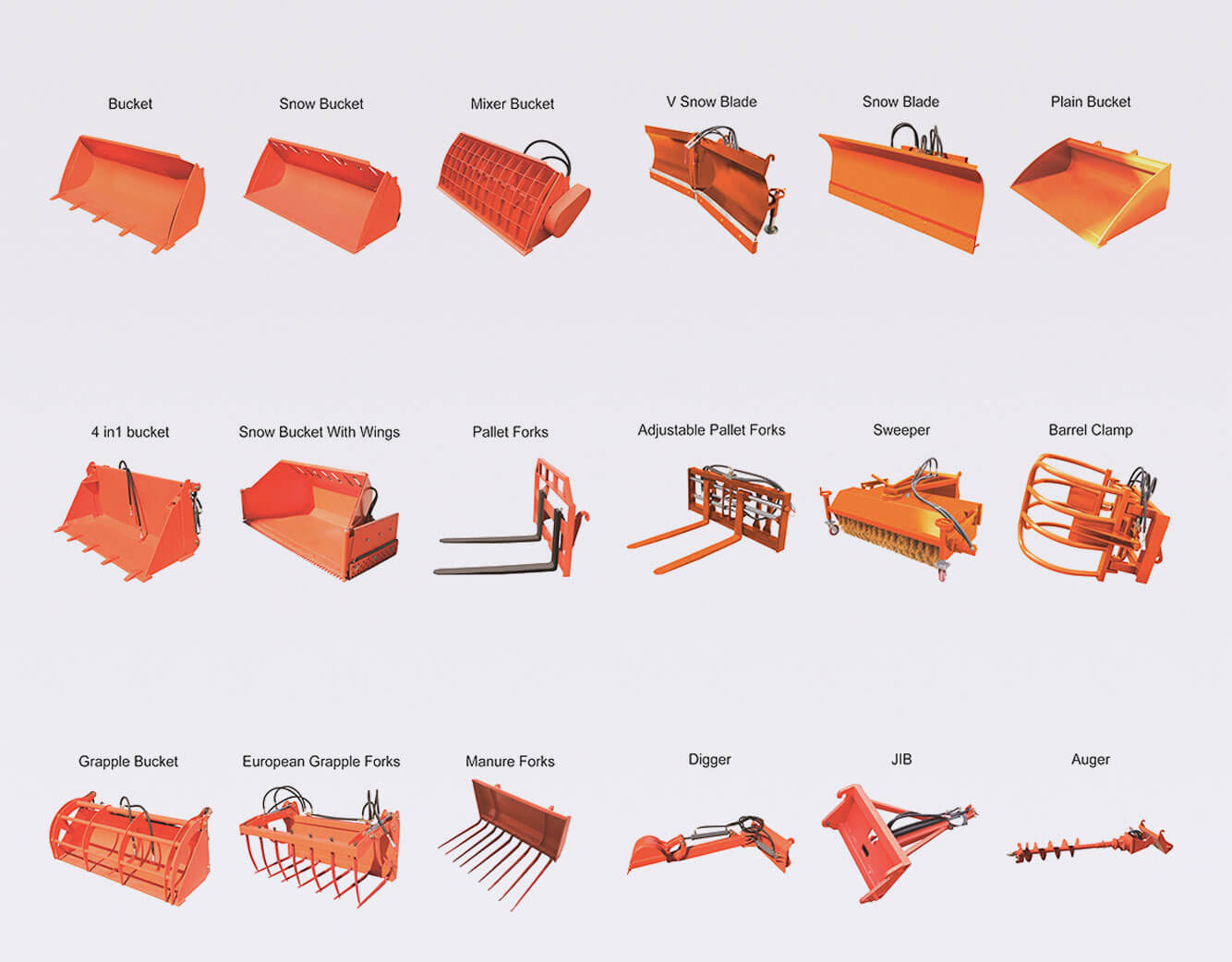

·Large selection of attachment tools

Use your machine as a multi-tool - you have a wide selection of attachments available for your Everun.

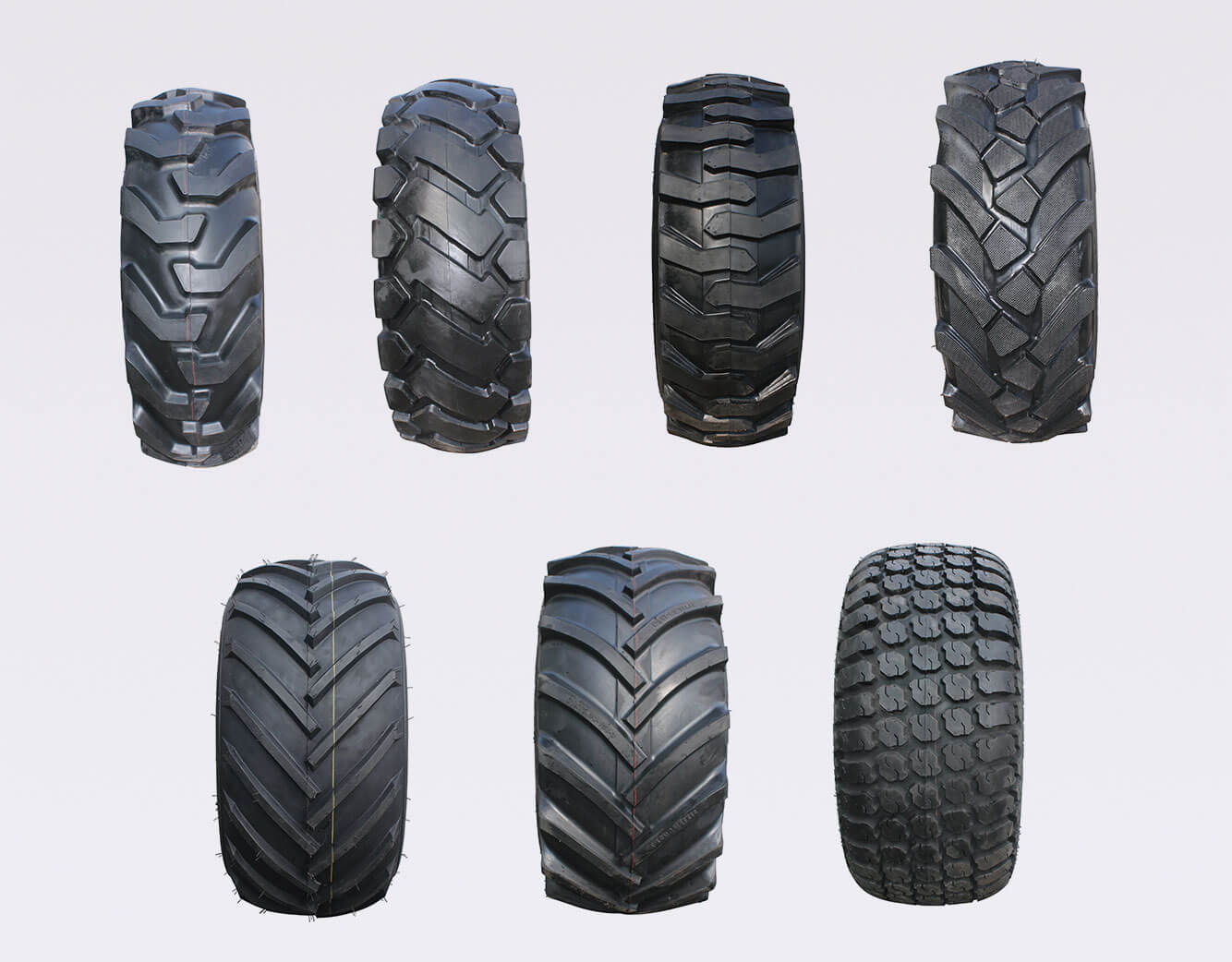

·Large selection of tyres

The optimal tyres for every subgrade - you have a wide selection of different tyres available for your Everun.

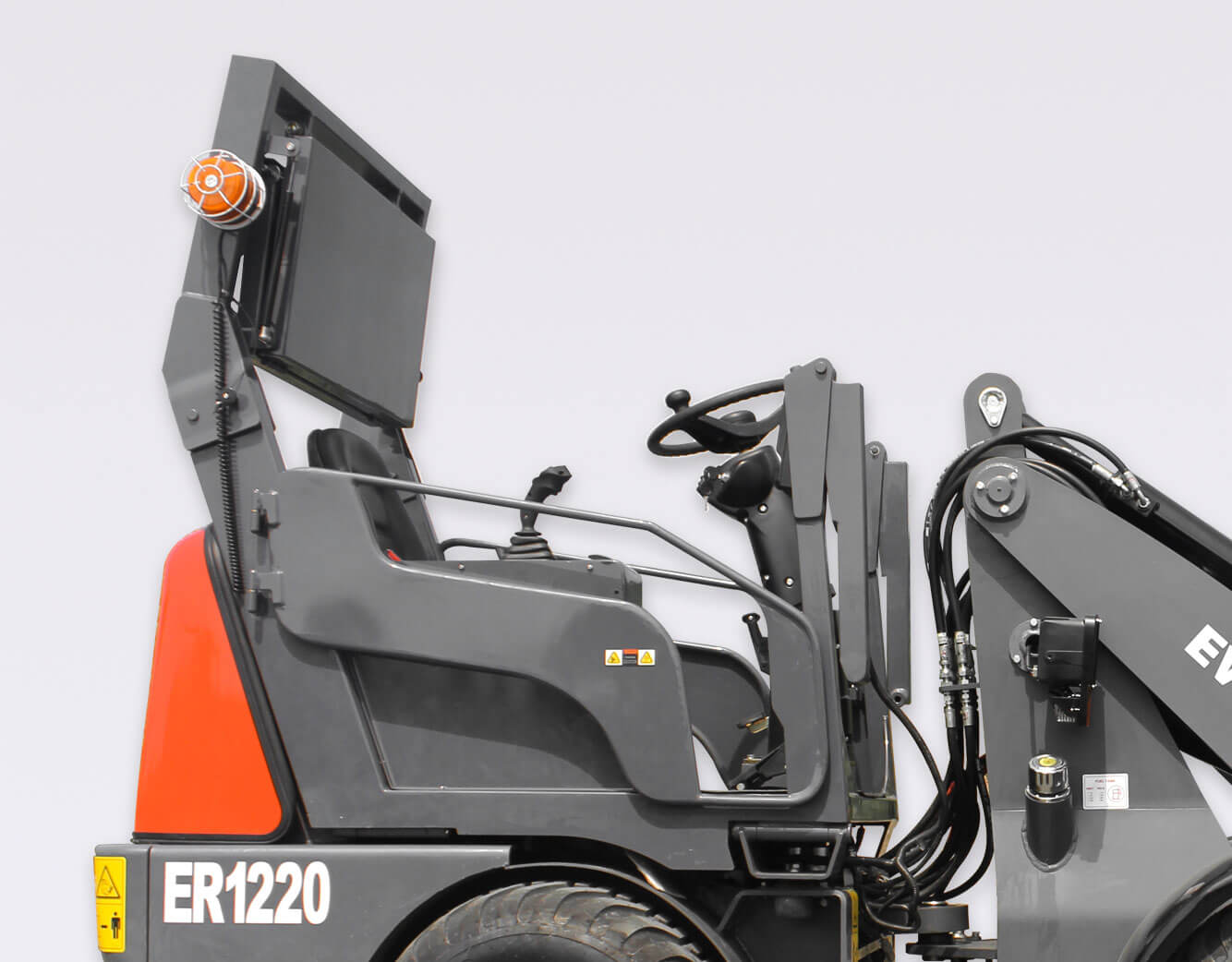

·Foldable canopy eps (Easy Protection System)

Optionally, ER series machine can be equipped with the fold-down canopy eps (Easy Protection System). The eps also meets the current European machinery directive (2006/42/EC) for ROPS and FOPS protection. With a few hand movements, the eps (Easy Protection System) can be prepared for a low clearance height.

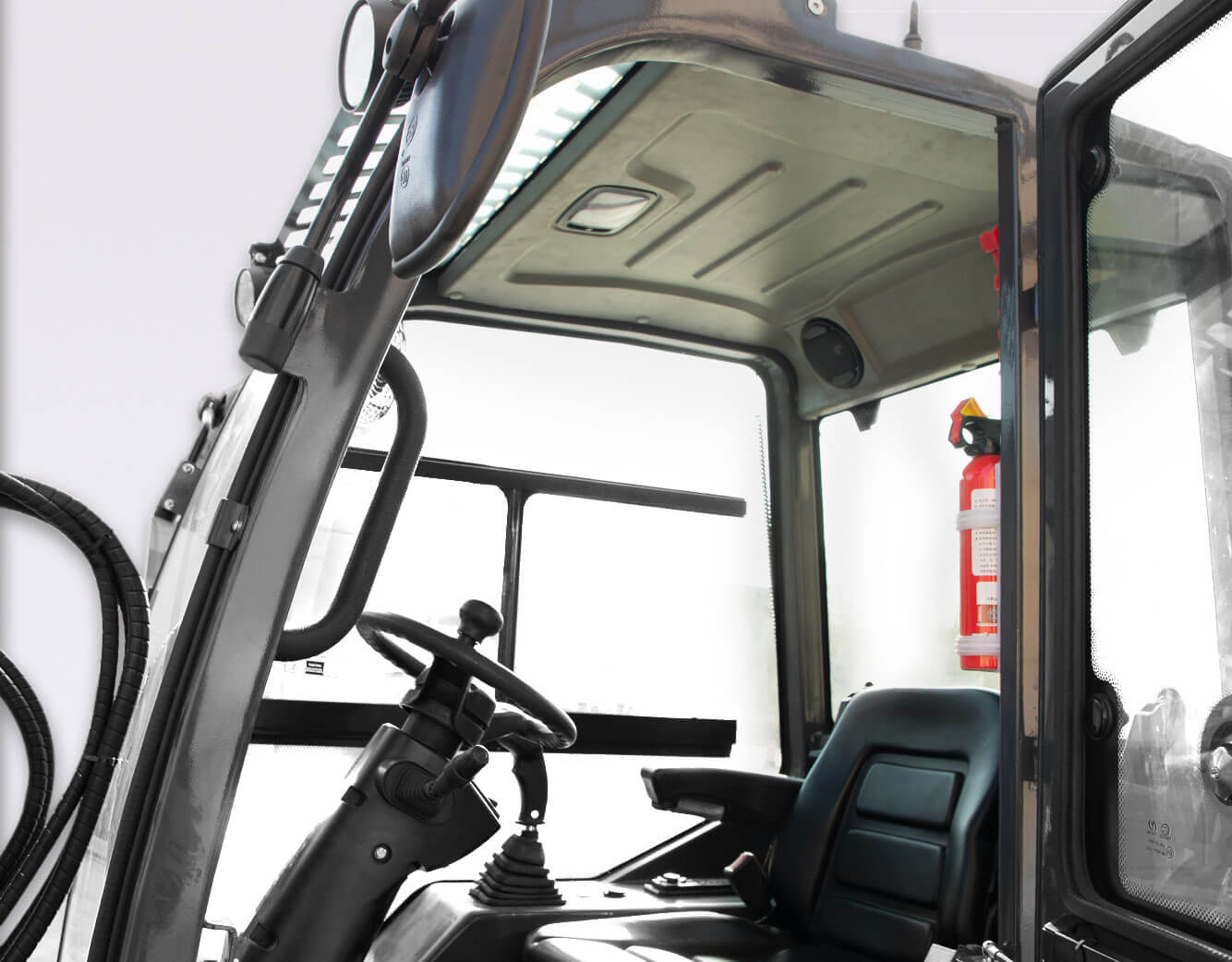

·Comfortable cabin

The spacious cabin meets the current European machinery directive (2006/42/EC) according to ROPS and FOPS protection and offers plenty of headroom and elbow room. The complete glazing provides the operator with an excellent overview of the attachment and the entyre working area.

·Quick and easy tool change

Thanks to the hydraulic quick-change system, attachments can be easily and conveniently exchanged. In this way, your machine is again ready for application at once. This increases productivity and raises efficiency. The exchange of the tool takes place through 2-hand operation, which makes an unwanted change impossible - safety always comes first at Everun!

·Tiltable driver's cab

Unique at Everun: The tiltable driver's cab allows for easy access to the engine, hydraulic system and electrical system. Maintenance and service made extremely easy!

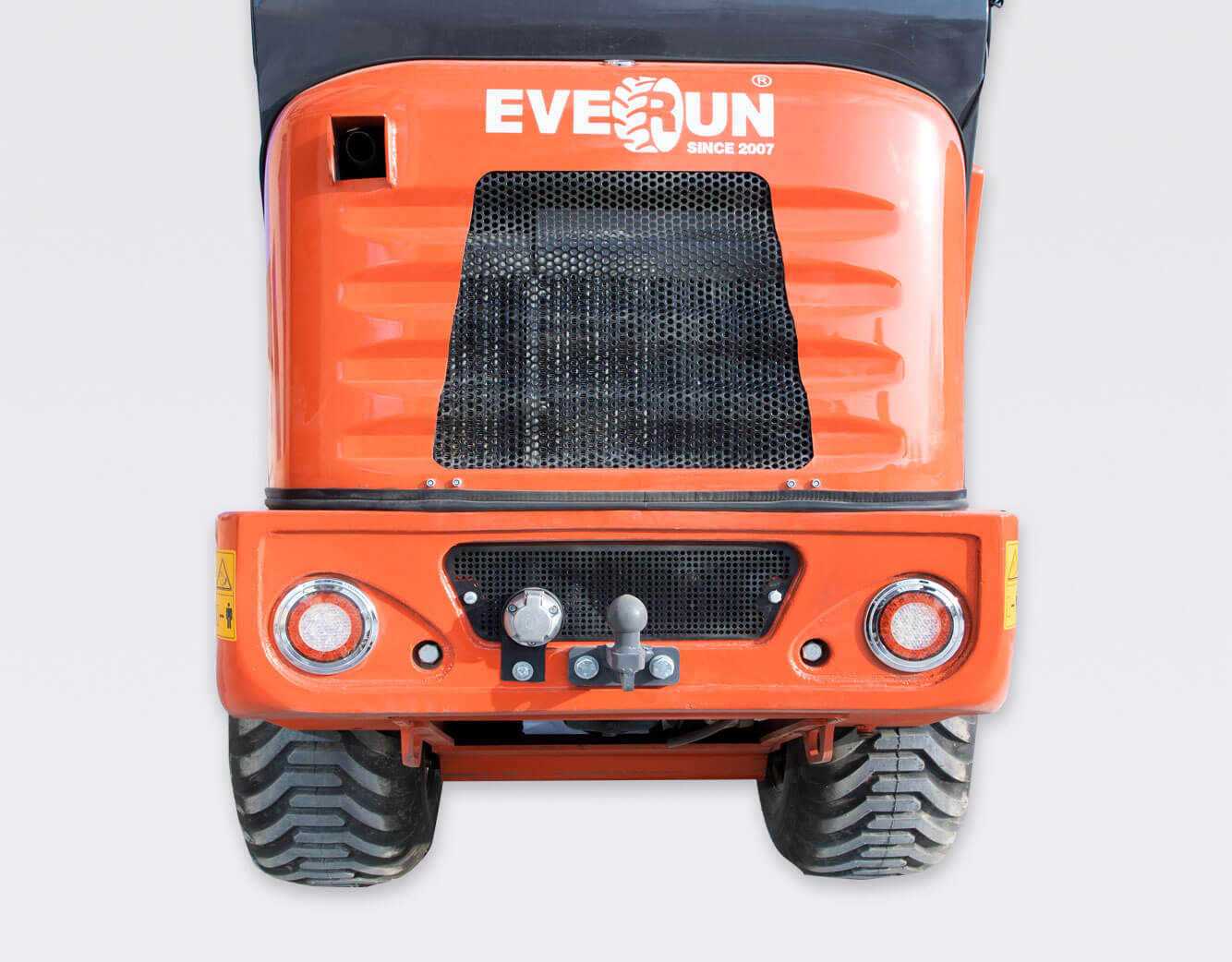

·Easy-to-open engine hood

The engine hood can be opened backward with just one handle for regular service and maintenance work. The hydraulic oil tank, air cleaner, engine oil fill opening, oil dipstick and cooling water are therefore quickly and easily accessible.

·Short hydraulic hose lengths

Everun machines have short hydraulic hose lengths - the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entyre hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

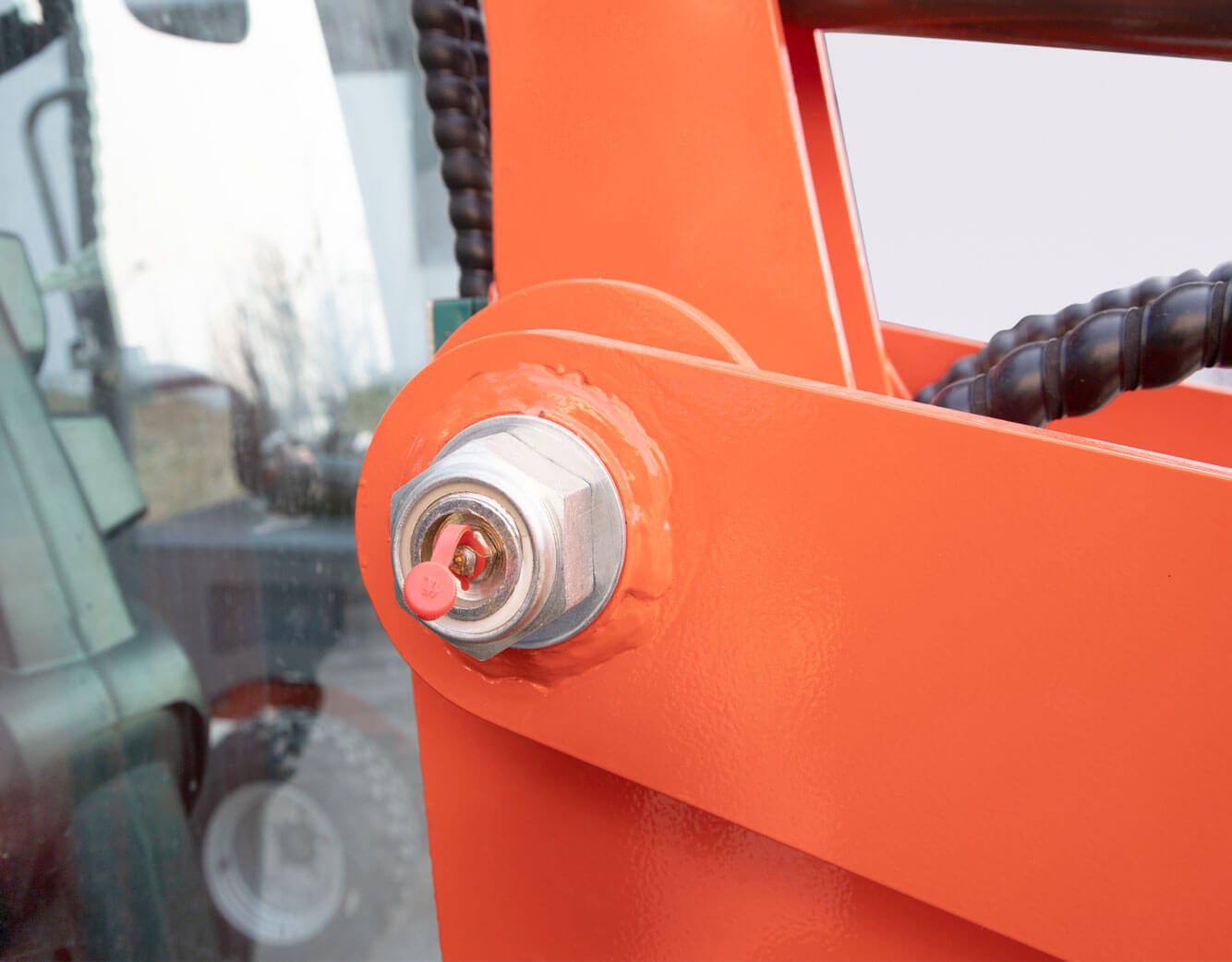

·Easily accessible lubrication service points

Regularly lubricating all lubrication service points of the machine is essential for correct and effective maintenance and therefore for the value preservation of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Everun. Optionally, a central lubrication system is available that takes over the lubrication for you.

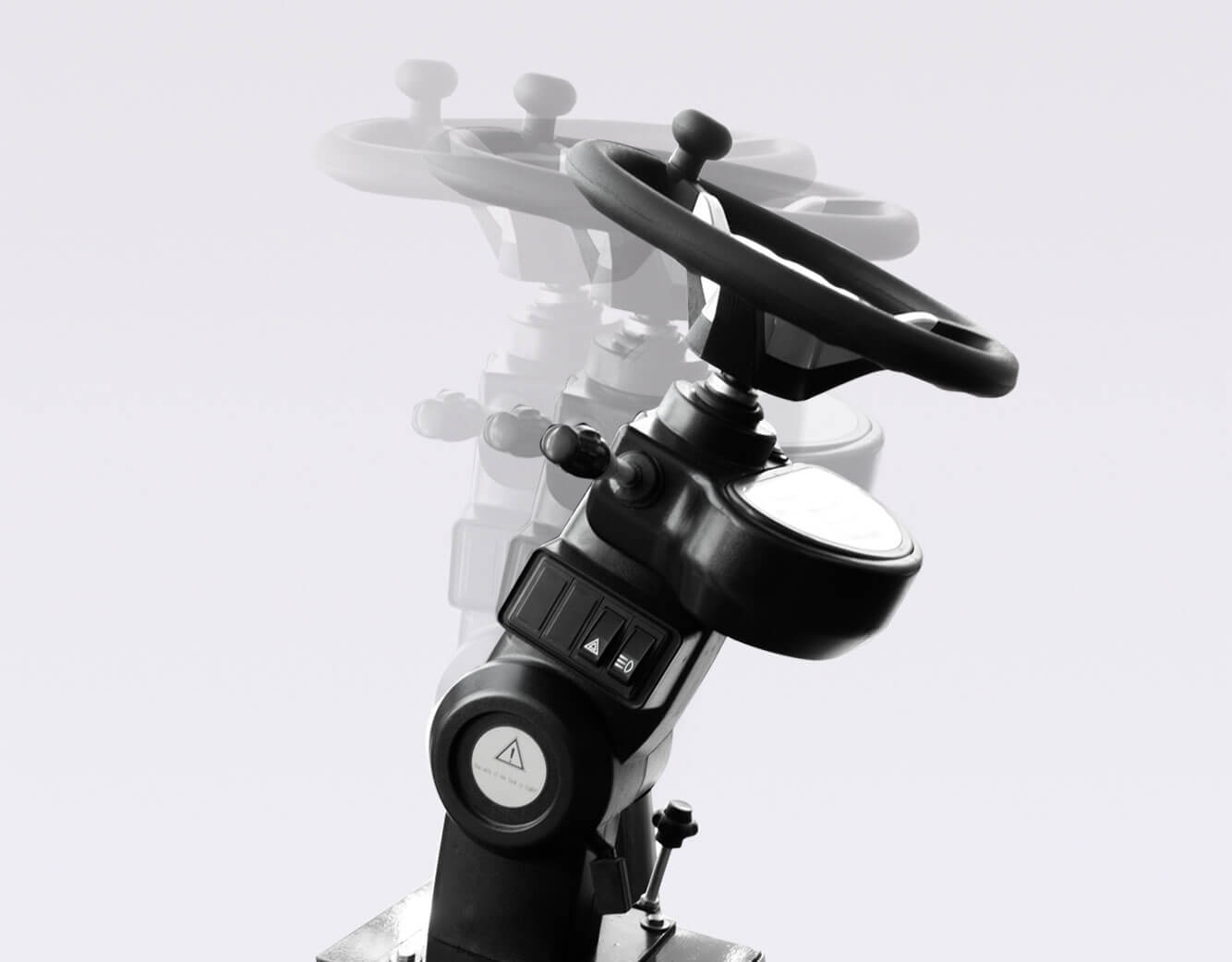

·Adjustable steering column

The steering column can be individually adjusted according to the operator's request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

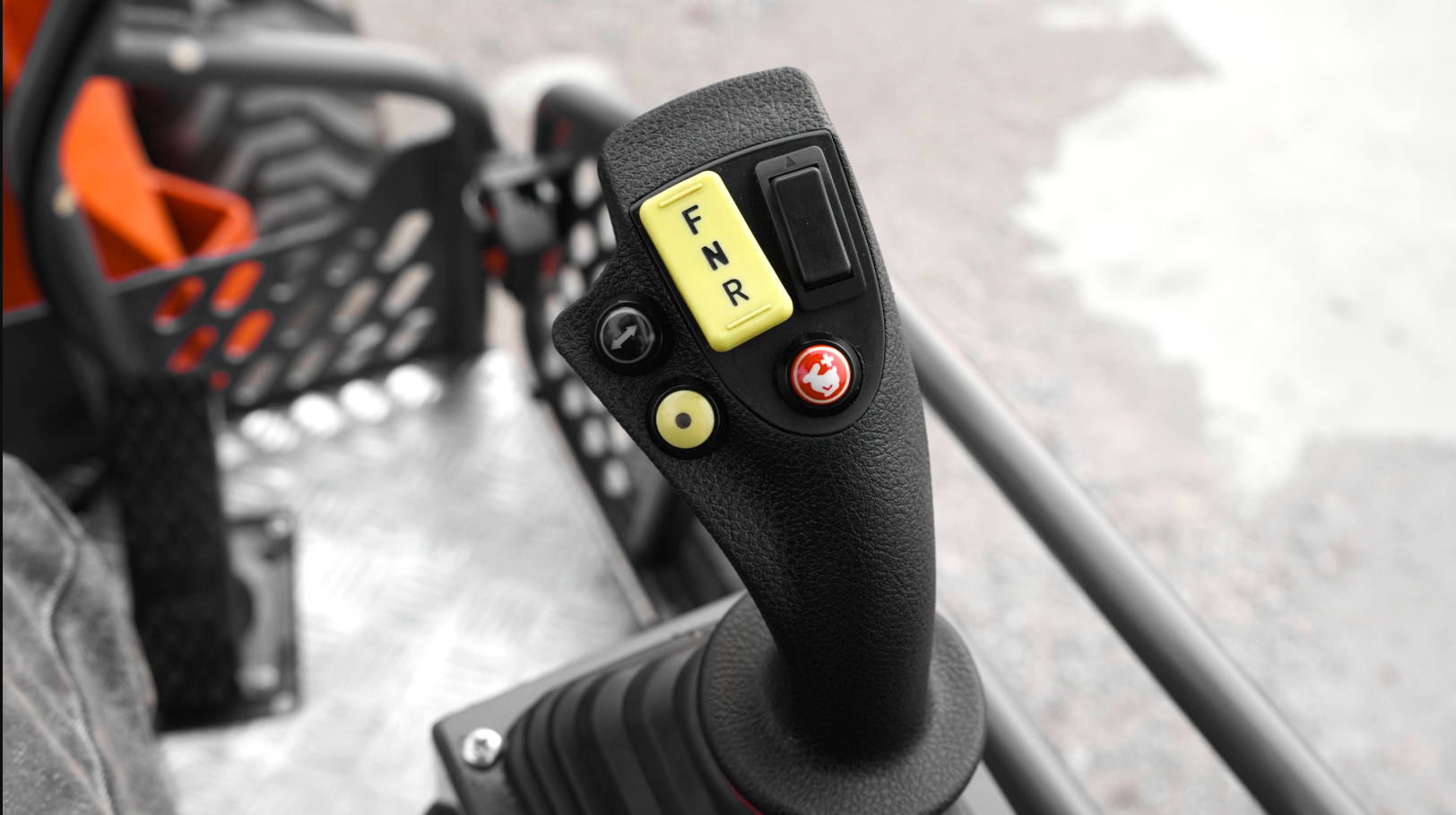

·Ergonomic joystick

The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. You therefore always have the machine and the key functions under control.

·Good all-round visibility - ergonomic workplace

Plenty of legroom, clearly arranged instrument clusters, a comfortable driver's seat and an optimal view of the attachment. A workplace that motivates and fully supports the operator.

·Pleasant working environment

The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles.

·Brake-inch pedal

The hydrostatic all-wheel drive is combined with the brake pedal for Everun machines. By "inching," this makes it possible to crawl until the travelling operation comes to a standstill. With the partially depressed brake-inch pedal , you can drive slowly in crawl speed at full engine speed precisely to the millimetre and at the same time lift quickly. If the pedal is pressed further, the machine is braked. The advantage of the brake-inch pedal lies in the optimal power-output distribution of the engine rated power. In addition, it is not possible to stall the machine.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ER1220
Rated Load 1200kg
Max. Lifiting Capacity 1200kg
Overall Weight 1800kg
Rated Bucket Capacity 0.26m³
Maximum Tractive Force 12kn
Maximum Breakout Force 15kN
Maximum Gradeability 21°
Maximum Dump Height 1920mm
Maximum Dump Reach 600mm
Overall Dimension (L×W×H) 3600*1200*2170mm
Minimum Turning Radius(outside of wheels) 2420mm
Oscillation Angle
Engine Model KUBOTA D1105
Engine Type lnline Water Cooled, Four Stroke
No. of Cylinder-Bore/Stroke 3—78×78.4mm
Displacement 1.123L
Rated Power 18.2kw
Ldle Speed 850-900r/min
Rated Speed 3000r/min
Maximum Torque N.m @Speed 70.4@2200r/min
Type Closed Piston Pump
Gear Shift Electric, Stepless
Maximum Speed L0-11 H 0-22
Ground Clearance 210mm
System Working Pressure 19MPa
Boom Lifting Time 3.2s
Total Time 6.3s
Fuel Tank Capacity 40L
Function of Leveling Automatically yes
Service Brake Hydrostatic Brake
Type Specification 26*12.12
Front Tyre Pressure 350kPa
Rear Tyre Pressure 350kPa
