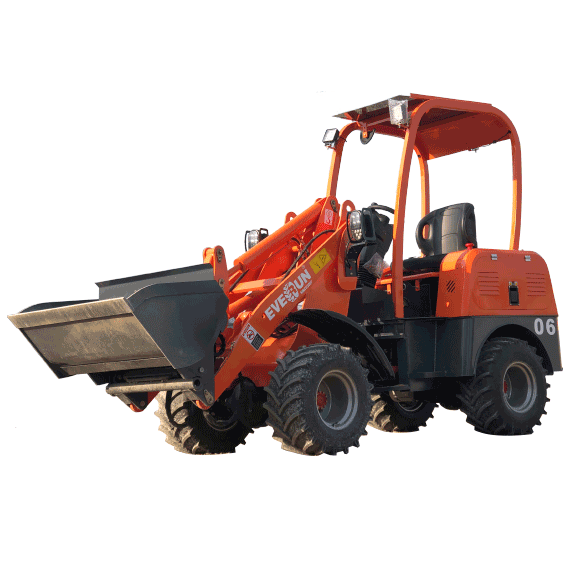

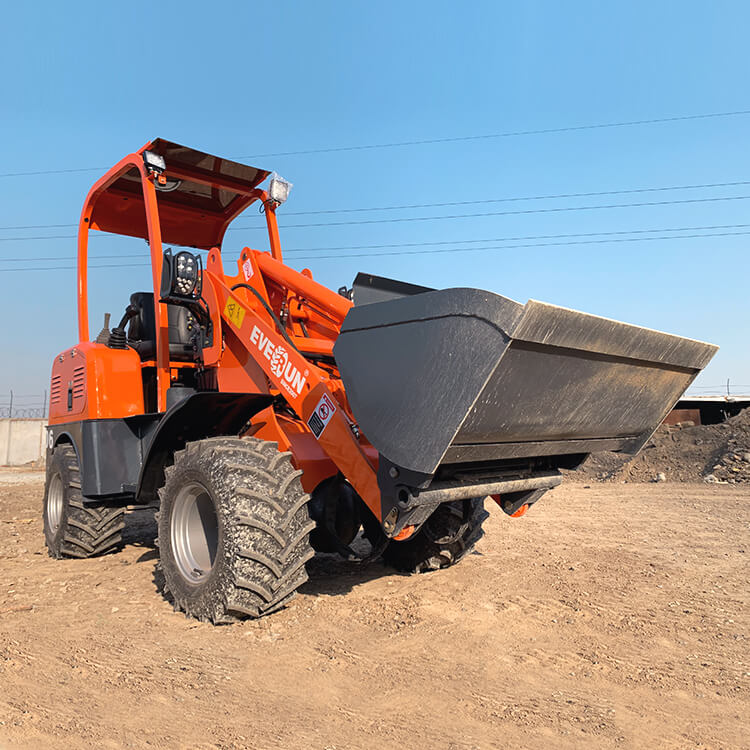

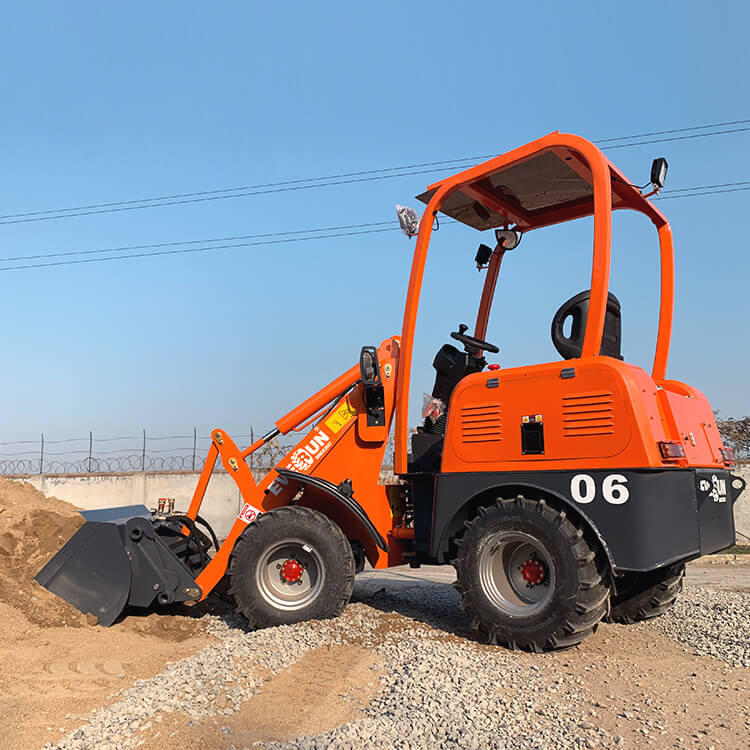

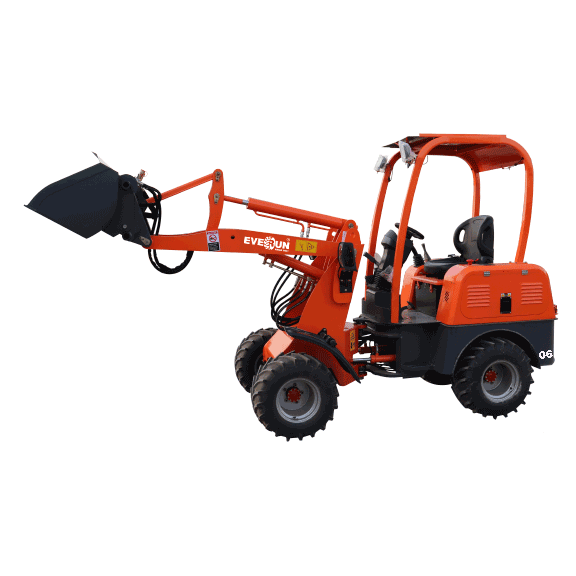

ER Electric Wheel Loader—EREL06

Specifications | Descriptions | Technical Parameters

1. Original electric controller from USA Curtis brand, Quality No 1 and free warranty all over the world.
2 . 4 wheel drive double driving AC motor. Double gearbox. Strong performance on bad road.
3. Lead acid battery or Lithium battery both available for customer special working situations.
4. The power by full electric, so it could be used in everywhere also without any limit of emission rules.
5. Very narrow aisle turning radius.
6. Three way or four way or five way multifunctional hydraulic lines for different attachments.
7. Agri tyre or normal tyre available for customer.
8. Low height which can across most warehouse.

Specifications

Rated Load

600kg

Overall Weight

1930kg

Working Time

5~6 hours

Descriptions

Compact design, low centre of gravity, tight turning radius and powerful performance – these features have characterised the Hoftrac series for years and still determine the immense success of the machines. The Hoftracs effortlessly fulfil any work task and work quickly, flexibly and safely

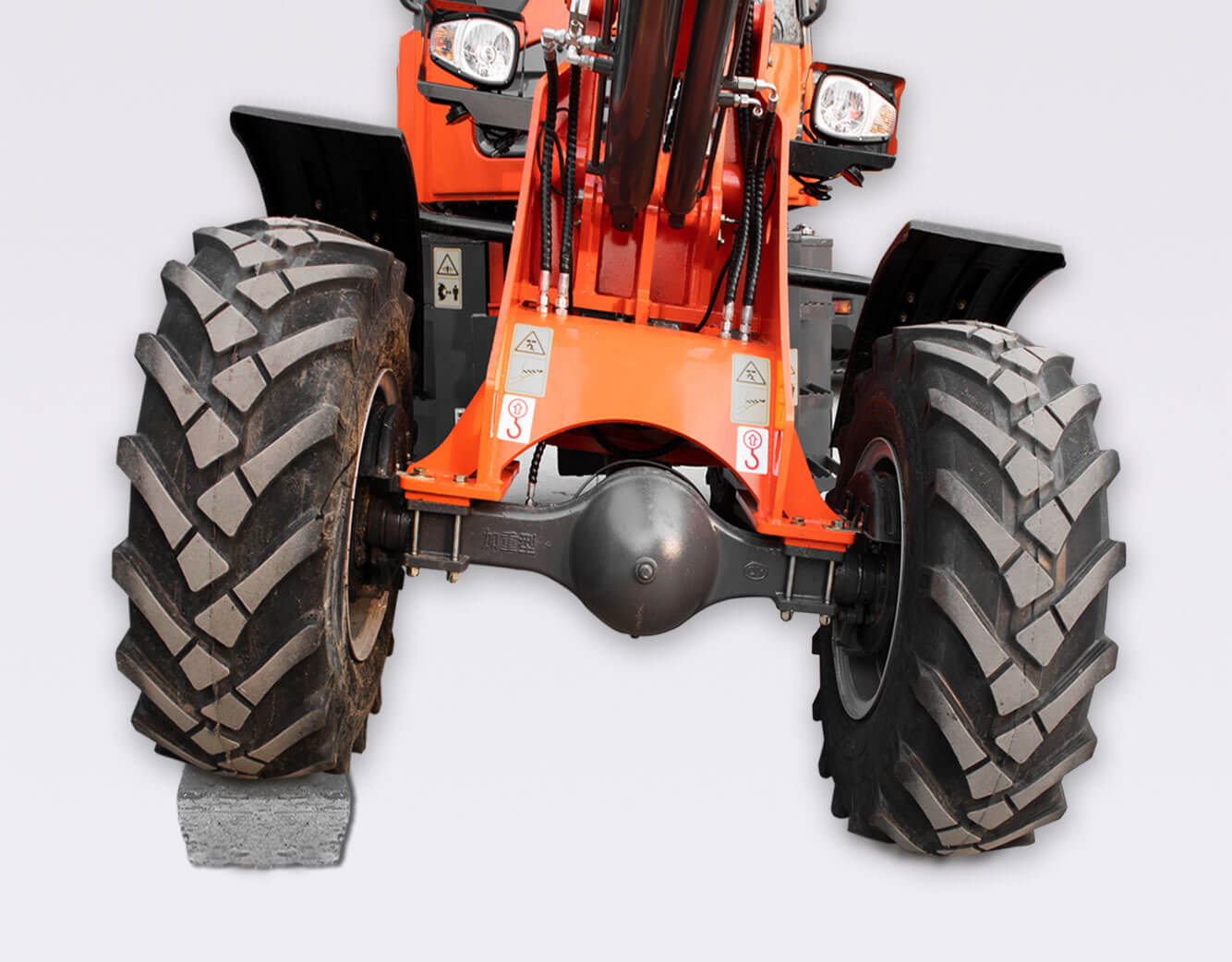

The backbone of the EVERUN design

The backbone of the EVERUN design. The legendary articulated pendulum joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

High quality powder coating

Quality creates added value. A key feature of the EVERUN quality standard is the powder coating, which offers excellent corrosion protection. In contrast to the conventional wet painting, it greatly increases the service life of the machine and is therefore more efficient and also environmentally friendly.

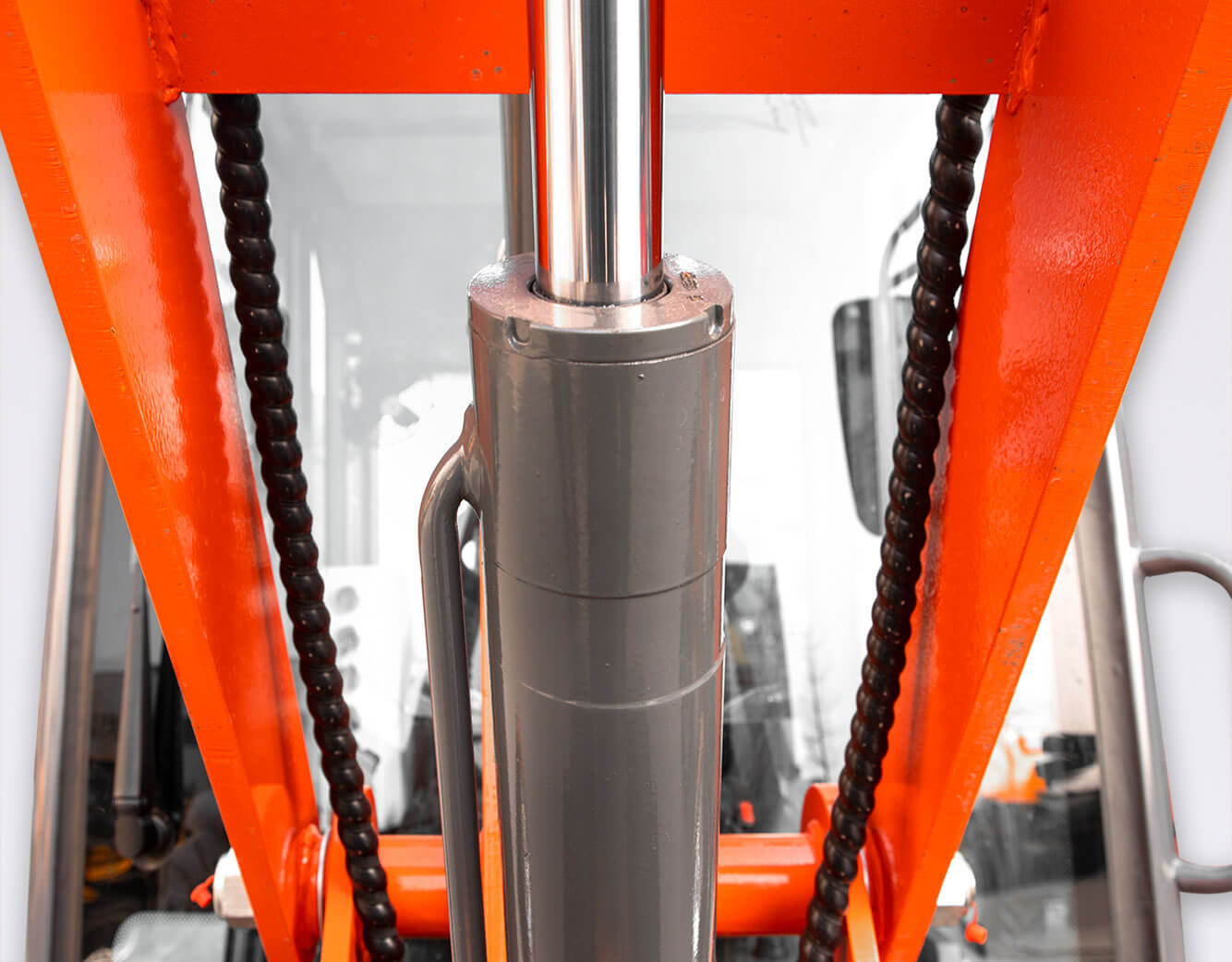

One strong lift cylinders

EVERUN always installs one lift cylinders in all Hoftrac loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entyre loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

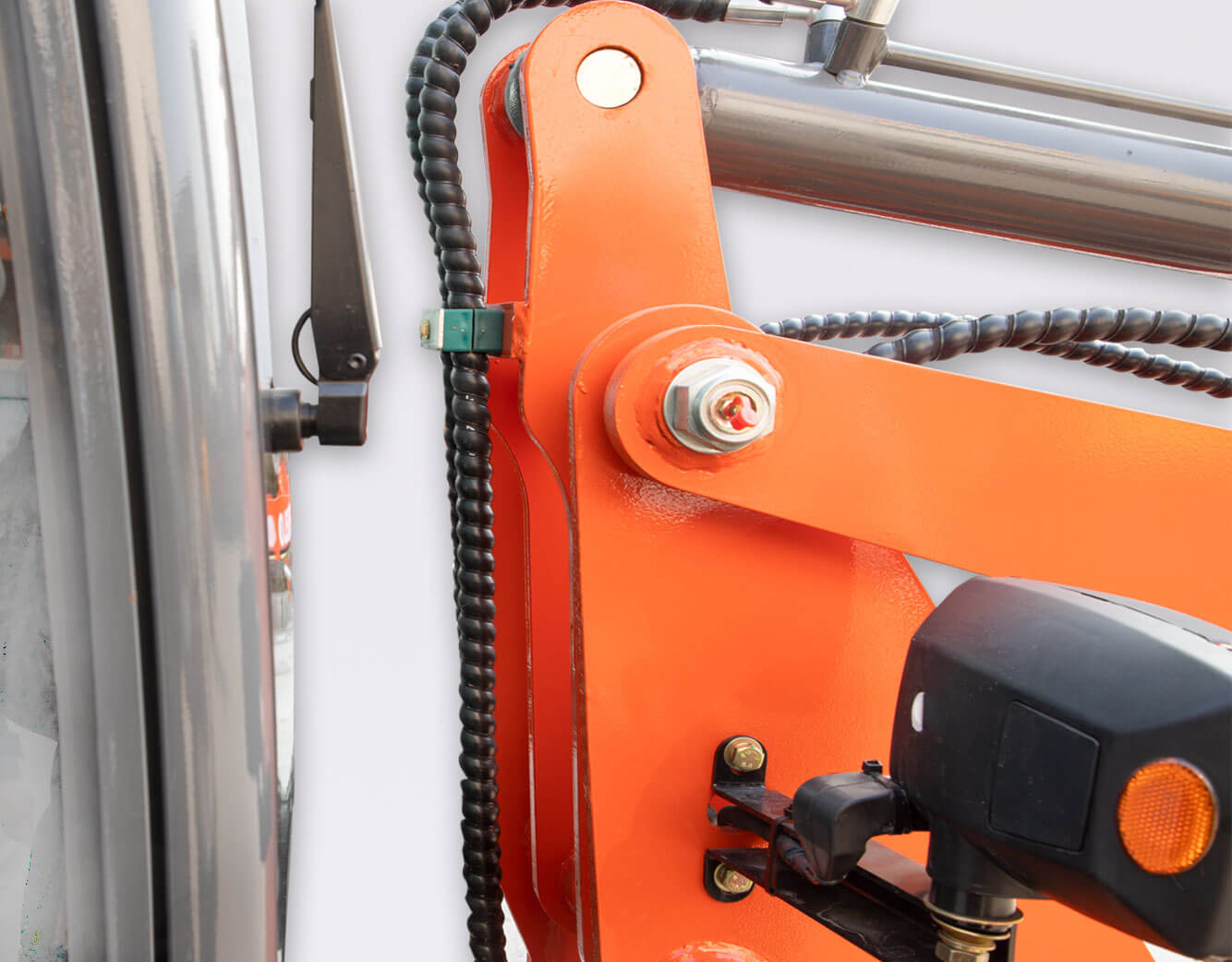

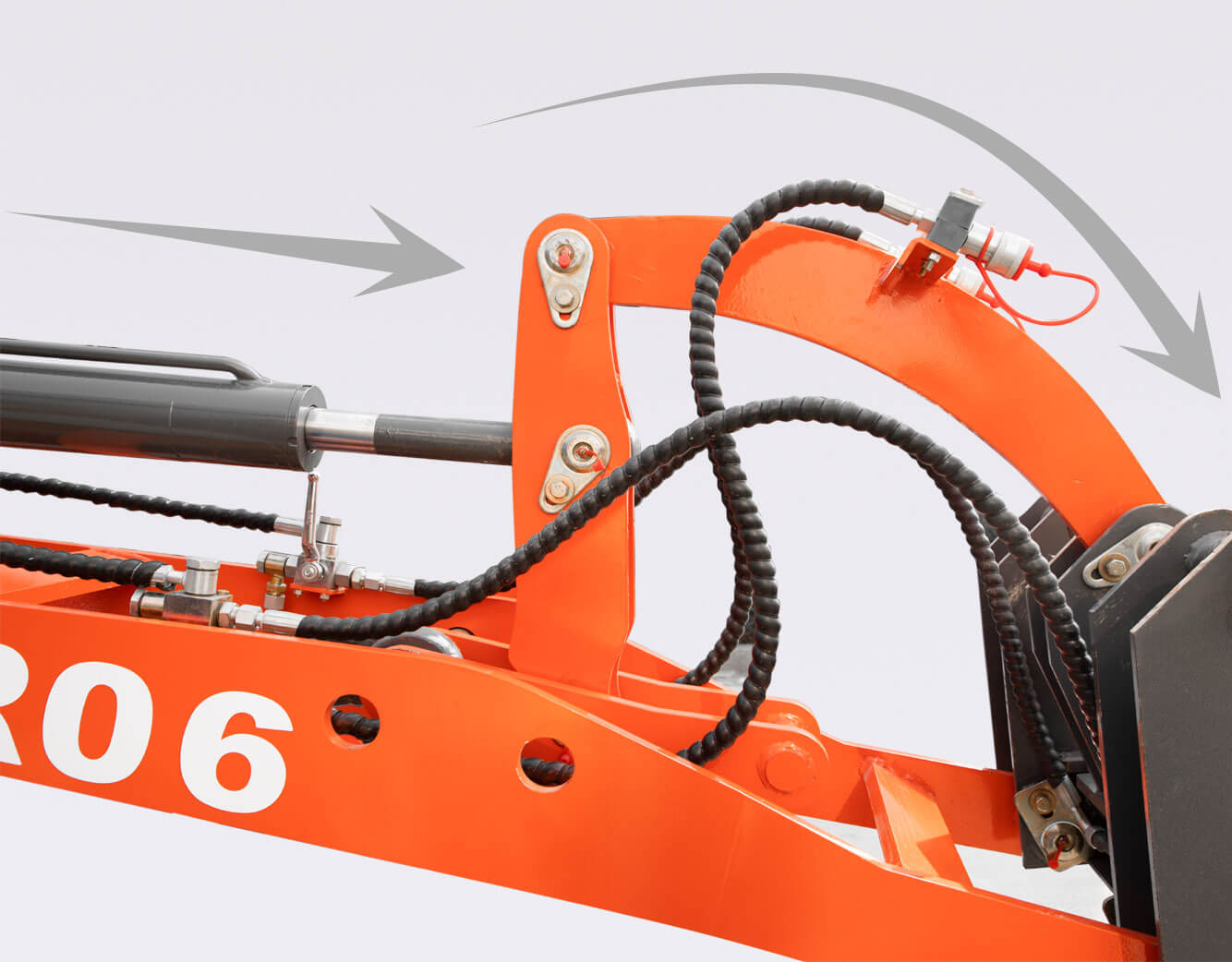

Perfectly matched P-kinematics

The angled loading arm is designed to be particularly sturdy and torsion resistant. At EVERUN, the kinematics are adjusted to the size of the machine - this ensures optimal balances of power for every machine. The advantage of P-kinematics lies in the exact parallel motion across the entyre lifting area.

Large selection of attachment tools

Use your machine as a multi-tool - you have a wide selection of attachments available for your EVERUN.

Large selection of tyres

The optimal tyres for every subgrade - you have a wide selection of different tyres available for your Weidemann.

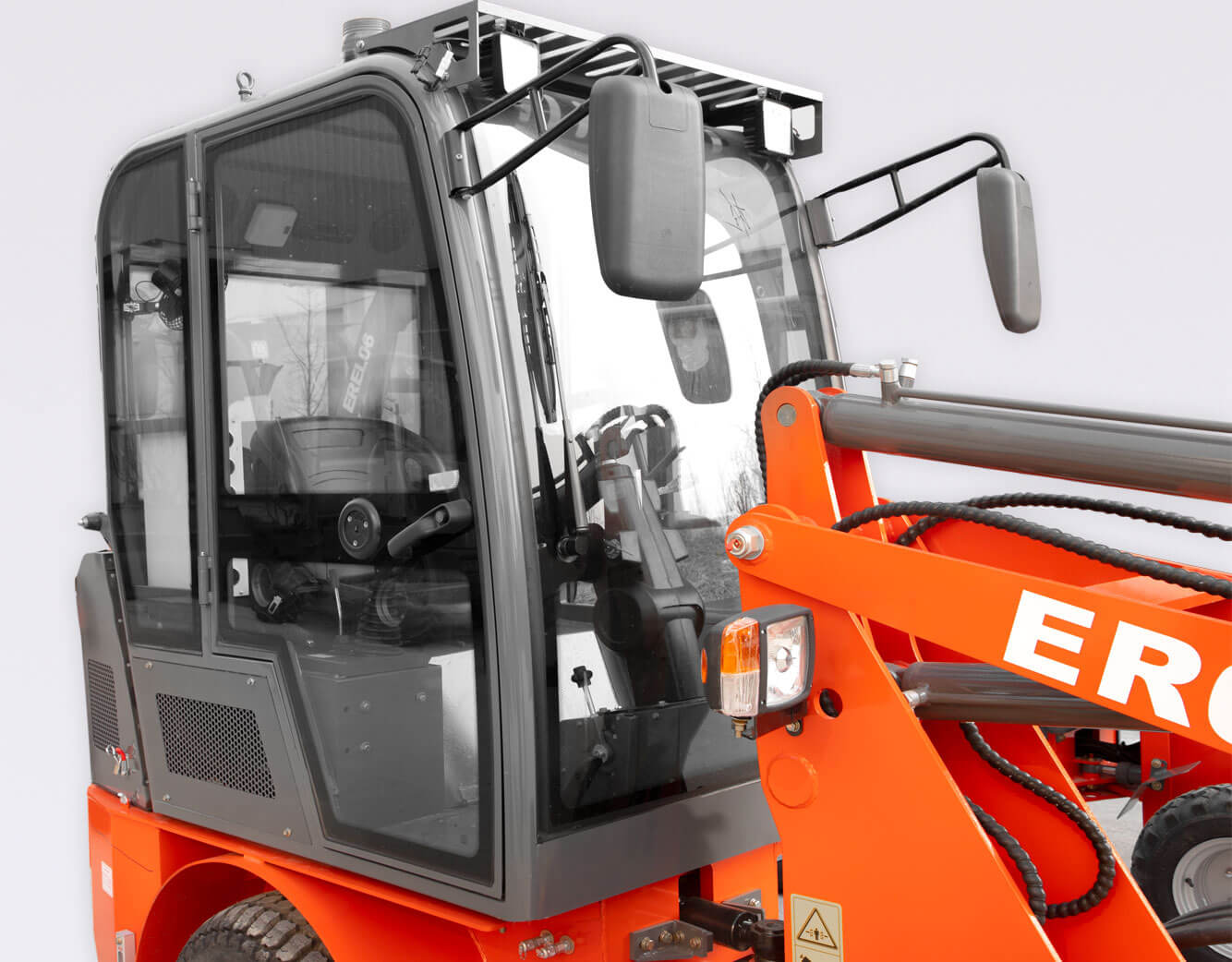

Secure canopy with restraint system

Maximum safety that is state of the art. As a standard, EVERUN installs a canopy with a restraint system on all Hoftrac models. The canopy and the restraint system for the operator meet the current European machinery directive (2006/42/EC) for ROPS and FOPS protection.

Quick and easy tool change

Thanks to the hydraulic quick-change system, attachments can be easily and conveniently exchanged. In this way, your machine is again ready for application at once. This increases productivity and raises efficiency. The exchange of the tool takes place through 2-hand operation, which makes an unwanted change impossible - safety always comes first at EVERUN!

Easily accessible lubrication service points

Regularly lubricating all lubrication service points of the machine is essential for correct and effective maintenance and therefore for the value preservation of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Weidemann. Optionally, a central lubrication system is available that takes over the lubrication for you.

Short hydraulic hose lengths

EVERUN machines have short hydraulic hose lengths - the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entyre hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

Adjustable steering column

The steering column can be individually adjusted according to the operator's request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

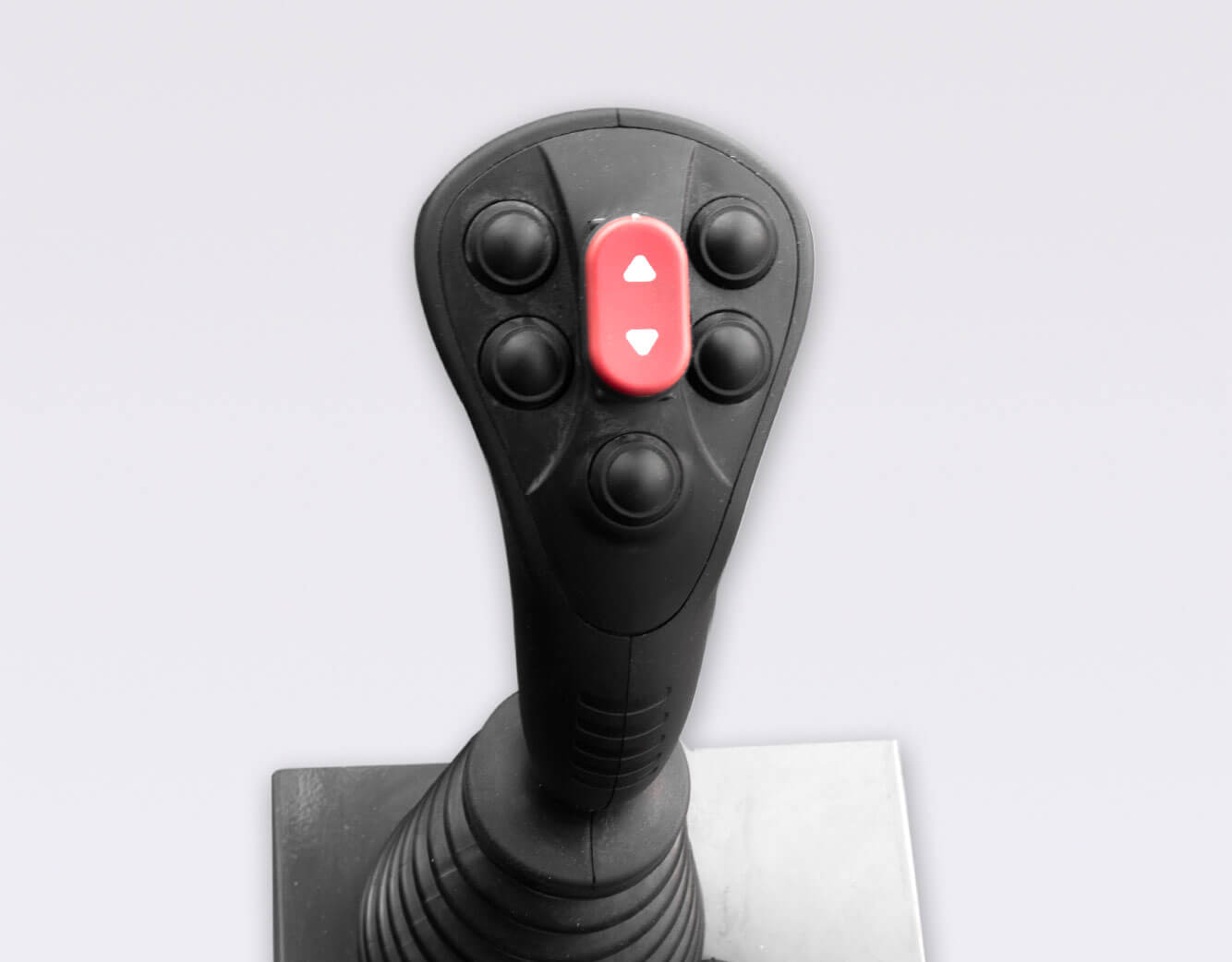

Ergonomic joystick

The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. You therefore always have the machine

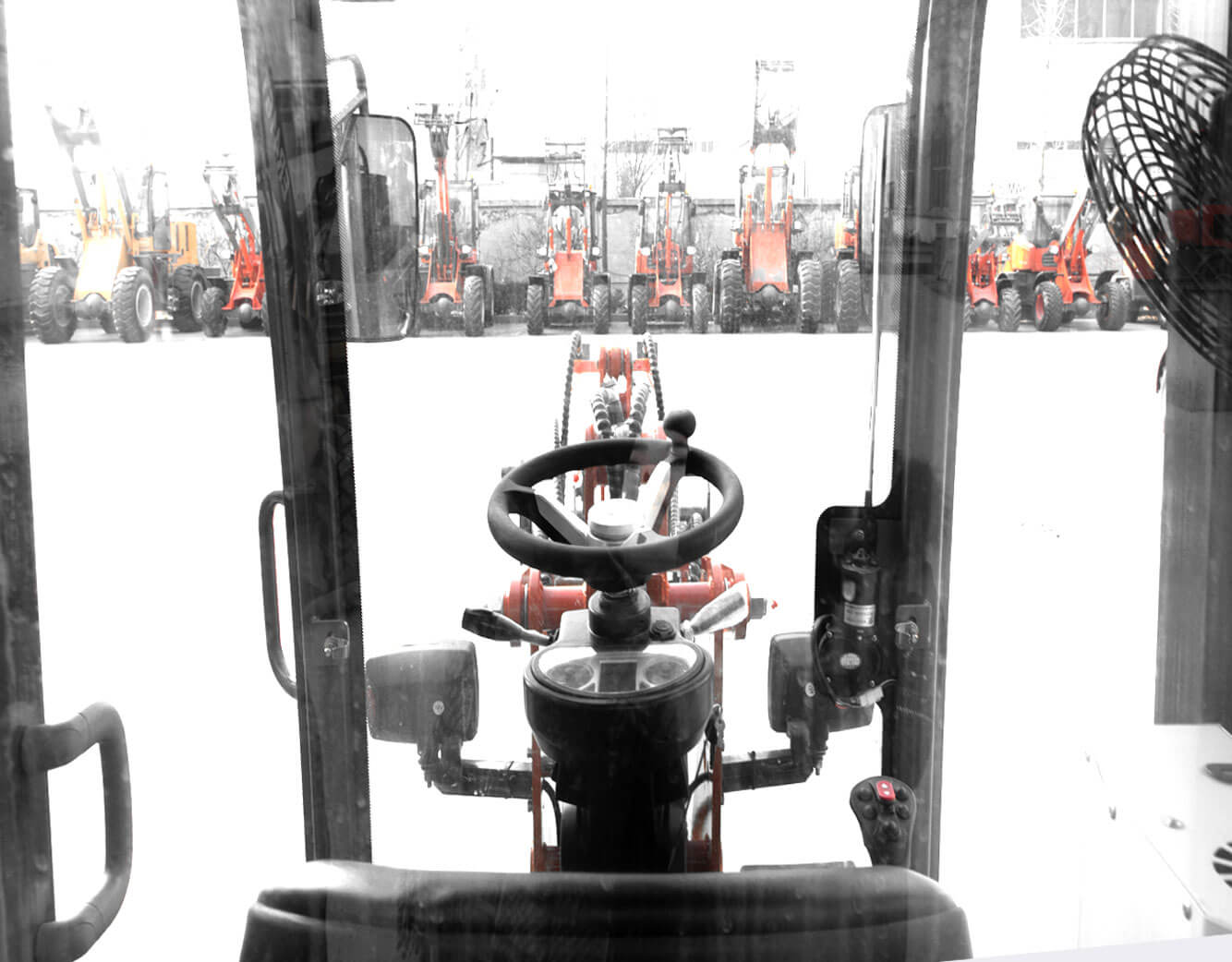

Good all-round visibility - ergonomic workplace

Plenty of legroom, clearly arranged instrument clusters, a comfortable driver's seat and an optimal view of the attachment. A workplace that motivates and fully supports the operator.

Brake-inch pedal

The hydrostatic all-wheel drive is combined with the brake pedal for EVERUN machines. By "inching," this makes it possible to crawl until the travelling operation comes to a standstill. With the partially depressed brake-inch pedal , you can drive slowly in crawl speed at full engine speed precisely to the millimetre and at the same time lift quickly. If the pedal is pressed further, the machine is braked. The advantage of the brake-inch pedal lies in the optimal power-output distribution of the engine rated power. In addition, it is not possible to stall the machine.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. EREL06
Overall Weight 1930kg
Rated Load 600kg
Overall Size With Bucket( L*W*H) 3500*1200*2270 mm
Overall Size Without Bucket( L*W*H) 2450*1200*2270mm
Wheel Base 835mm
Tread Base 1310mm
Max. Dumping Height 1930mm
Max. Dump Distance 850mm
Max. Discharging Angle 40°
Max. Turning Angle 40°
Seat Height 1200mm
Min. Ground Clearance 1600mm
Min Turning Radius 2300mm
Time in Total 8s
Battery Capacity 48V/300Ah
Moving Motor 8kW
Lifting Motor 6.5kW
Standard Tire 23*8.5-12
Working Time 5~6 hours
