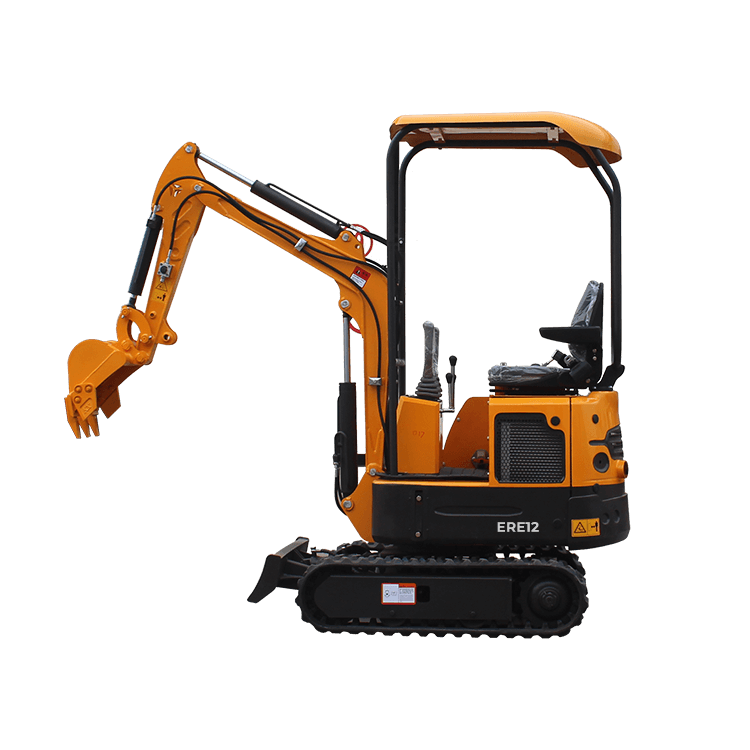

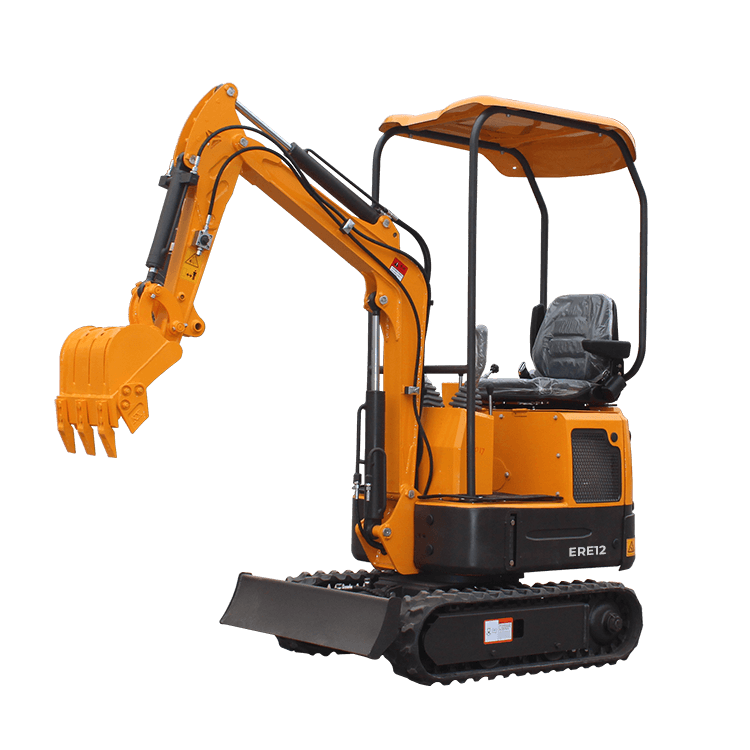

Crawler Excavator—ERE12

Specifications | Descriptions | Technical Parameters

With 11 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Maximum Engine Power

8.6kW

Operating Weight

800kg

Standard Bucket Capacity

0.025m3

Descriptions

With 11 years wheel loader exporting experience and under the help of our own customer, Qingdao Everun Machinery Co., Ltd established in beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERE12
Operating Weight 1040kg
Digging Bucket Capacity 0.025m³/120kg
Digging Bucket Width 350mm, can add narrow bucket is 200mm
Engine YANMAR(3TNV70)
Rated Power 10kw/2200r/min
Displacement 0.854L
Bore Stroke three cylinder, water cool
Main Pump SAISIDA
Pump ow 16L/min
Hydraulic Pump Perssure 16mpa
Valve BEIFANG
Swing Motor SJ-TECH(MP-1-160)
Traveling Motor KERSEN(OMS-2450)
Hydraulic Oil Tank 7L
Arm Digging Force 5.0kn
Bucket Digging Force 9.5kn
Electric Pressure 12V
Electric Power 5W
Overall Dimension(L*W*H) 2770*896*1490mm
Wheelbase 910mm
Total Length of Track on Land 1230mm
Platform ground Clearance 380mm
Platform Bakc Turning Radius 784mm
Chassis Width 896mm
Track Width 180mm
Chassis Ground Clearance 132mm
Track Height 320mm
Max.Digging Depth 1650mm
Max. Vertical Digging Depth 1375mm
Max.Digging Height 2610mm
Max.Dumping Height 1850mm
Max.Digging Radius on Ground 2850mm
Min.Rotation Radius 1330mm
Max. Upgrade Height of Bulldozer Blade 345mm
Max.Digging Depth of Bulldozer Blade 255mm
