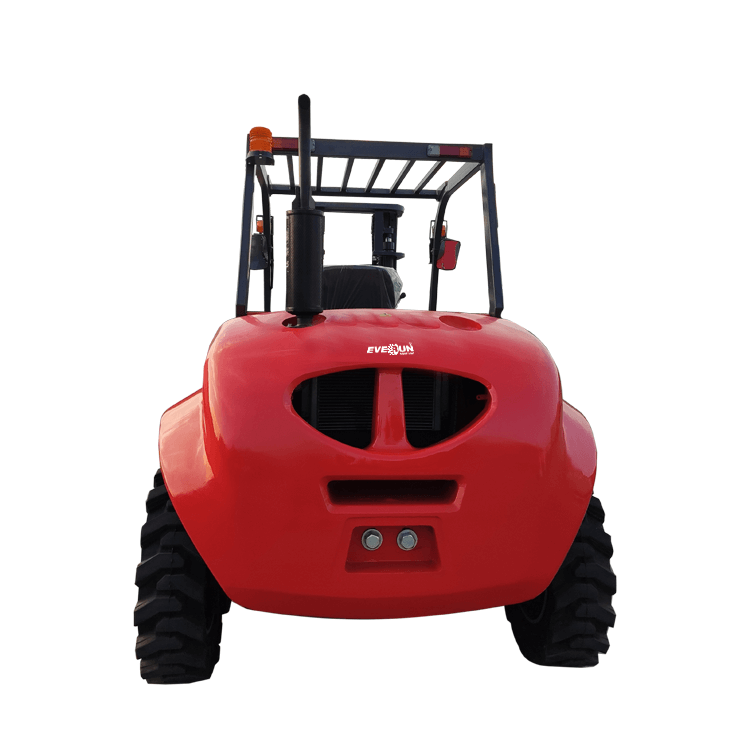

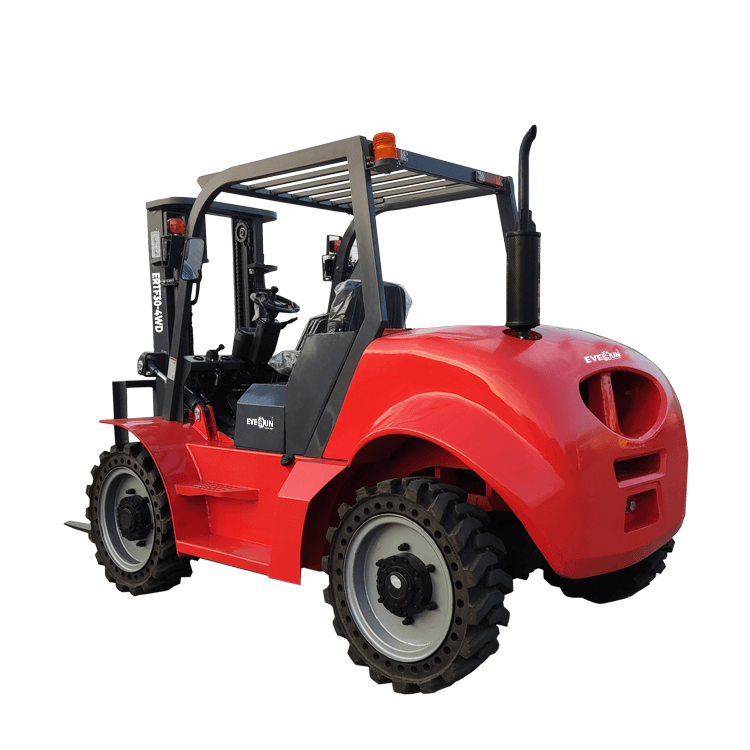

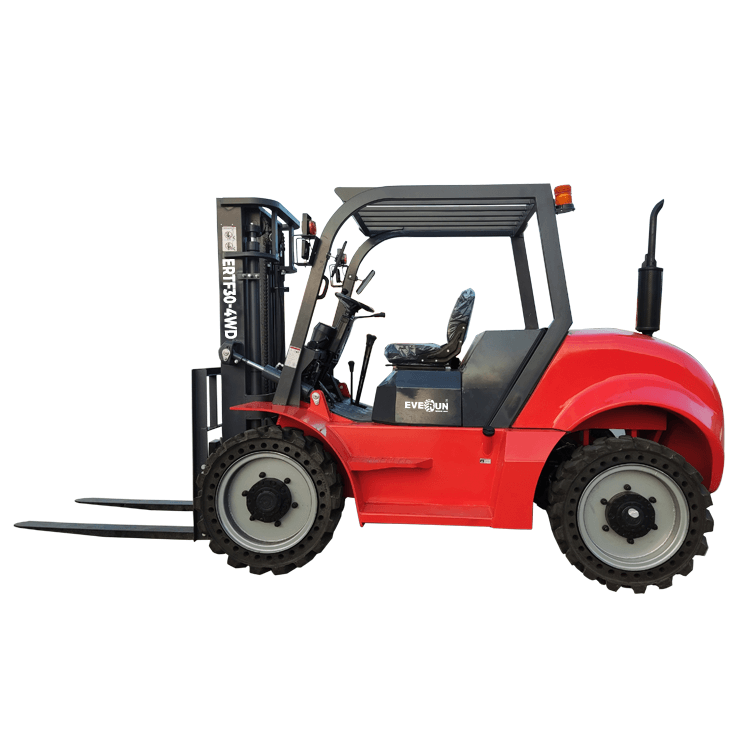

1. Tough, compact rough terrain forklift 3000kg with the 4WD system.
2. High strength Frame and high ground clearance for uneven road conditions.
3. Deep pattern and large-width tires with good grip and skid resistance.
4. Widened Mast for a good view. Cast Steel for the drive axle.
Rated Lifting Load
3000kgLoad Center
500mmLifting Height
3000mm1. Tough, compact rough terrain forklift 3000kg with the 4WD system.
2. High strength Frame and high ground clearance for uneven road conditions.
3. Deep pattern and large-width tires with good grip and skid resistance.
4. Widened Mast for a good view. Cast Steel for the drive axle.
| Term No. | ERTF30-4WD |
| Rated lifting load | 3000kg |
| Load Center Distance | 500mm |
| Lifting Height | 3000mm |
| Driving Mode | Seat |
| With fork | 4435mm |
| Without fork | 3215mm |
| Width | 1740mm |
| Height When The Mast Not Raised | 2200mm |
| Overhead Guard Height | 2230mm |
| Wheelbase | 1950mm |
| Minimum Ground Clearance | 250mm |
| Minimum Turning Radius (outer side) | 3510mm |
| Mast Tilt Angle (front/rear) | 6°/12° |
| No-load Maximum Lifting Speed | 505mm/s |
| Full-load Maximum Lifting Speed | 485mm/s |
| No-load Maximum Working Speed | 20km/h |
| Full-load Maximum Working Speed | 18km/h |
| Full-load Maximum Gradeability | 20% |
| Engine Model | Quanchai4C3 |
| Forklift Weight Under Standard No-load Condition | 5800kg |
