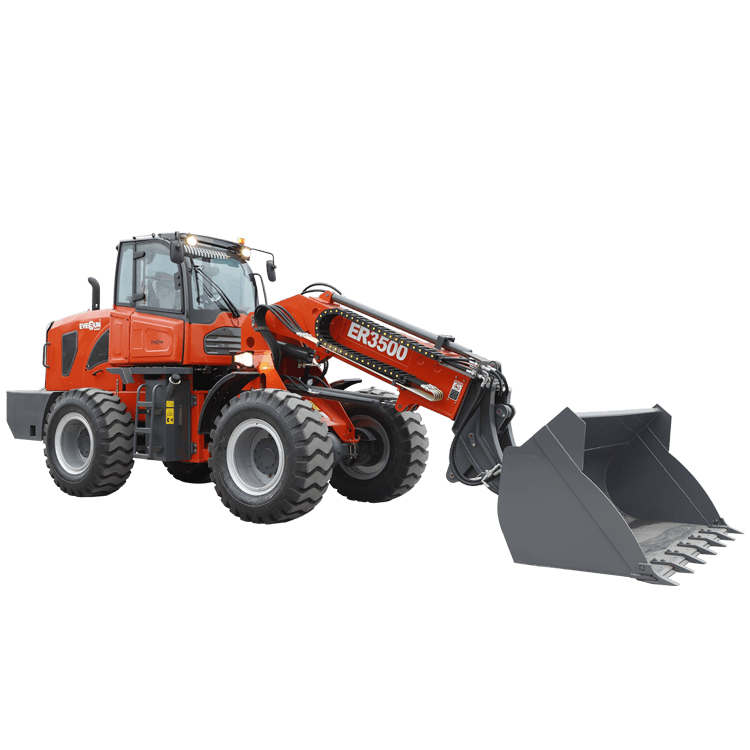

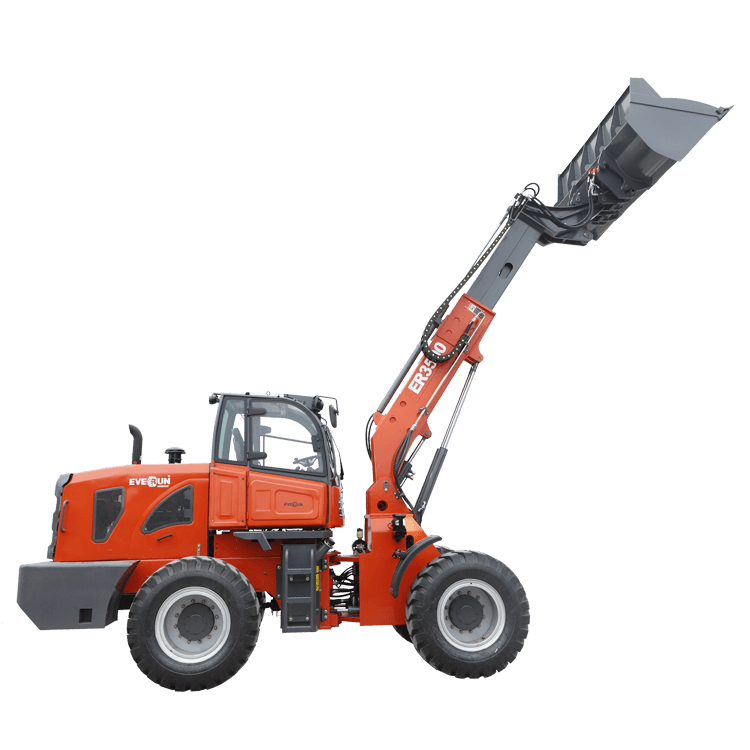

ER3500 is a telescopic loader with 3 ton loading capacity, can be equipped with various attachments widely use in agriculture and construction for multiple works, such as shoveling, grabbing grass, snow removal, carry, etc.
Maximum Engine Power
92kWRated Load
3000kgStandard Bucket Capacity
1m³ER3500 is a telescopic loader with 3 ton loading capacity, can be equipped with various attachments widely use in agriculture and construction for multiple works, such as shoveling, grabbing grass, snow removal, carry, etc.
| Term No. | ER3500 |
| Engine Model | WEICHAI WP6G125E22 |
| Engine Power | 92kW |
| Rated Speed | 2200r/min |
| Rated Loading | 3000kg |
| Overall Weight | 8800kg |
| Max.Driving Speed(I/II) | 36km/h |
| Fuel Consumption Ratio | ≤210g/kW.h |
| Engine Type | lnline Water Cooled,4 Stroke |
| Bucket Capacity | 1m³ |
| Maximum Tractive Force | 48kN |
| Maximum Breakout Force | 55kN |
| Maximum Grade ability | 25° |
| Maximum Dump Height | 4620mm |
| Maximum Dump Reach | 2070mm |
| Overall Length | 7535mm |
| Overall Width | 2150mm |
| Overall Height | 3096mm |
| Wheel Base | 3763mm |
| Tyre | 17.5-25 |
| Service Brake | Air-assist Hydraulic Brake, Disc Brake |
| Parking Brake | Manual Disc Brake |
| Boom Lifting Time | 5.6s |
| Ground Clearance | 440mm |
| System Working Pressure | 18Mpa |
| Displacement | 6.75L |
