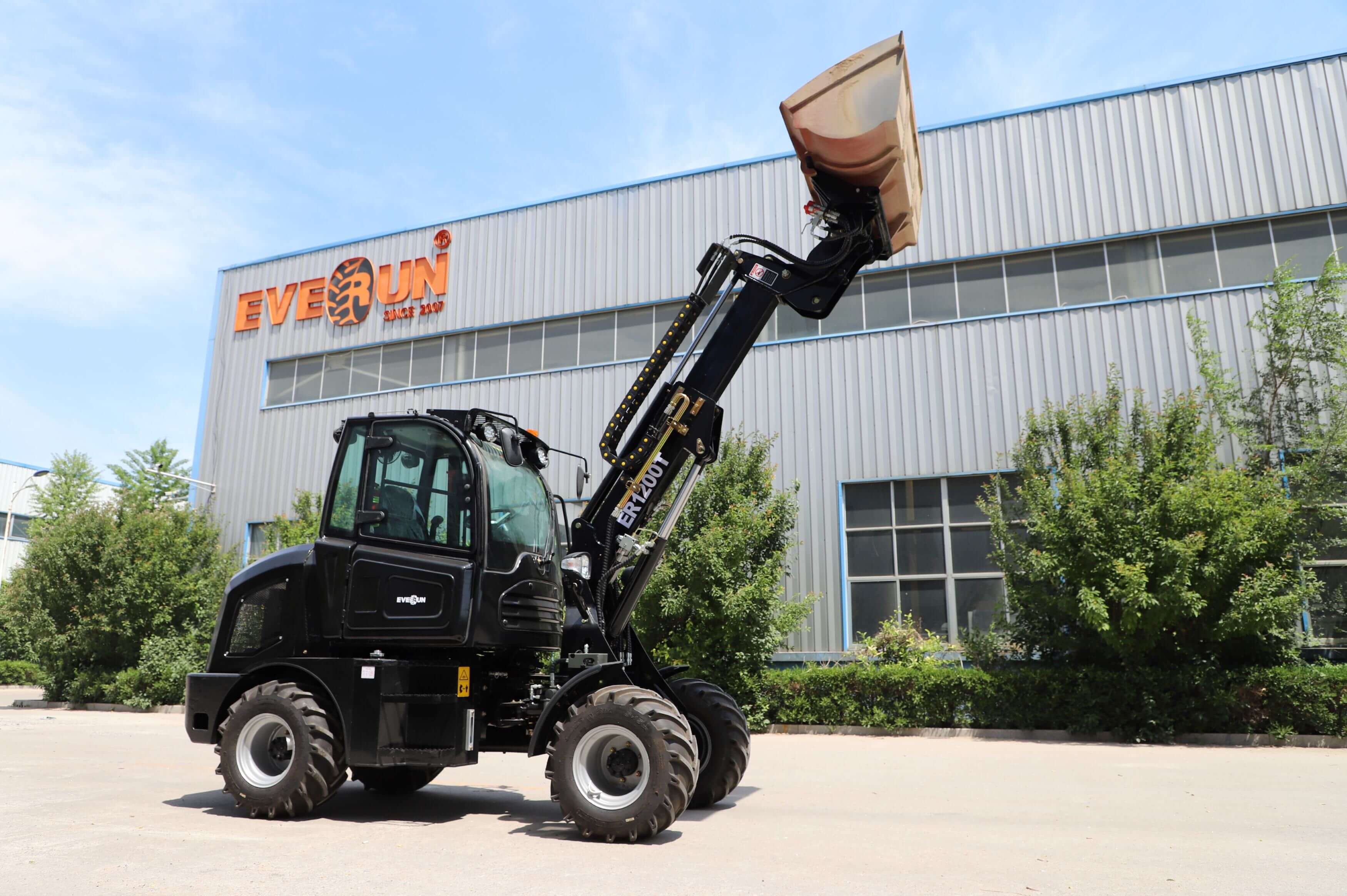

Telescopic Wheel Loader - EVERUN ER1200T

Specifications | Descriptions | Technical Parameters

Everun's wheel loaders are designed with advanced features to enhance performance and durability. They include an articulated oscillation joint for superior maneuverability, good quality coating technology for long-lasting protection, and strong shear power provided by a planetary shaft. Additionally, the loaders are equipped with two larger and stronger lift cylinders, as well as a robust telescopic arm, ensuring they can handle heavy lifting tasks with ease.

Specifications

rated loading

1000kg

Maximum loading

1200kg

overall weight

3440kg

Descriptions

1. EVERUN articulated oscillation joint

2. Good quality coating technology

3. Strong shear power from planetary shaft

4. Two larger and stronger lift cylinders

5. Robust telescopic arm

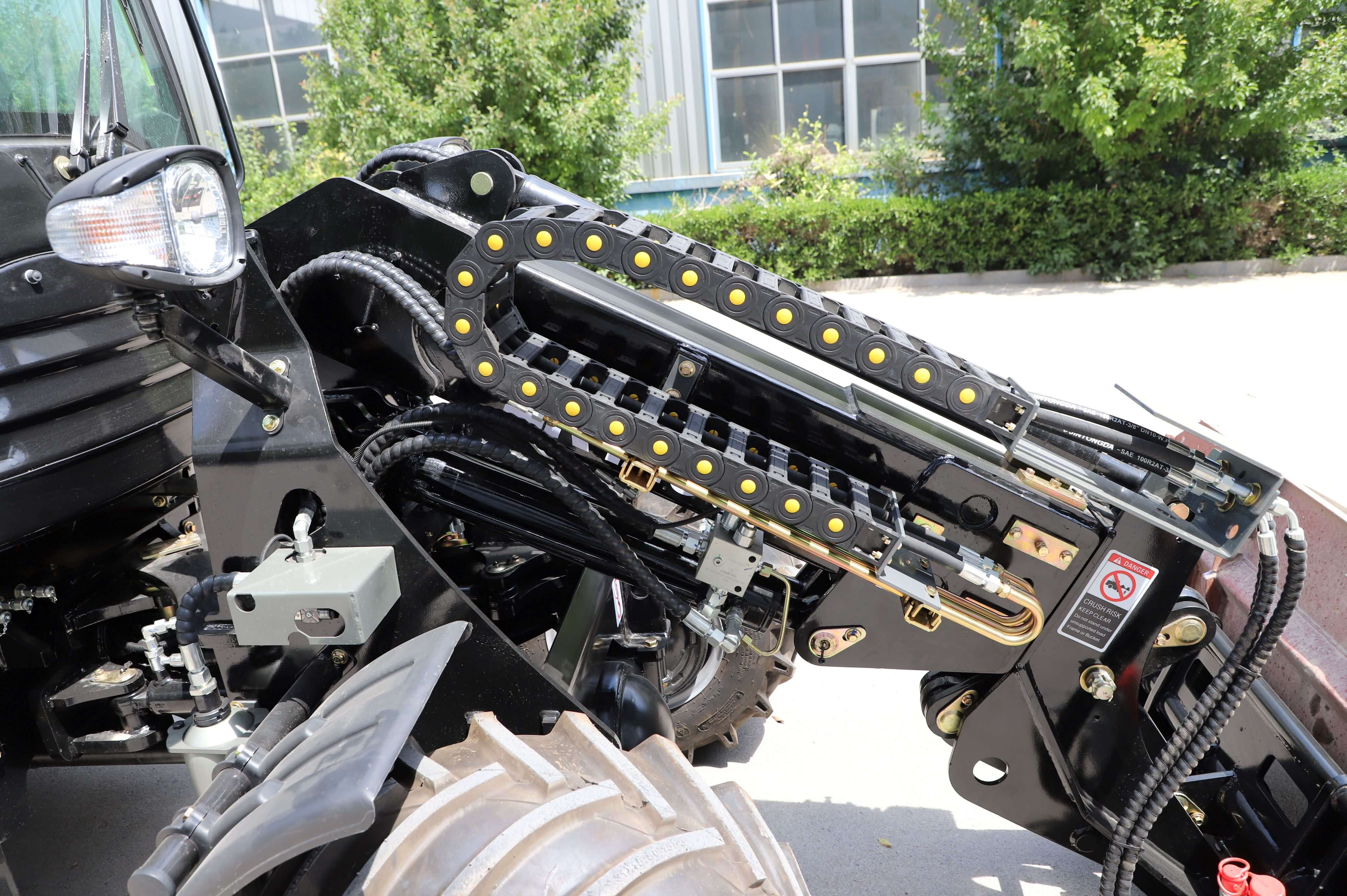

Sturdy telescopic boom. The telescopic boom is built to be sturdy and stable. The parallel motion takes place hydraulically. All important hydraulic lines are inside and are protected against external influences. The telescopic boom for EVERUN wheel loaders combines the advantages of an articulated machine with those of a telehandler. High overhead loading heights are therefore not a problem.

EVERUN articulated pendulum joint. The backbone of the EVERUN design. The legendary articulated pendulum joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

High quality powder coating. Quality creates added value. The powder coating is a key feature of the EVERUN quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

High shear forces from planetary axle. The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ER1200T
rated loading 1000kg
Maximum loading 1200kg
overall weight 3440kg
rated bucket capacity 0.38CBM
maximum tractive force 18kN
maximum breakout force 20kN
maximum grade ability 20°
maximum dump height 2675mm
maximum dump reach 1510mm
overall dimension (L×W×H) 5030*1570*2580
minimum turning radius 3905mm
maximum steering angle 38°
Oscillation angle
Engine model CHANGCHAI ZN390Q
Engine type lnline water cooled, four stroke
No. of cylinder-bore/stroke 3—90×95
displacement 1.813L
rated power 25kW
idle speed 850-900r/min
rated speed 2400r/min
maximum torque N.m @speed 109 @ 1680r/min
min fuel-consume ratio ≤265g/kw.h
