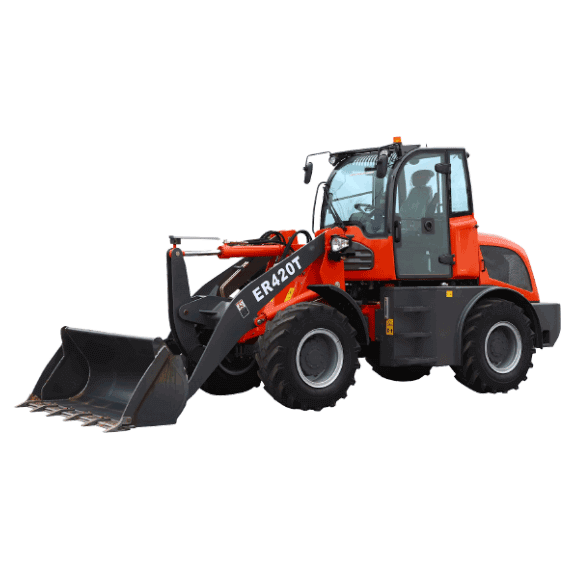

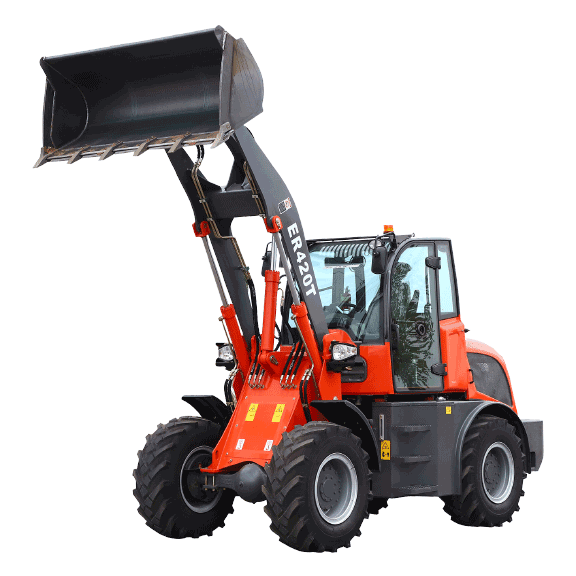

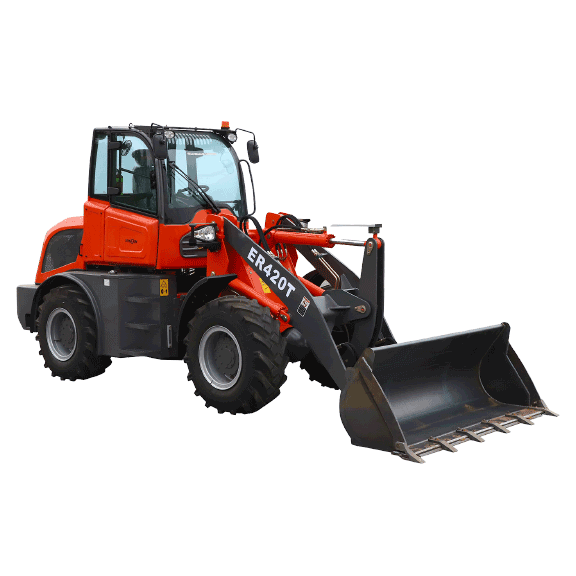

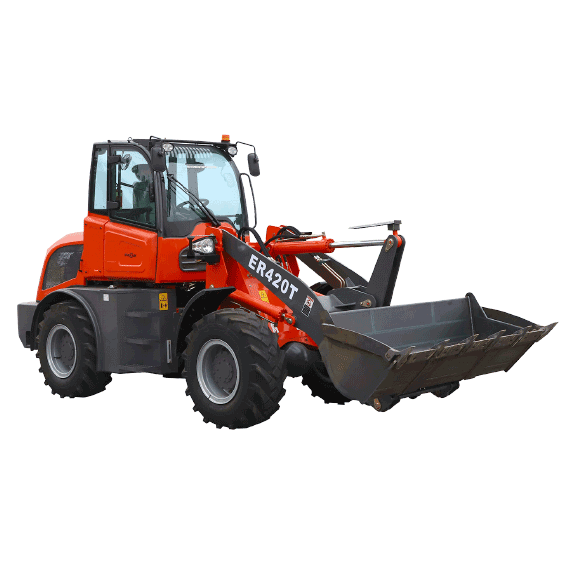

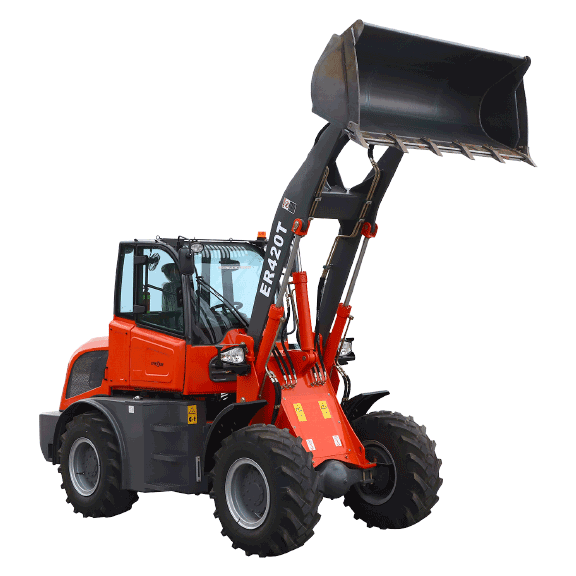

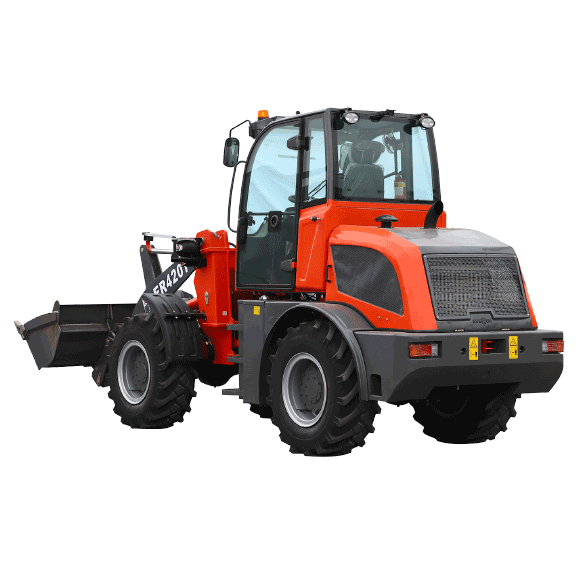

Small Wheel Loaders—ER420T

Specifications | Descriptions | Technical Parameters

Everun ER420T Wheel Loader with real CE certificate which is issued by TÜV Rheinland. New Rops & Fops cabin and new floating oscillating articulation guarantee a safer operation. With 2ton loading capacity and different attachments, not only have superior performance in agricultural and garden application, but also advanced for small constructions and teerain field application. It is the quick and easy solution to all of your day job.

Specifications

Rated Power

53kW

Rated Load

2000kg

Bucket Capacity

0.67m³

Descriptions

Everun ER420T Wheel Loader with real CE certificate which is issued by TÜV Rheinland. New Rops & Fops cabin and new floating oscillating articulation guarantee a safer operation. With 2ton loading capacity and different attachments, not only have superior performance in agricultural and garden application, but also advanced for small constructions and teerain field application. It is the quick and easy solution to all of your day job.

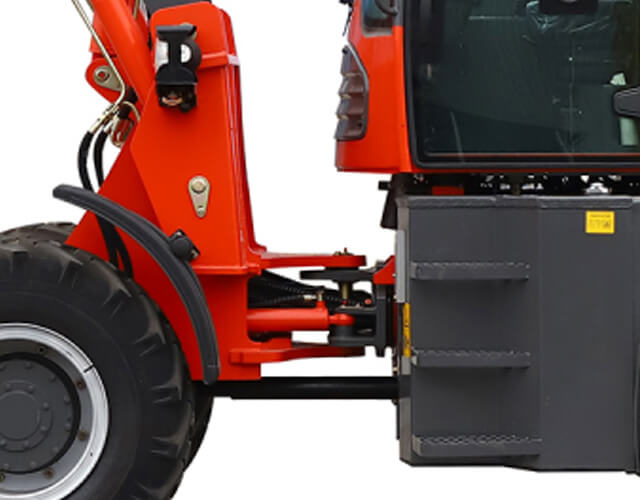

1- Everun articulated oscillating floating joint
The backbone of the Everun ER4T design: The legendary articulated oscillating floating joint. All four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine has unrivalled manoeuvrability.

2- High quality powder coating
Quality creates added value. The powder coating is a key feature of the Everun quality standard. In contrast to the conventional wet painting, it greatly increases the service life and is more efficient and also environmentally friendly in the process.

3- High shear forces from planetary axle
The drive via the planetary axle increases the torque on the wheel and thereby improves the shear force. Due to the optimal ratio between the shear force and machine capacity, you work flexibly and economically at the same time.

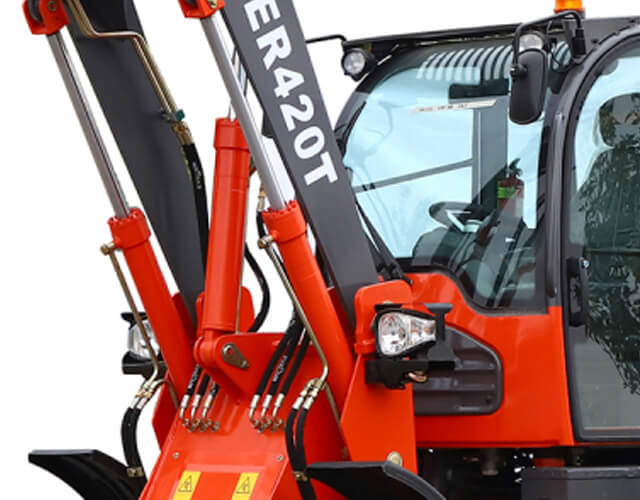

4- Bigger and stronger lifiting cylinders
Everun always installs strong lift cylinder in all ER4T series wheel loader models. This guarantees that the load distribution is always optimally transferred to the loading arm. In addition, the entire loading system gains stability. The size of the lift cylinder is adapted to the respective size of the machine.

5- Stainless steel steering stops
At a full steering stop, the front and rear carriage of the machine touch. With Everun, this area is particularly well-protected by the stainless steel steering stops and there is no corrosion. This provides for value preservation!

6- Large selection of attachments
Use your machine as a multi-tool: you have a wide selection of attachments available for your Everun machine.

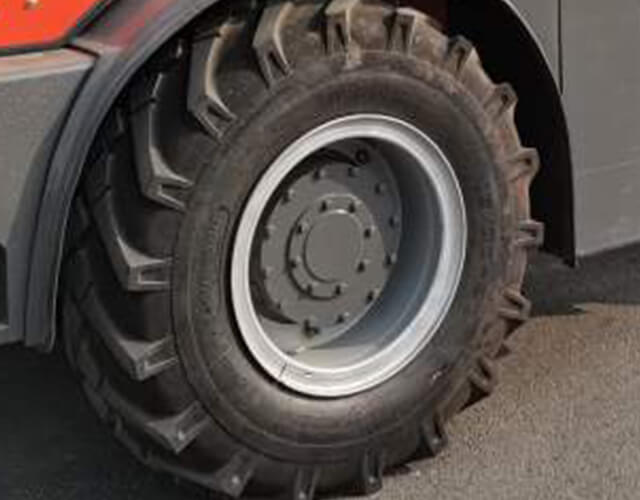

7- Large selection of tyres
The optimal tyres for every subgrade: you have a wide selection of different tyres available for your Everun machine.

8- Easily accessible lubrication points
Regularly greasing all lubrication points of the machine is crucial for the proper and effective maintenance and therefore value retention of the machine. In order to save time and facilitate the work, the lubrication service points are always in an easily accessible position at Everun. Optionally, a central lubrication system is available that takes over the lubrication for you.

9- Short hydraulic hose lengths
Everun machines have short hydraulic hose lengths; the hoses are split in several places. If a hydraulic hose needs to be exchanged, the entire hose in the hydraulic circuit does not need to be exchanged, but rather just the affected part. This speeds up work enormously and saves money.

10- ROPS & FOPS cabin with maintenance port
With Everun new designed ER4T Rops& Fops cabin, There is maintenance port left in the cabin, and it provide optimum ease of service.

11- Comfortable Seat

12- Adjustable steering column
The steering column can be individually adjusted according to the operator’s request. This ensures that every operator can work with the machine ergonomically and fatigue-free.

13- Ergonomic joystick
The joystick lies securely and comfortably in your hand. The control is sturdy and sensitive at the same time. In this way, you always have the machine and its key functions under control.

14- Good all-round visibility — ergonomic workplace
More Spacious than conventional model, sized at L150cm *W125cm*H148cm,over 10cm extend to length and width than previous, ensure plenty of legroom, clearly arranged instrument clusters, a comfortable operator’s seat and an optimal visibility of the attachment. A working area that motivates and fully supports the operator.
The working environment in the cabin is excellent, thanks to an efficiently working heating and ventilation system with a fan, fresh air filter and well-placed air nozzles. With the comfort cab, air conditioning is available as an option.

15- Vibration-damped working area
Vibrations and impacts are absorbed by the machine. Your body is very well-protected and you also work for a longer time, relaxed and fatigue-free, and are therefore simply more focused.

16- New designed battery located aside of the rear bumper, easy approach for charging.

17- Streamline designed engine hood and iron Casting rear bumper
New engine hood with stronger material, taking into account of both appearance design and functions, realized lower the noise and improved heat radiation effects. Mold iron casting rear bumper, heavier but slim than normal ones, giving better balance support to the wheel loader.

Technical Parameters

FEATURE

SIZE / DETAILS

Engine Model Xichai 4DX21-72 Engine
Service Brake Four Wheel Hydraulic Spread-shoed Brake
Rated Power 53kW
Rated Speed 2400 r/min(rpm)
Bucket Capacity 0.67m³
Bucket Width 2040mm
Bucket Type Heavy-duty Bolt On Teeth
Rated Load 2000kg
Type Fixed-spindle Power Shift
Shift Gear Control Oil Pressure 1.2-1.5 MPa
Rated Input Speed 2500(rpm)
Parking Brake Hand Operated
Steering System Articulated Frame With Hydraulic Power Steering
Minimum Turning Radius 5460mm
Driving System Hydraulic Converter
Overall Weight 5500kg
Overall Length (bucket on ground) 5710mm
Overall Width 2040mm
Type Specification 16/70-20
