1. Passed CE quality certification.
2. Standard configuration with Quick Hitch and Electric Joystick, easier to operate.
3. Optional DC battery system and AC battery system, with zero-pollution.
4. Maintenance-Free Batteries makes later use more convenient and more secure.
5. The small size can work in a small limited space, and is flexible in operation.
6. Multi-options for attachments.
7.It has a rated load of 1000 kg, with a maximum breakout force of 13 kN, so it can handle most light-duty tasks.
Rated Load
1000kgNet Weight
2150kgStandard Bucket Capacity
0.26m³1. Passed CE quality certification.
2. Standard configuration with Quick Hitch and Electric Joystick, easier to operate.
3. Optional DC battery system and AC battery system, with zero-pollution.
4. Maintenance-Free Batteries makes later use more convenient and more secure.
5. The small size can work in a small limited space, and is flexible in operation.
6. Multi-options for attachments.
7.It has a rated load of 1000 kg, with a maximum breakout force of 13 kN, so it can handle most light-duty tasks.

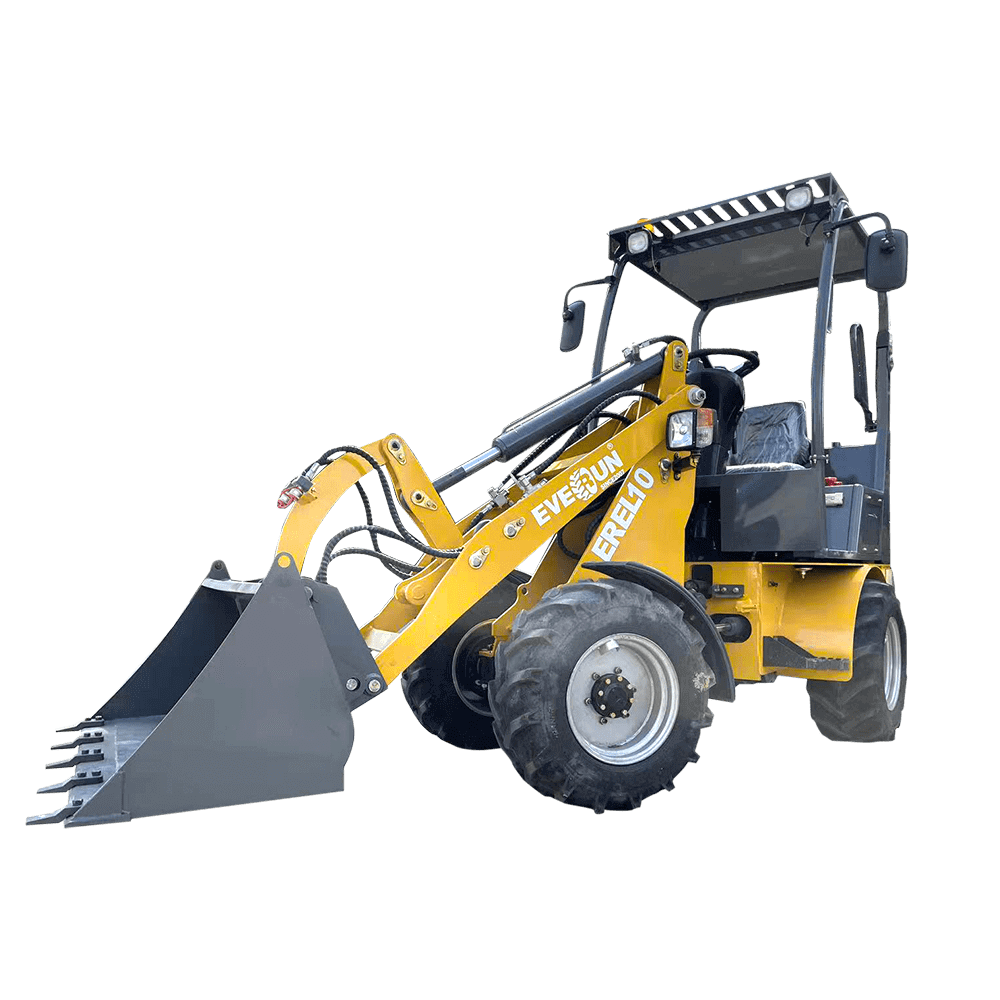

| Term No. | EREL10 |
| Rated Load | 1000kg |
| Bucket Rated Capacity | 0.26m³ |
| Dumping Height(at 40°) | 1821mm |
| Lifting Height | 3120mm |
| Dumping Reach | 829mm |
| Maximum breakout force | 13kN |
| Max. Grade Ability | 20 |
| Minimum turning radius | 2466mm |
| Oscillation angle | 8° |
| Overall dimension (L×W×H) | 3672*1270*2380mm |
| Wheel Base | 960mm |
| Min Ground Clearance | 210mm |
| Net Weight | 2150kg |
| Battery Model No. | 3-EVF-200A |
| Rated capacity (3hr) | 200Ah |
| Working Hours | 4h |
| Motor No | YQP5.72AF.48P |
| Displacement | 14mL/r |
| Type | 29*12.50-15 |
| Working Pressure | 0.3MPa |
| Type of Steering Hydraulic System | Full Hydraulic Steering System |
| Type of Steering Pump | External Gear Pump |
| Steering Cylinder Bore | Ø65 |
| System Pressure | 16MPa |
| Dumping Cylinder-Bore | ø50 |
| Service Brake | Drum Brake |
| Brake Drum | 240mm |
| Praking Brake | Drum Brake |
| Hydraulic Oil Tank | 40L |
| Brake Fluid | 0.8L |
