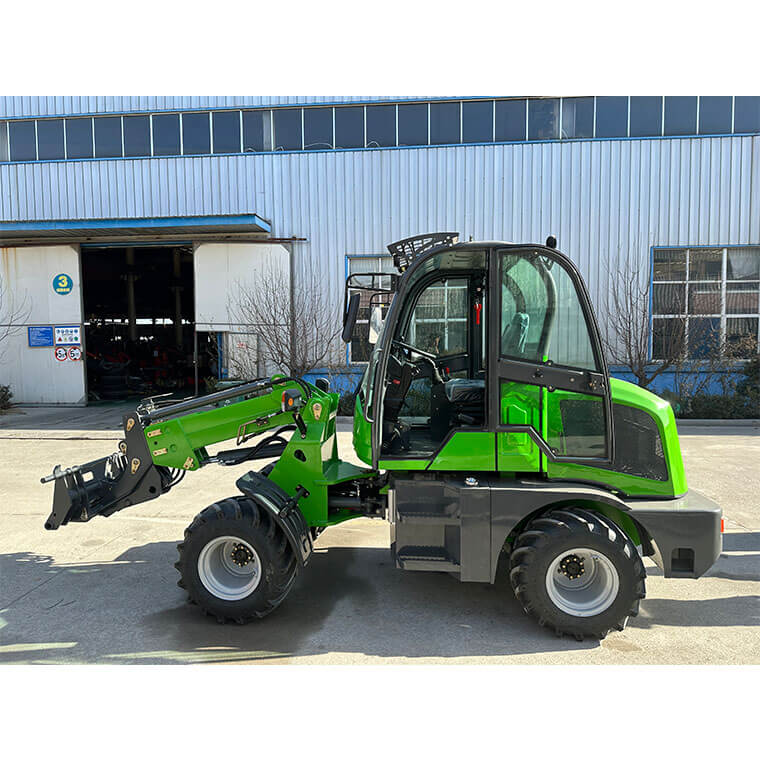

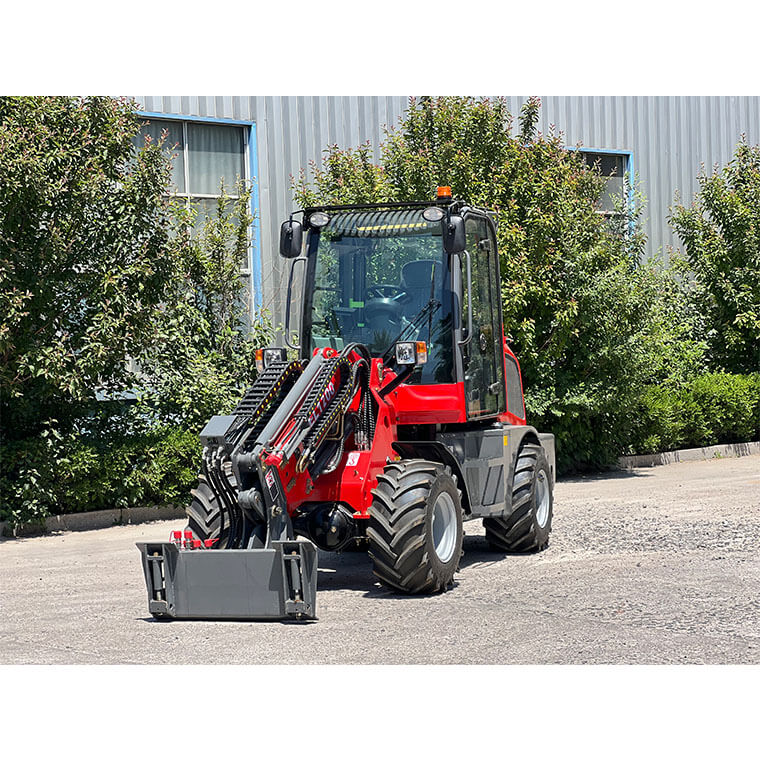

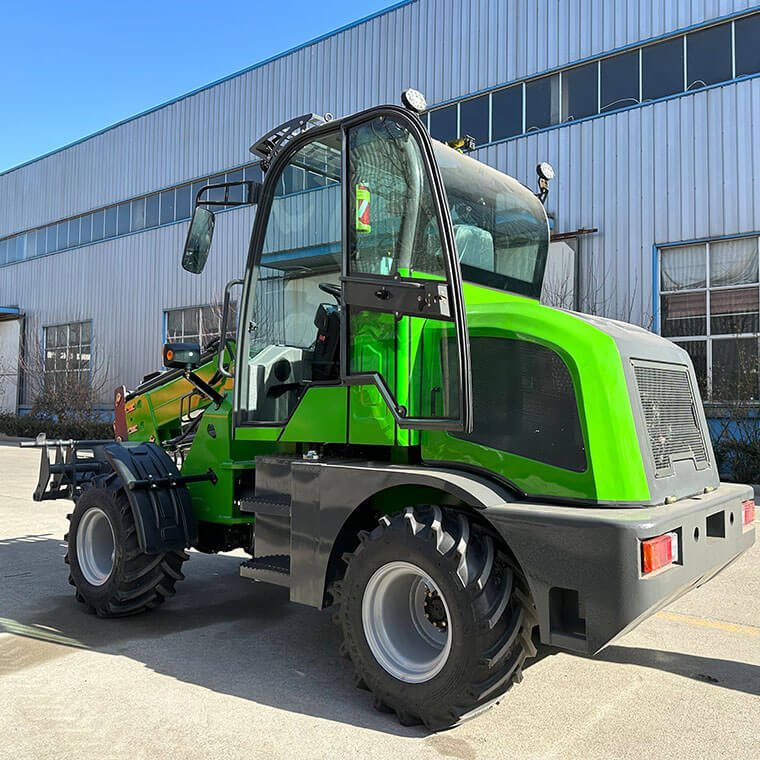

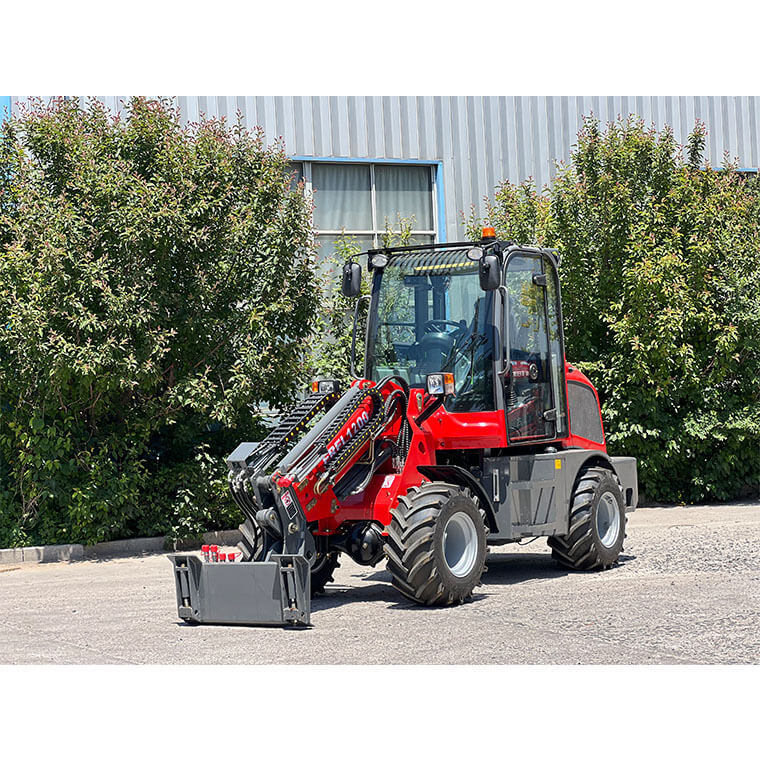

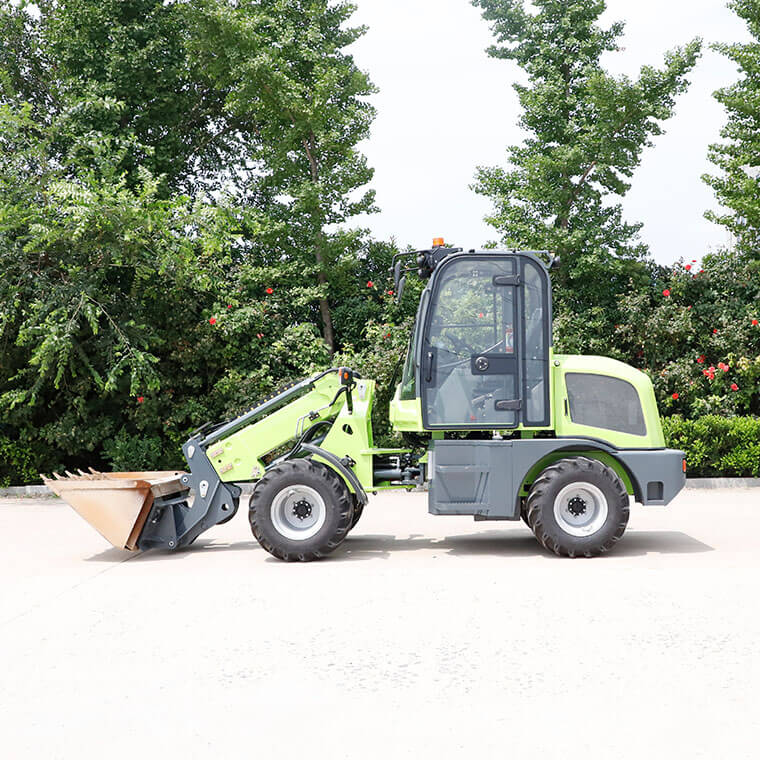

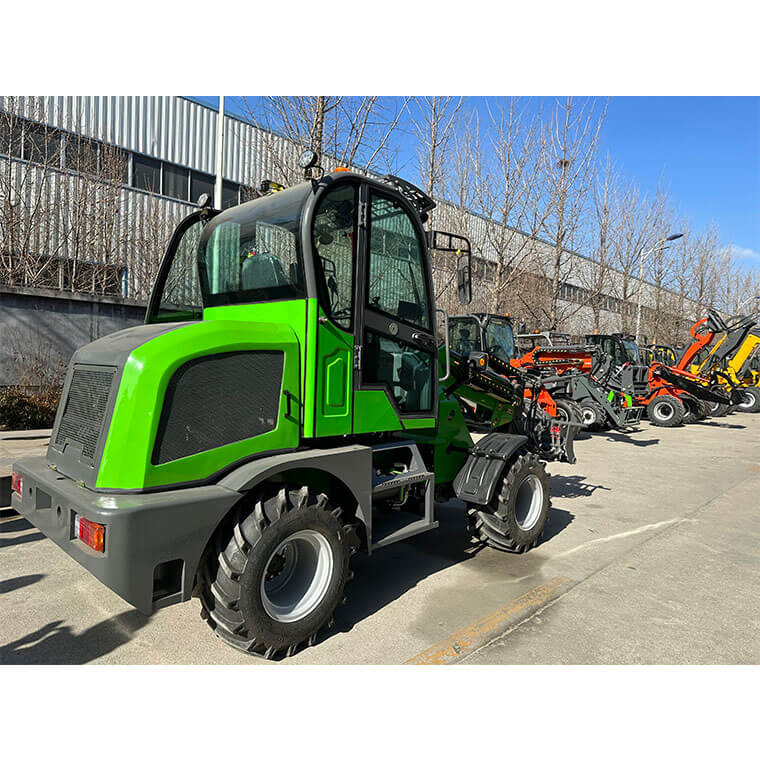

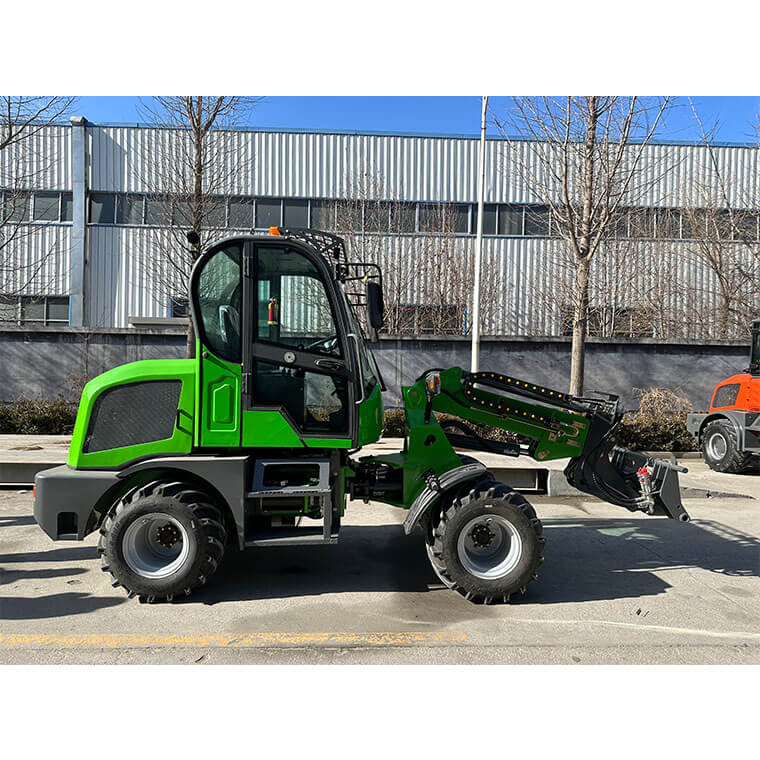

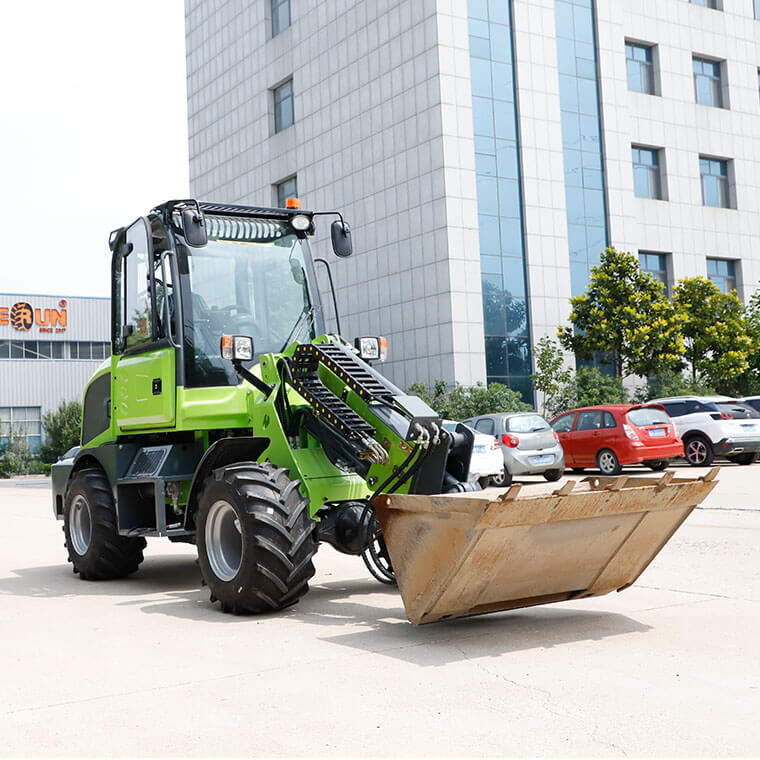

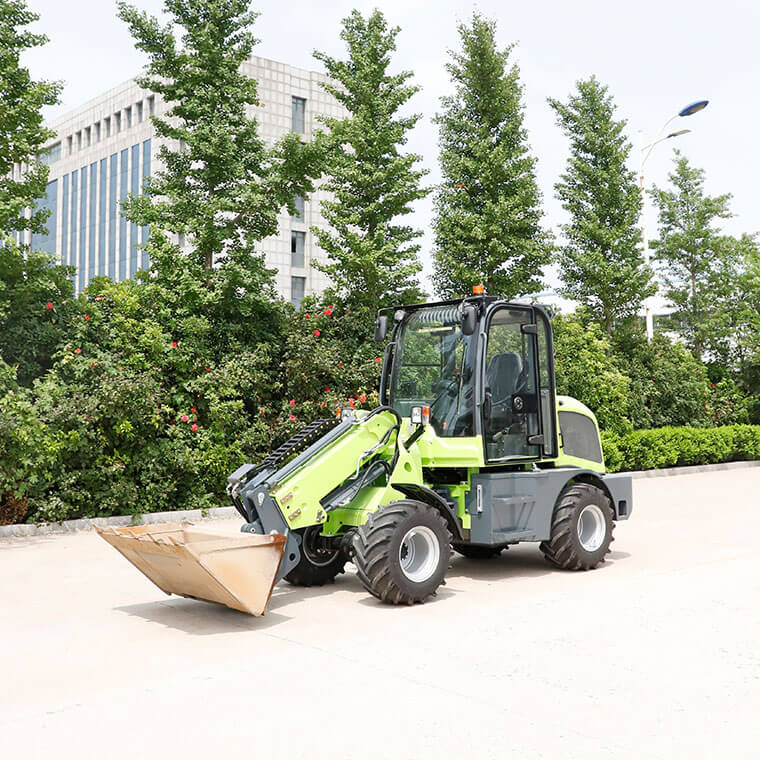

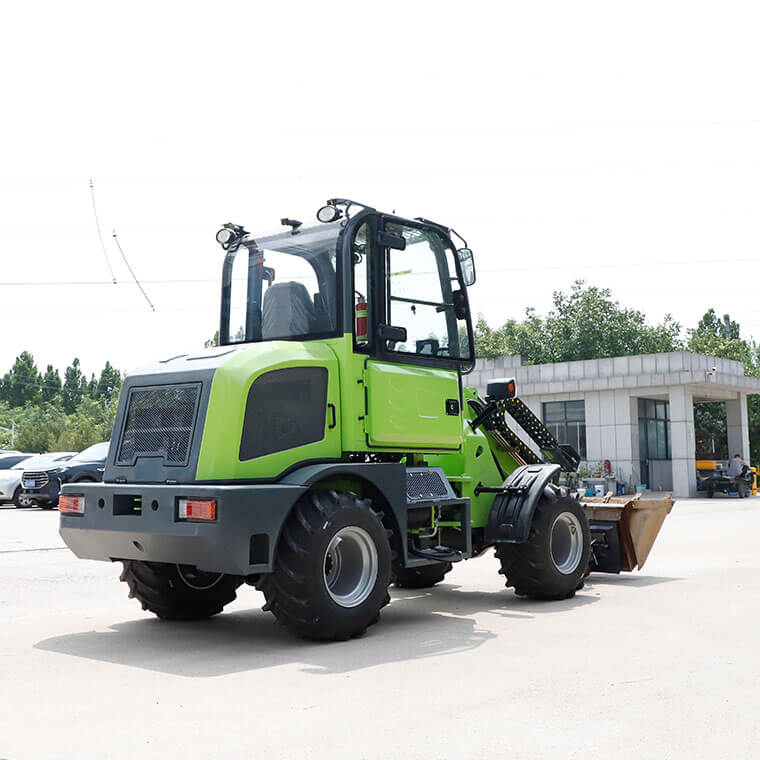

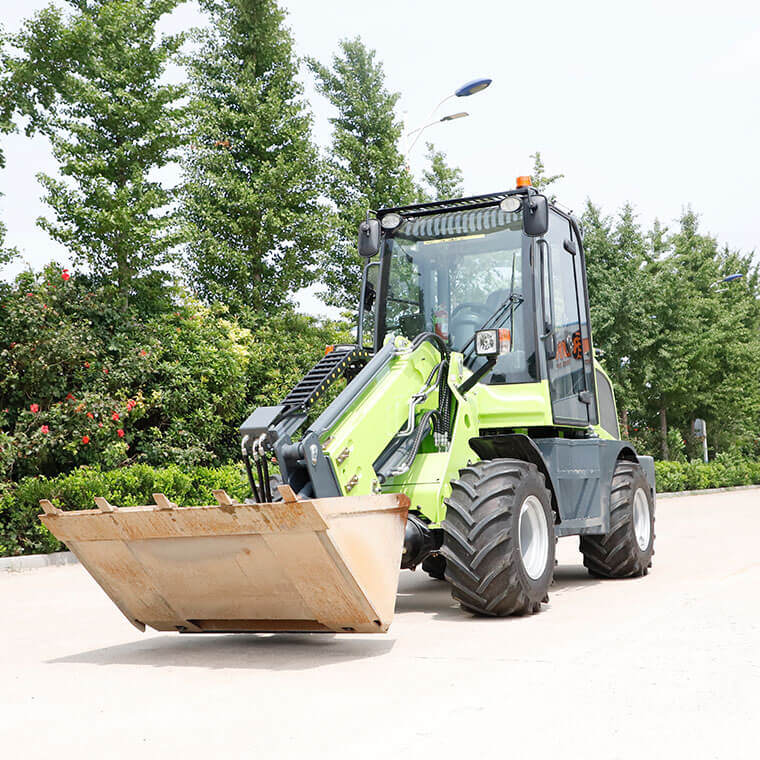

ER Electric Wheel Loader—EREL1200

Specifications | Descriptions | Technical Parameters

0 emission, very friendly to the environment.

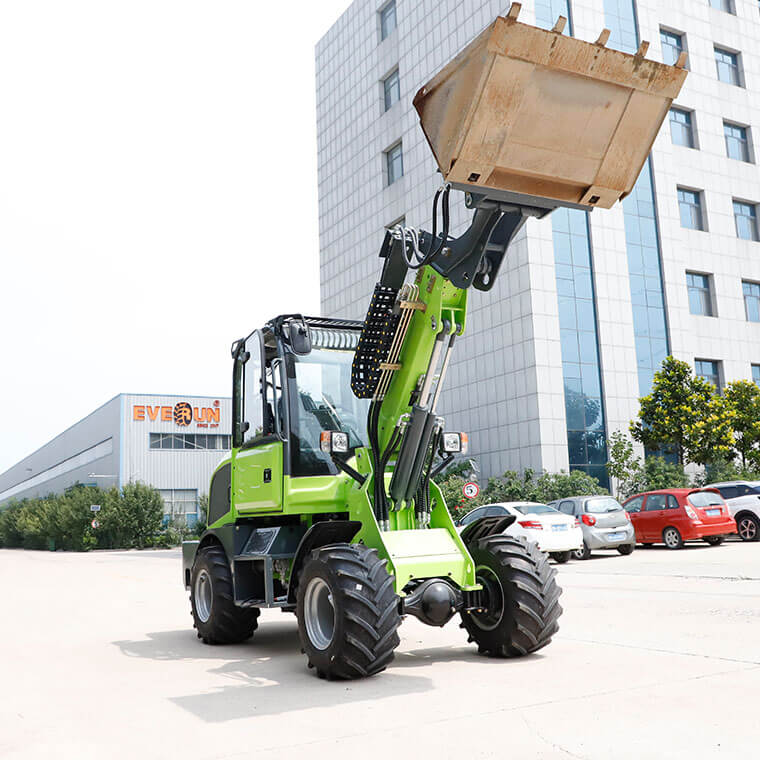

Equipped with a telescopic boom, the maximum lifting height is 3945mm,the rated load is 1200kg
Maintenance-free batteries can save your time.
We have various attachments for you to choose which could meet your different requirements.

Specifications

Max Rated Load

1200kg

Bucket rated capacity

0.38(m)³

Overall Weight

3600kg

Descriptions


Rops & Fops Cabin New Rops & Fops cabin, more safety when you work with our machine. This can better protect the safety of the operator.

Articulated, floating, oscillating structure The keypoint design of the EREL1200 is---- the fantastic floating joint. The machine moves with maximum traction.More suitable for rough roads.

High-quality grease paint Quality Grease coating is also one advantage of Everun machines. Compared with traditional wet oil, grease coating can increase the service life several times and is more effective and environmental friendly.

large selection of Muiti-attachments Customers can choose different attachments according to their needs. One machine can achieve multiple tasks.

Kinds of tires options We also provide a variety of options for tires. Customers can choose different tires according to their preferences or needs.

Different capacity battery option Depending on the application and purpose, you can always choose batteries of different capacity.

Technical Parameters

FEATURE

SIZE / DETAILS

Performance Max Rated Load(kg) 1200
Bucket rated capacity(m)³ 0.38
Maximum dump height(mm) 2705
Secondary loading height 3945
Max. Grade ability 20
Oscillation angle
Overall dimension (L×W×H) (mm) 5190*1600*2500
Bucket width(overall width) 1520
Wheel base(mm) 1220
Min Ground Clearance(mm) 220
Net Weight(kg) 3600
Battery Model No. 3-EVF-200A
Battery capacity 200Ah
No.of battery groups 24
Rated Voltage 72
Working hours(h) 6-8h
Type 31*15.5-15
Type of Steering Hydraulic System Full Hydraulic Steering System
Service Brake Drum Brake
Parking Brake Drum Brake
