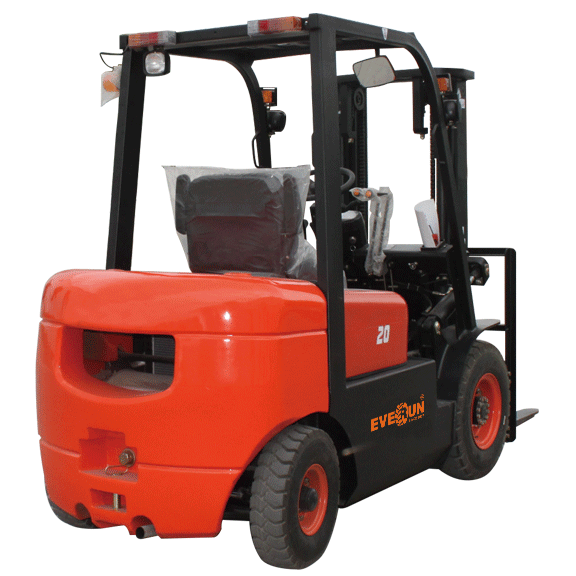

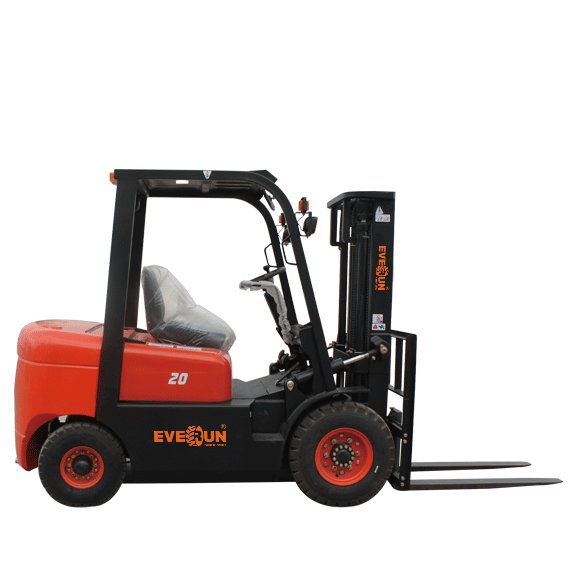

Diesel Forklift—ERDF20

Specifications | Descriptions | Technical Parameters

Everun was starting the wheel loader exporting trade in 2007. Under the help of our customer, Qingdao Everun Machinery Co., Ltd established in the beautiful coastal city Qingdao enjoying convenient transportation access.

Specifications

Rated Capacity

2000kg

Load Center

500mm

Lift Height

3000mm

Descriptions

Everun was starting the wheel loader exporting trade in 2007. Under the help of our customer, Qingdao Everun Machinery Co., Ltd established in the beautiful coastal city Qingdao enjoying convenient transportation access.

Technical Parameters

FEATURE

SIZE / DETAILS

Term No. ERDF20
Rated Capacity 2000kg
Load Center 500mm
Power Type Diesel
Transmission Hydraulic
Lifting Height 3000mm
Free Lifting Height 120mm
Turning Radius 2170mm
Length To Face of Fork 2510mm
Overall Width 1150mm
Mast Lowered Height 2050mm
Mast Extended Height 4200mm
Overall Height(Overhead Guard) 2160mm
Fork Length 1070mm
Fork Width 120mm
Fork Thickness 40mm
Travel Speed(No Load) 8/20km/h
Lifting Speed(Full Load) 400mm/s
Lowering Speed(Full load) 400mm/s
Max.Gradeability (Full load) 20%
Max.Drawbar Pull (Full load) 14000N
Self Weight 3380kg
Engine Model Quanchai490BPG
Voltage/Capacity(20HR) 12/60V/Ah
Rated Output/r.p.m 36.8/2650kW
Rated Torque/r.p.m 156/1700-190N.m
Displacement 2670cc
No. Of Cylinder 4
Rear Overhang 485mm
Wheel Base 1600mm
Front Tread 970mm
Rear Tread 970mm
Front Tire 7.00-12-12PRmm
Rear Tire 6.00-9-10PRmm
Operating Pressure 17.5MPa
