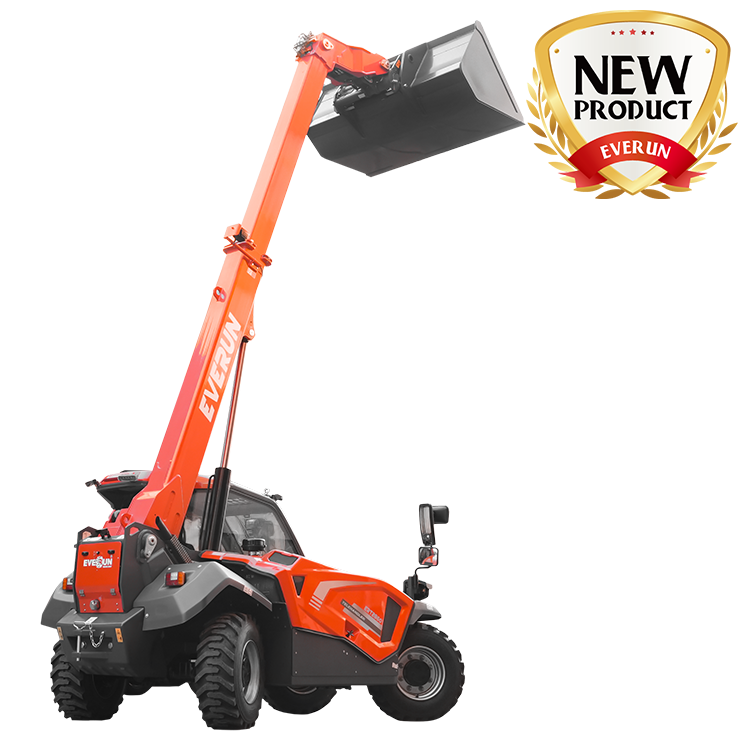

· Equipped with a powerful Kubota V3307 engine
· Danfoss hydrostatic transmission system (HST + 2 axles)
· 4WD + 4WS for excellent maneuverability
· Electric hand brake with electric gear shift
· Comfortable cabin with HD display, backward camera, and luxury interior




Engine Power
74kWOperating Weight
5700kgMax load Capacity
2800kg

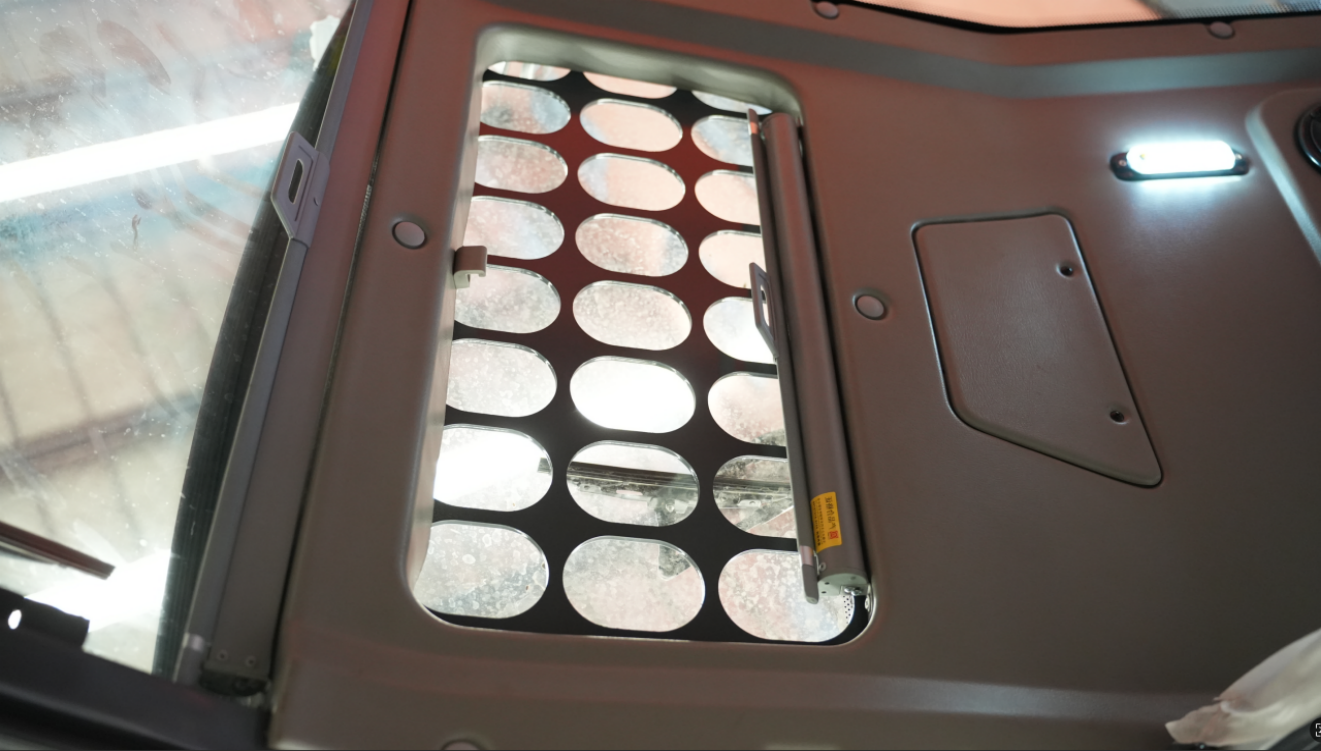

1. Top glass for front window, have a better view to check the front boom work.

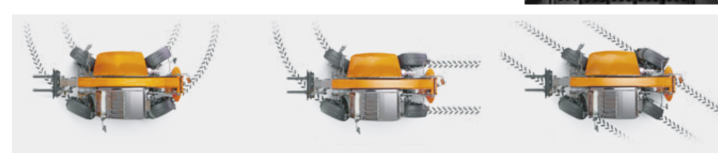

2. Three Modes of Steering Operation

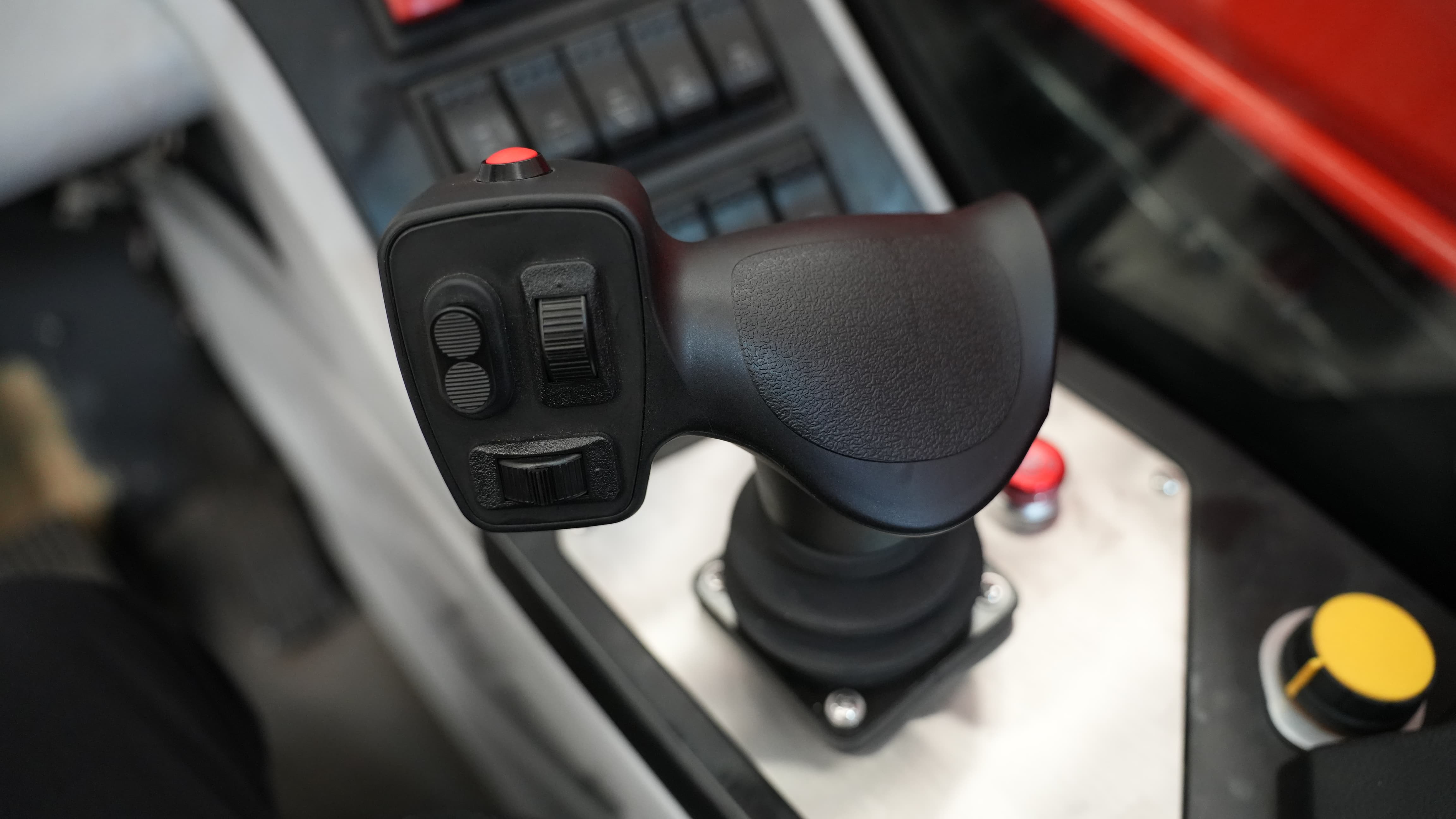

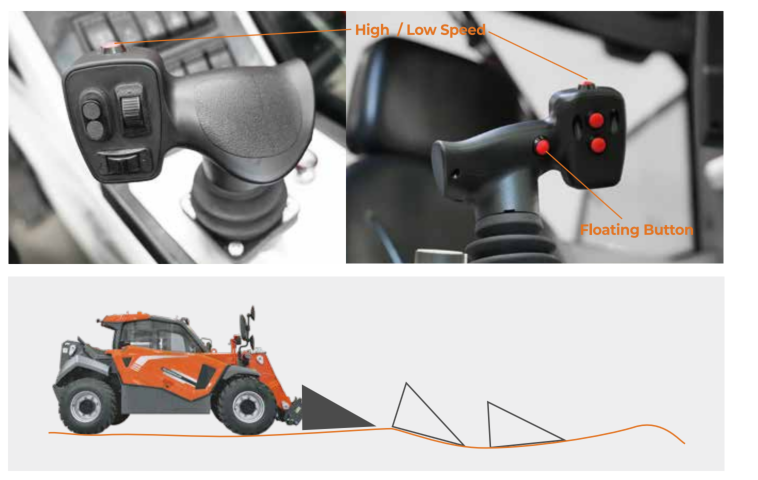

3. Enables precise electric proportional control
4. Delivers flow precisely matched to the load demand, achieving energy efficiency.
5. LS( Load Sensing) system provides precise and predictable control of implements.
Limited-Slip Differential
6. 4WD + 4WS for excellent maneuverability

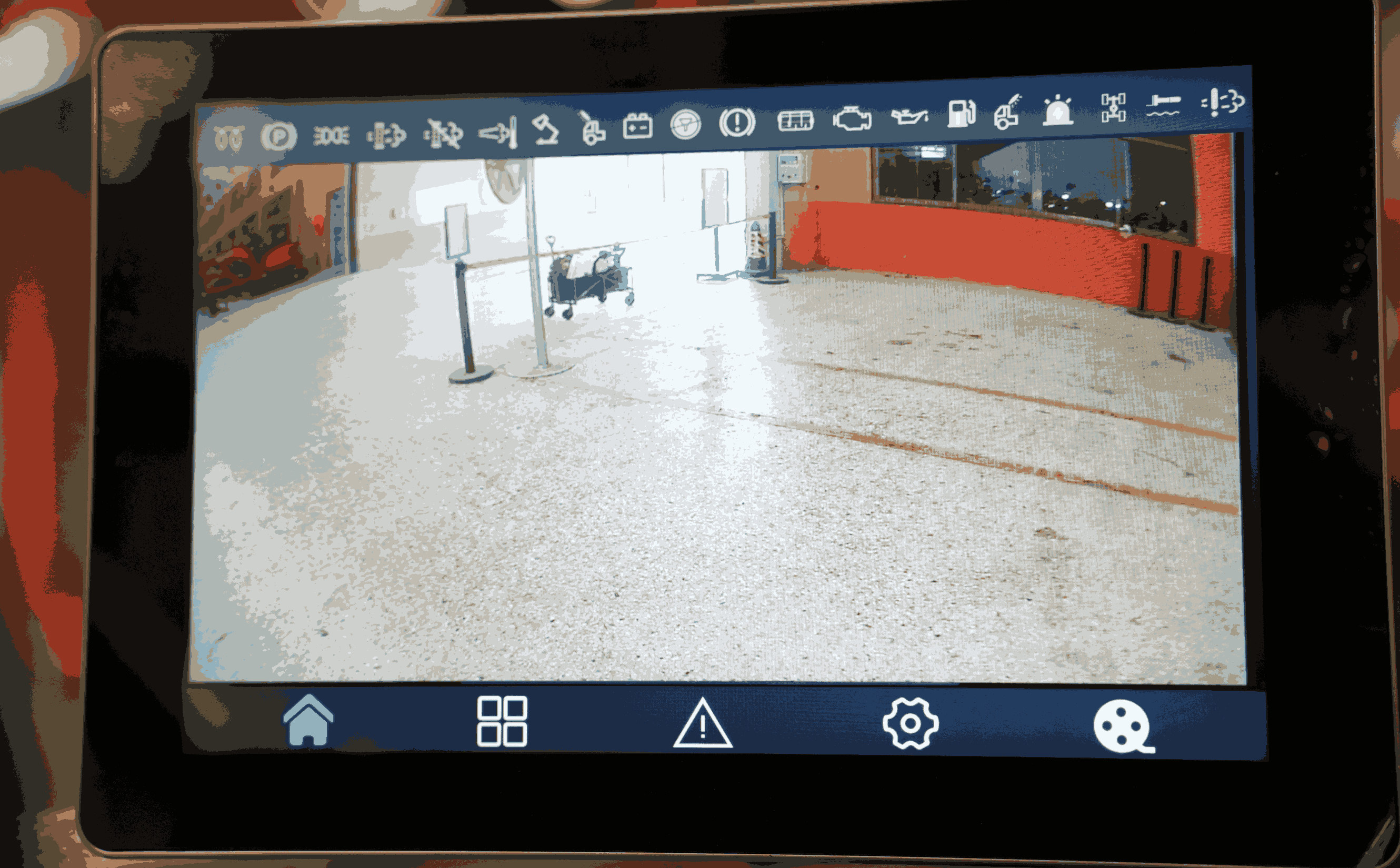

7. Plus the visible monitoring screen, there is no doubt the entire system guarantees the working safety and stability.

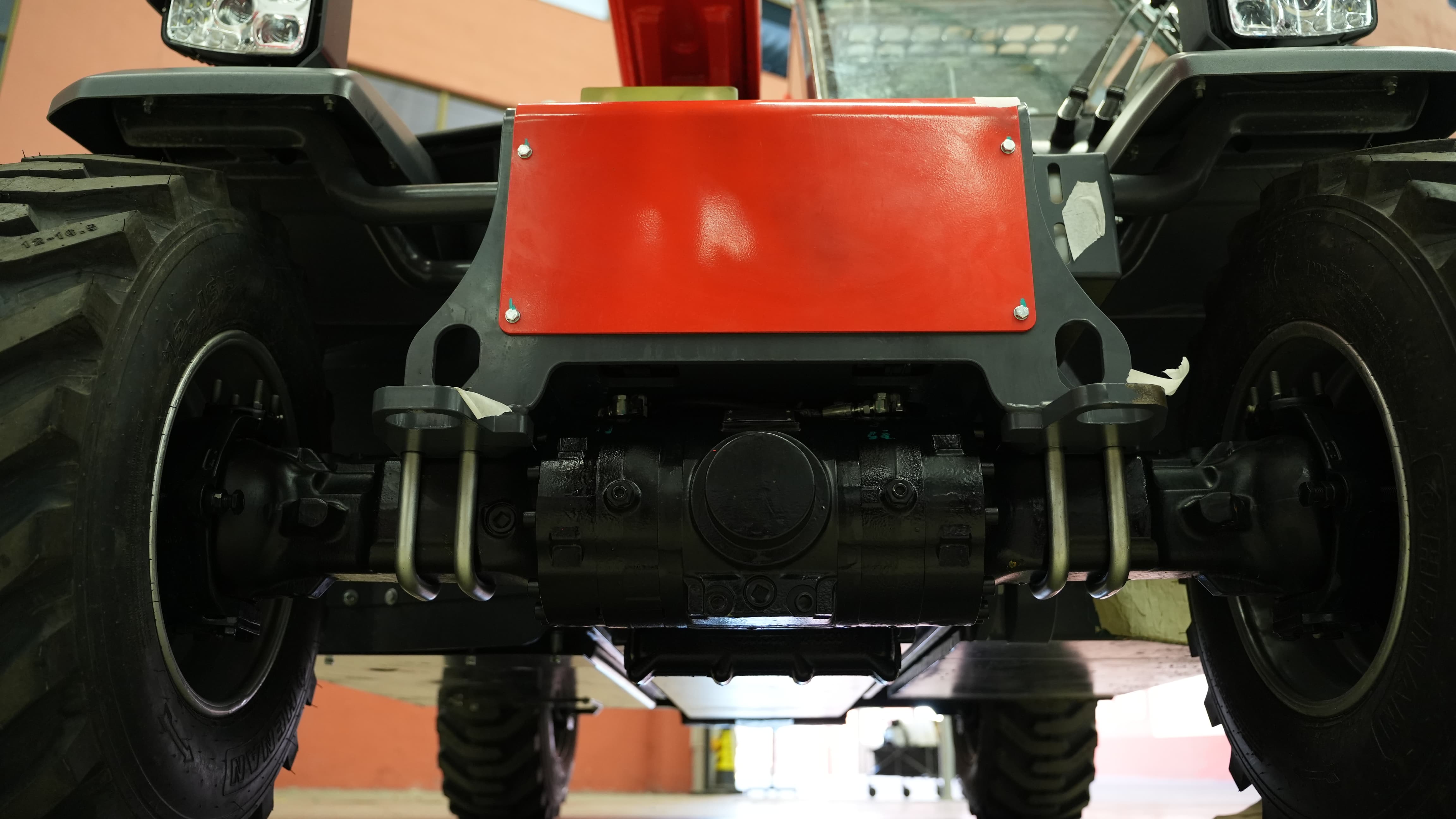

8. Carraro wet brake axles offer excellent braking performance, strong durability, and reliable operation even in harsh working conditions.
9. With overload alarm system, more safe.

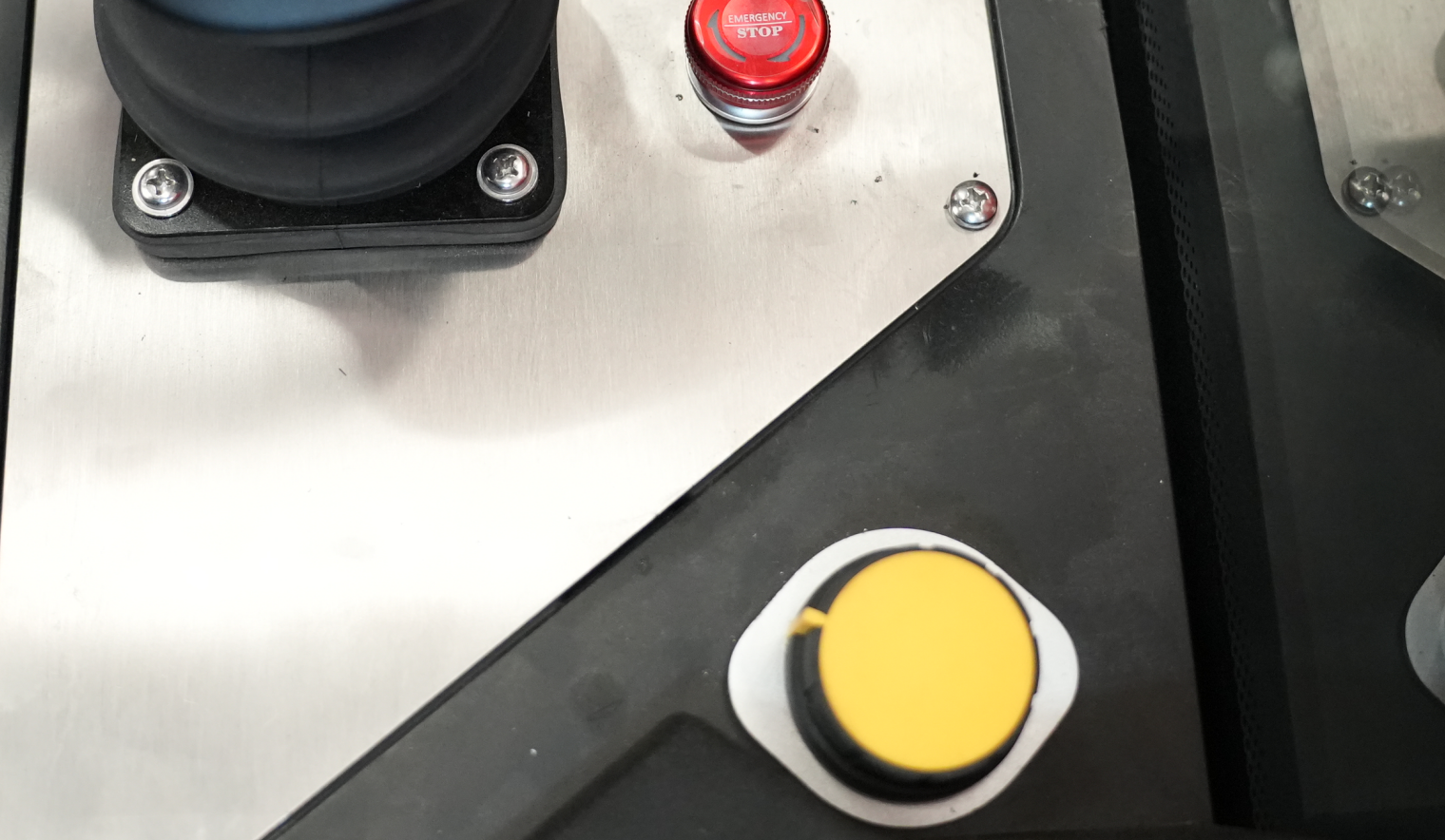

10. The hand throttle offers stable engine speed control.
| Max. Loading Capcity (tipping load) | 2800kg |
| Net Weight | 5700kg |
| Overall Dimension (L×W×H) | 4048×1843×2033mm |
| Max. Lifting Height of shovel pivot pin | 6214mm |
| Wheelbase | 2300mm |
| Min. Turning Radius(Outside) | 3310mm |
| Engine Manufacturer | KUBOTA |
| Engine Model | V3307-TE5AB |
| Displacement | 3331ccm |
| Engine Power | 52.4kW |
| Type of Coolant | Water Cooling |
| Number of Cylinders | 4 |
| Rated Speed | 2600r/min |
| Transmission Type | HST+2 Axles |
| Gear Shift | Electric |
| Max Driving speed | 25km/h |
| Drive Pump Rated Pressure | 400bar |
| Working Pump Rated Flow | 105.6L/min |
| Working Pump Rated Pressure | 250bar |
| Steering Type | 3 types steering |
| Min. Turning Radius(Inner/outer) | 1598/3274 (without forks)mm |
| Service Brake | Wet brake |
| Parking Brake | Electric parking brake |

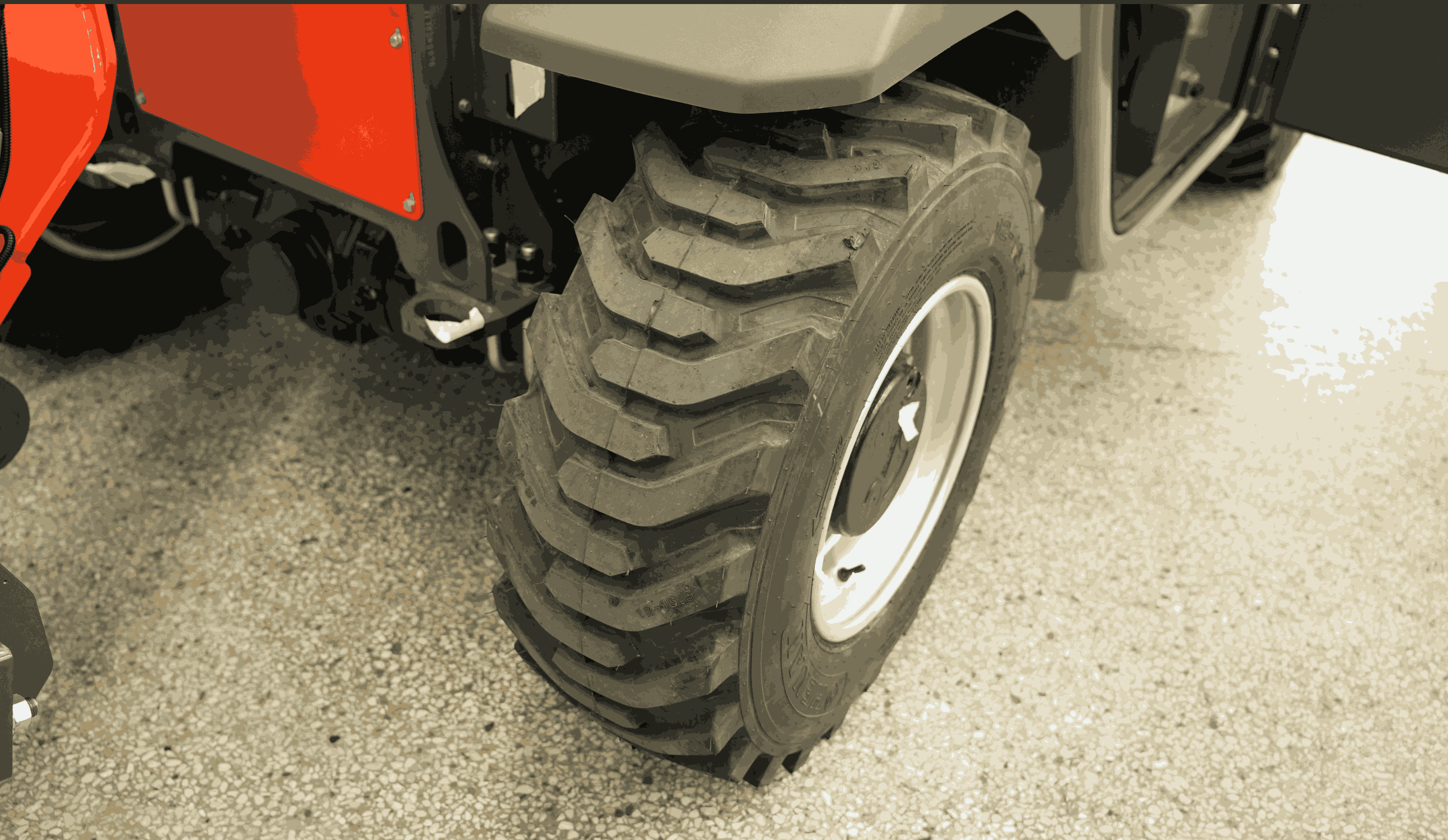

| Tire Specifications | 12-16.5 12PR |
